TSC MH241 Series Manual

7

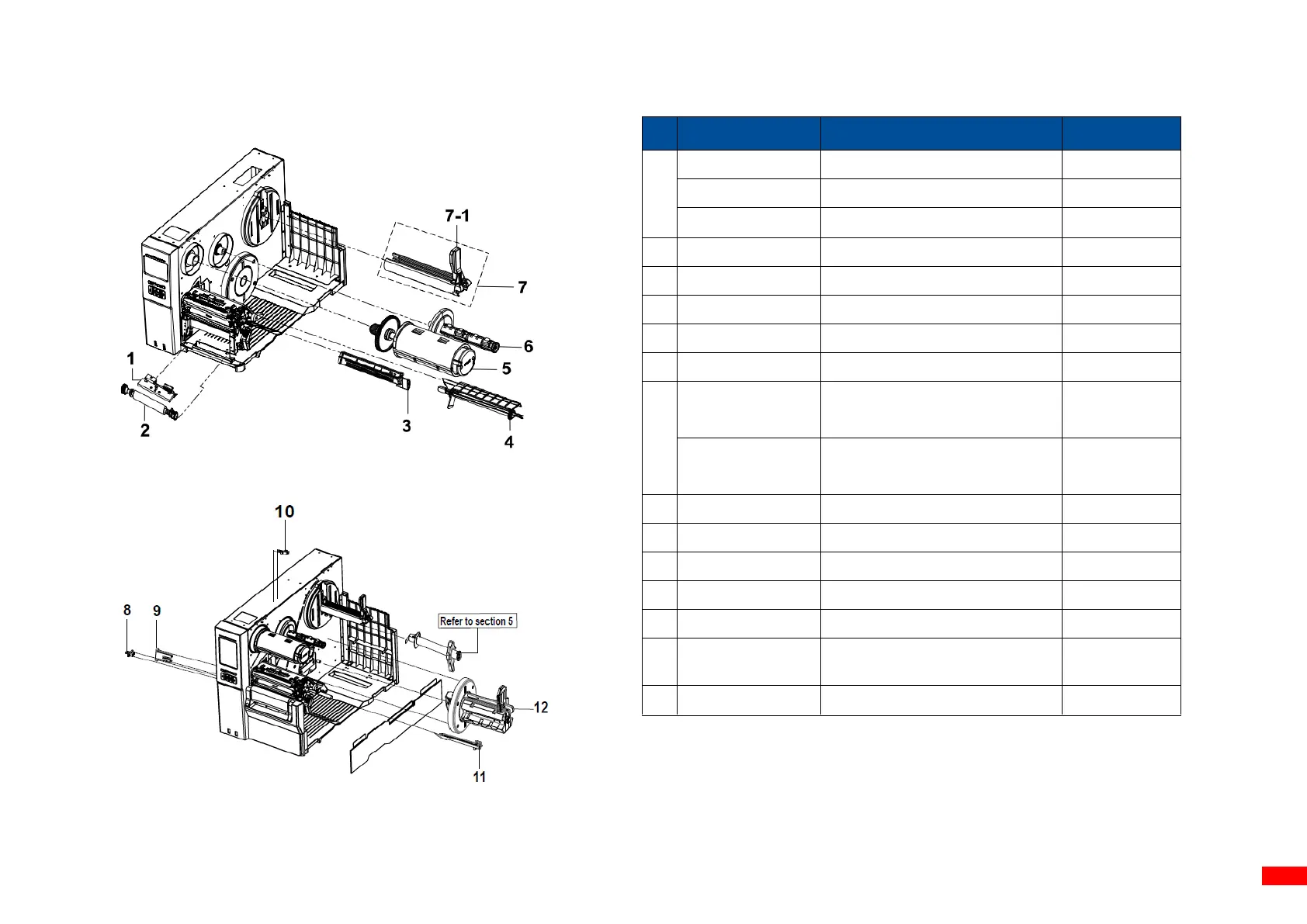

4. Media Side Assemblies-1
NO.
PART NO.
DESCRIPTION
SUGGEST
ATTACH RATE
1
PH-MH241-0001
PRNTHD ASSY, MH241
5%
PH-MH241-0002
PRNTHD ASSY, MH341
5%
PH-MH241-0003
PRNTHD ASSY, MH641
5%
2
SP-MH241-0029
PLATEN ROLLER ASSY
3%
3
SP-MH241-0030
MEDIA SENSOR MODULE ASSY
3%
4
SP-MH241-0031
MEDIA DAMPER ASSY
5
SP-MH241-0032
RIBBON REWIND SPINDLE ASSY
2%
6
SP-MH241-0033
RIBBON SUPPLY SPINDLE ASSY
2%
7
SP-MH241-0034
LABEL SUPPLY SPINDLE
ASSY(MH241/MH241T)
2%
SP-MH241-0035
LABEL SUPPLY SPINDLE ASSY
(MH241P)
2%
7-1
SP-MH241-0056
LABEL ROLL GUARD, MH241
8
SP-MH241-0036
TPH OPEN SENSOR ASSY
3%
9
SP-MH241-0037
RIBBON END SENSOR ASSY
3%
10
SP-MH241-0038
RIBBON ENCODER SENSOR ASSY
3%
11
SP-MH241-0039
LABEL GUIDE MODULE
2%
12
SP-MH241-0040
INTERNAL REWINDER ASSY
(MH241P SERIES)
1%
N/S
SP-MH241-0063
MH241 PRINT HEAD HARNESS CABLE
1%
N/S: Not shown in the image.
