- 71 -
7.3 Setting Ethernet by Diagnostic Tool
The Diagnostic Utility is enclosed in the CD disk \Utilities directory. Users can use Diagnostic Tool to
setup the Ethernet by RS-232, USB and Ethernet interfaces. The following contents will instruct users
how to configure the Ethernet by these three interfaces.
7.3.1 Using USB interface to setup Ethernet interface
1. Connect the printer and computer with USB cable.
2. Turn on the printer power switch.
3. Start the Diagnostic Utility by double clicking on the icon.
4. The Diagnostic Utility default interface setting is USB interface. If USB interface is connected with
printer, no other settings need to be changed in the interface field.

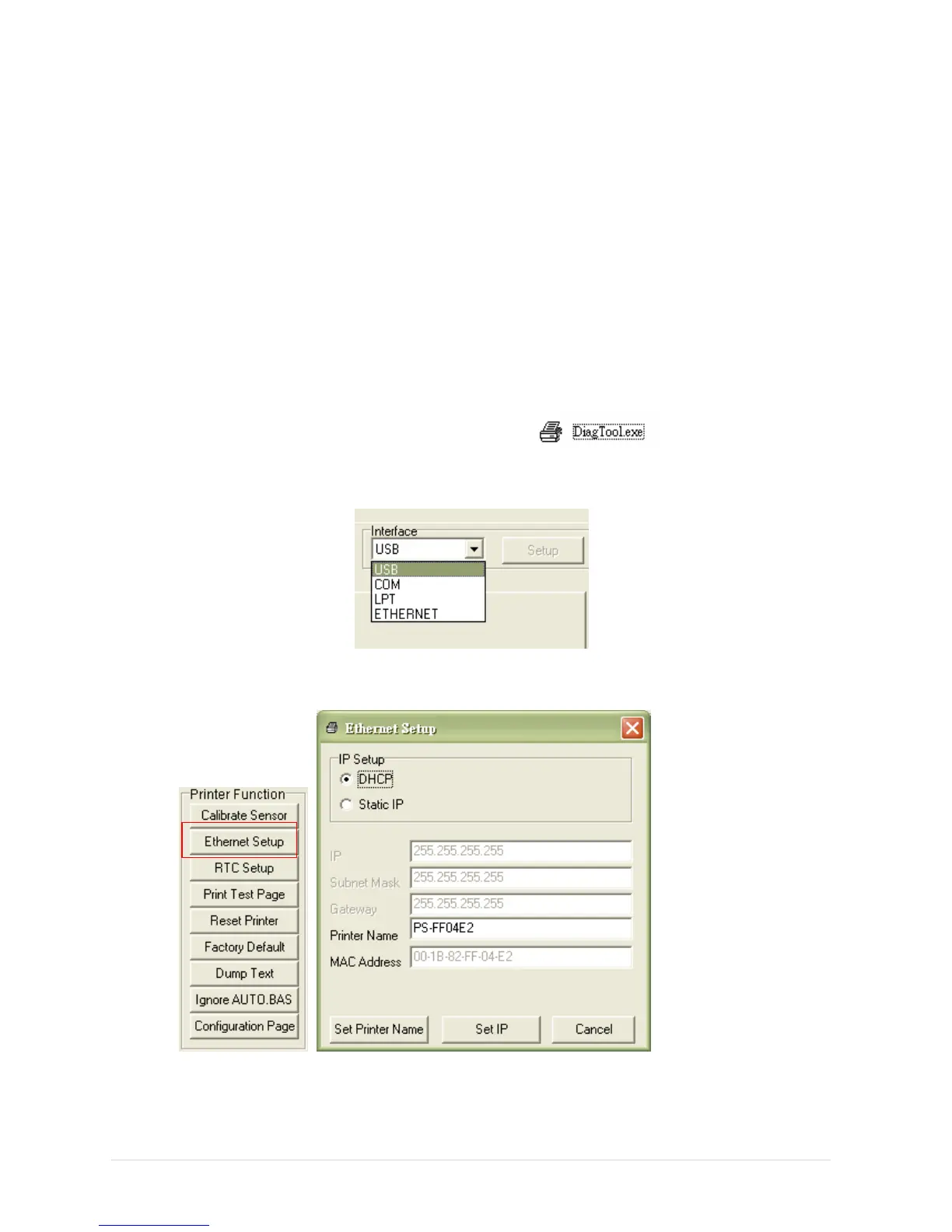

5. Click on the “Ethernet Setup” button from “Printer Function” group in Printer Configuration tab to
setup the IP address, subnet mask and gateway for the on board Ethernet.
To Next Page
