18
3.5 Install External Label Roll Mount

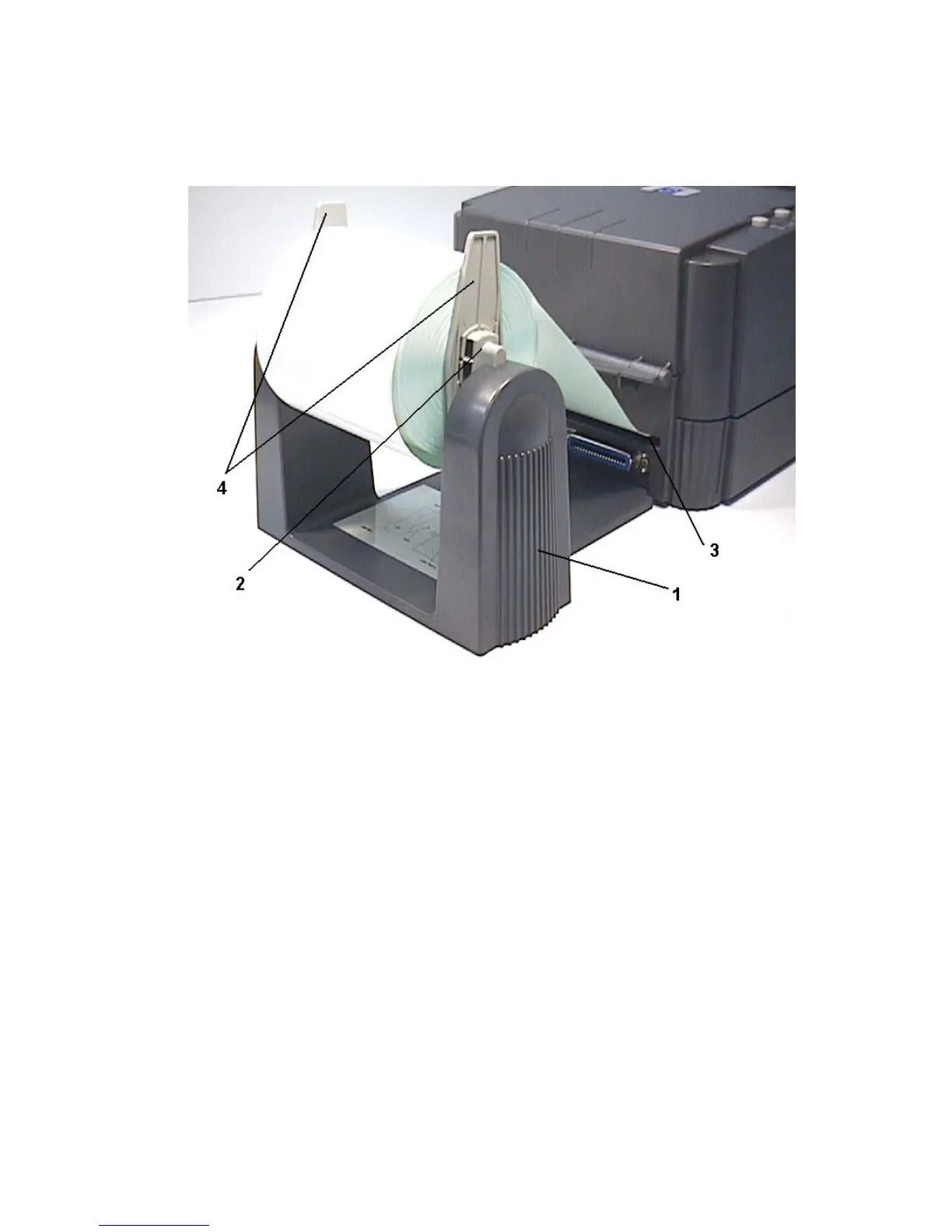

Figure 11. Installation of external label roll mount
1. External Label Roll Mount
2. Label Supply Roll Spindle
3. External Label Feed Opening
4. Fixing Tabs
