The hydraulics are powered with an engine driven hydraulic pump and controlled with a
position control lever mounted beside the driver.

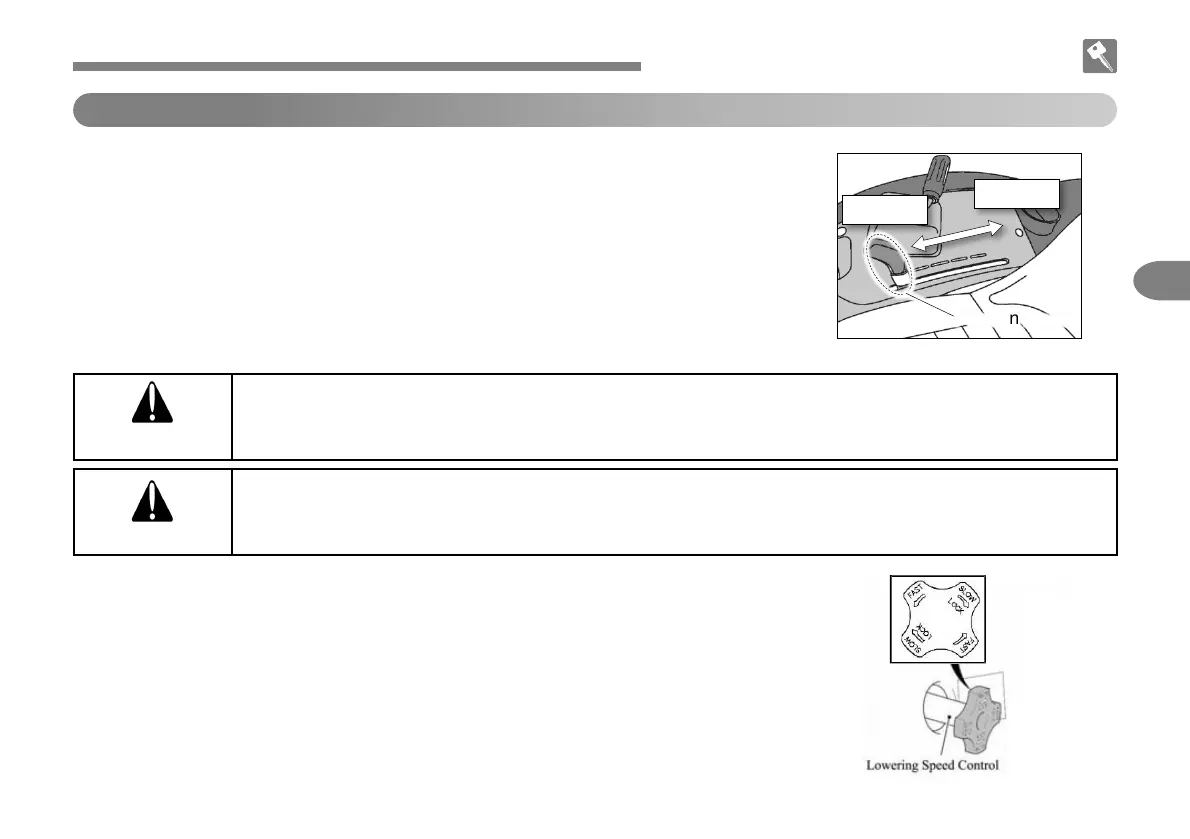

■ Position Lever
The position lever is used to raise or lower the implement mounted to the three point hitch.
To raise the hitch, move the lever to the rear. To lower the hitch, move the lever forward.
Adjustable stops are provided for use whenever it is desirable to return the hitch control
lever to the same operating position.
CAUTION
After finishing the work, always lower the implement to the ground and switch off the engine. Set the parking
brake to avoid injuries and accidents.
CAUTION
When working with the 3-point linkage, keep well clear of the operating radius of the lift arms and any
attached implement.
This is to avoid the risk of injury in the case of incorrect maneuvers.
3. HYDRAULICS
3
3-15
DESCRIPTION OF OPERATING SYSTEM
Position Lever
RAISE
LOWER
■ Lowering Speed Control Knob for the 3 Point Hitch
This knob controls the downward speed of the three point linkage of hydraulic and is located
below the seat.
To slow the downward speed, turn the knob clockwise.
To increase the downward speed, turn the knob counter clock-wise.
To lock, turn the knob clockwise;
Do not over tighten the knob.
