MAX-M10S-Integration manual
4.2 Packaging
The MAX-M10S receivers are delivered as hermetically sealed, reeled tapes in order to enable
efficient production, production lot set-up and tear-down. For more information, see the u-blox
packaging information reference [4].
4.2.1 Reels
MAX-M10S modules are deliverable in quantities of 500 pieces on a reel. They are shipped on reel
type B, as specified in the u-blox Packaging information reference [4].
4.2.2 Tapes

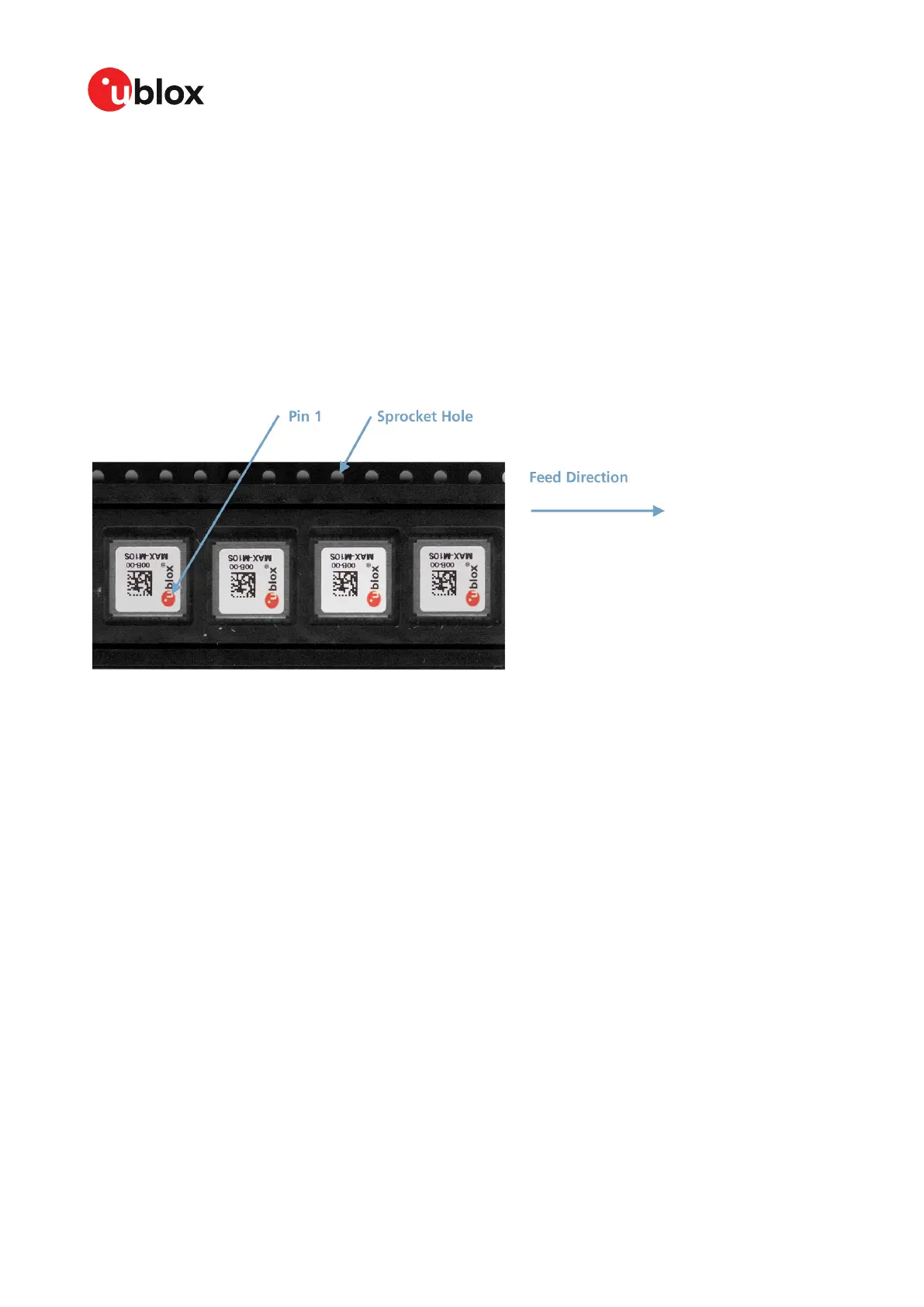

Figure 32 shows the feed direction and illustrates the orientation of the components on the tape.
Figure 32: Orientation of the components on the tape
Pin 1 is indicated by the the u-blox logo on the module sticker. The feed direction into the pick and
place pick-up is from the reel (located on the left of the figure) towards right, and the tape is fed to
the right.
The dimensions of the tape are specified in Figure 33 (measurements in mm).
UBX-20053088 - R03

4 Product handling Page 74 of 89
C1-Public
