UTD2000 Series User Manual
19

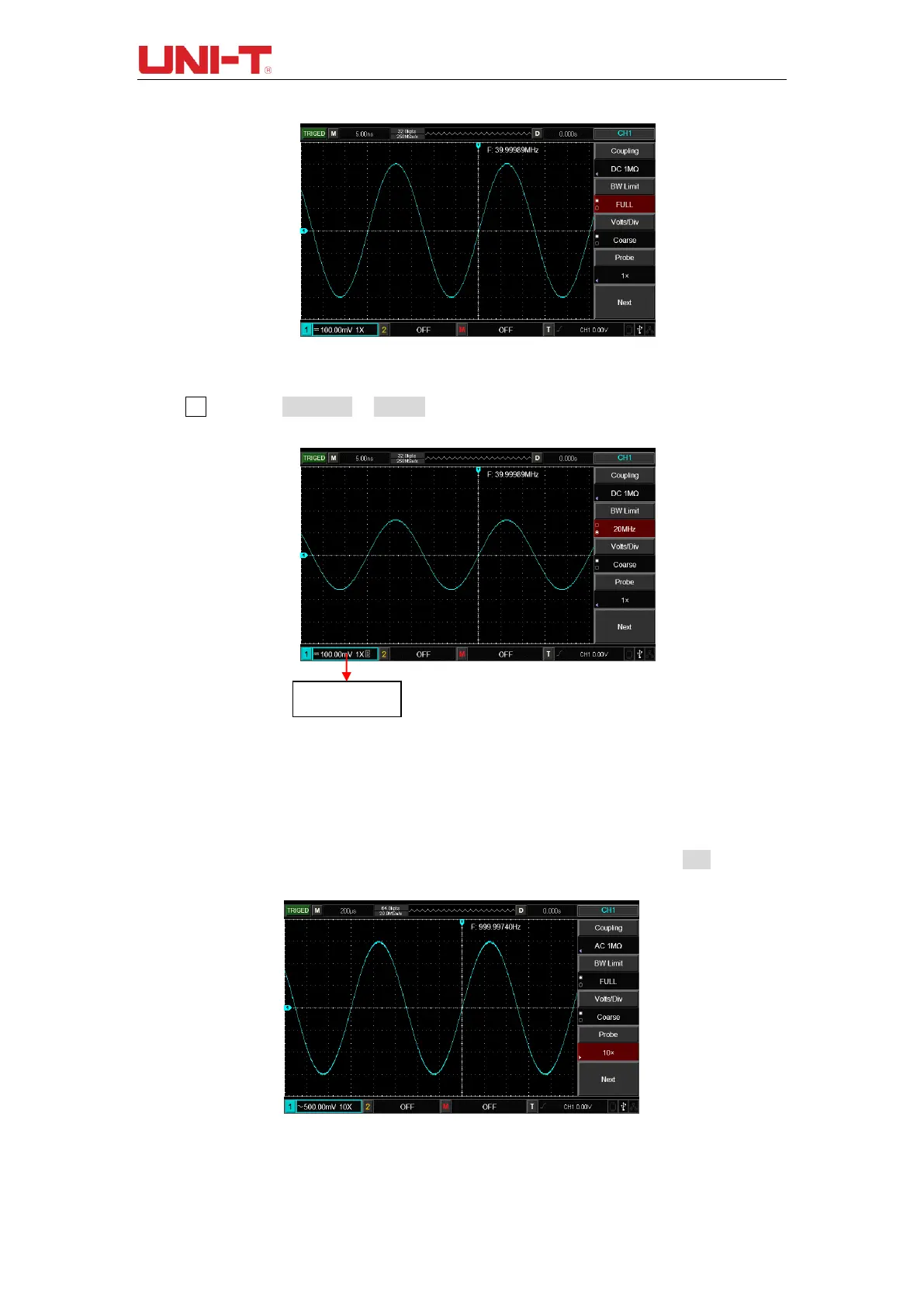

Figure 2-4 Waveform Display When Setting Bandwidth Limit as OFF
Press F2 to set the BW Limit as 20MHz, the noises or high-frequency component over
20MHz in measured signal shall be attenuated, waveform display shown in figure below.
Figure 2-5 Waveform Display When Setting Bandwidth throttling as ON
2.3 Setting probe Rate
In order to cooperate with attenuation coefficient setting of probe, it is required to set the
probe attenuation coefficient in channel function menu. If the probe attenuation coefficient
is 10:1, the probe coefficient in channel function menu shall be set to be 10× and vice-
versa.
Figure 2-6 Probe Attenuation Coefficient Setting in Channel Menu
2.4 Vertical Volts/Div adjustment setting
BW Limit Mark
