UNI-T UTL8500 Series User Manual

UTL8500 Series User Manual
15
Note: Please read through the content of safety information in preface carefully before
using the load.
Warning: Please make sure that the power supply voltage is consistent with the supply
voltage before turning on the power, otherwise the instrument will be burnt out. Please
be sure to connect the main power plug to a power socket with ground protection. Do
not use a wiring board without ground protection.
3.2 Introduction of Screen Display
After entering into the test mode, the LCD screen will be divided into several areas to
display different information.

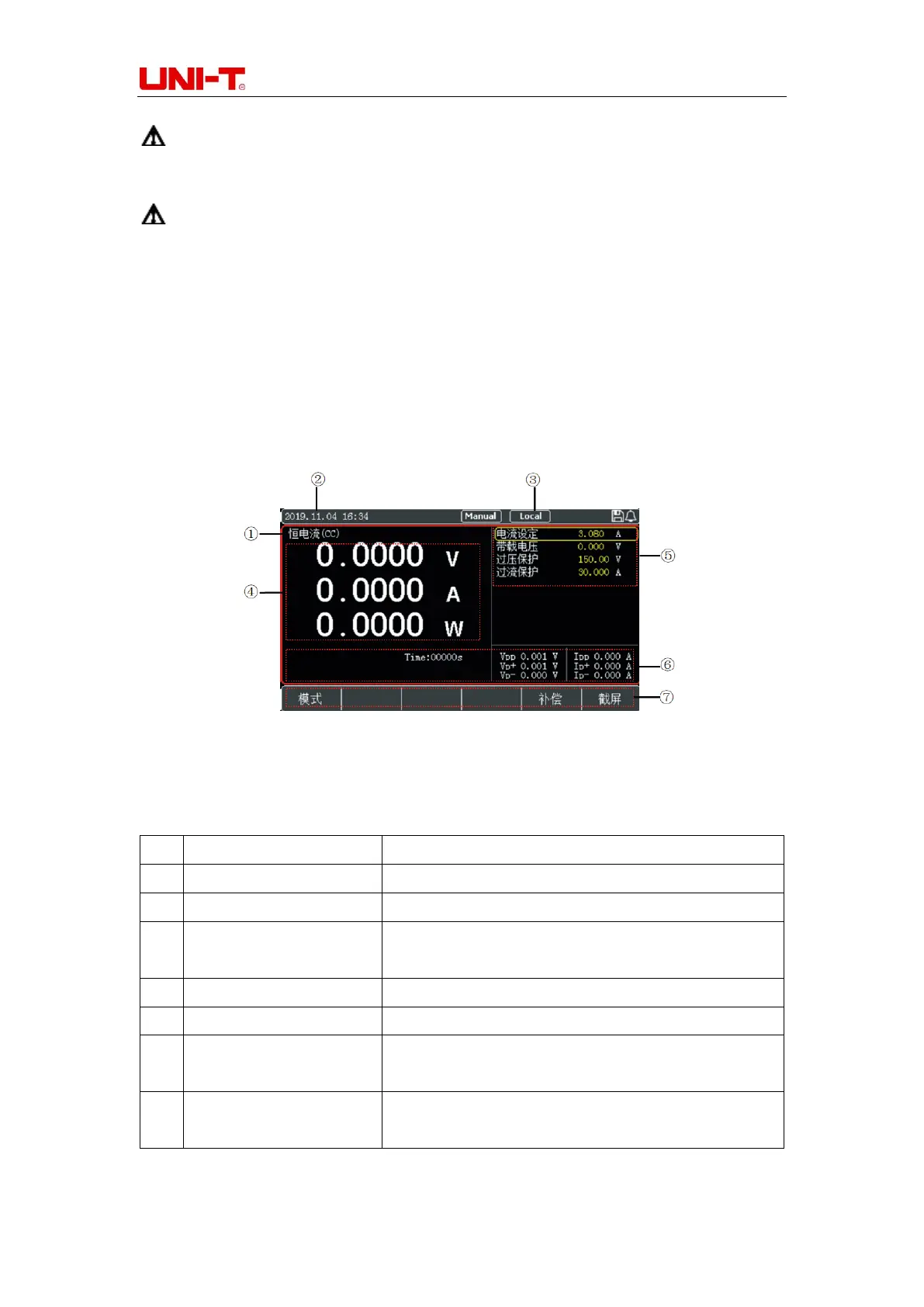

Figure 3-2 Interface of Measurement
3.2.1 Display of Measurement Interface
No.
Items
Description of Function
1
Mode
Current Measurement Mode or Status
2
Time
Current System Time
3
System Icon
Display the Status of U Disk, Remote Compensation,
Short-Circuit Test and Trigger Function
4
Parameters
Real-Time Voltage, Current and Power
5
Set Value
Mode Setting Information, Voltage and Current Value
6
Other Parameters
Real-Time Running Time, Other Processes and
Result Data
7
Mode Selection (Soft
Keyboard)
Select the Work Mode and Operate the
Corresponding Functions at the Bottom of the Screen
