* SW4 On Position
3/L1NO
Relay NC
7/GND
UBio-X Face Premium
Relay
Relay NO
Relay COM
Coil Voltage : 12V/24V
Relay Socket
26

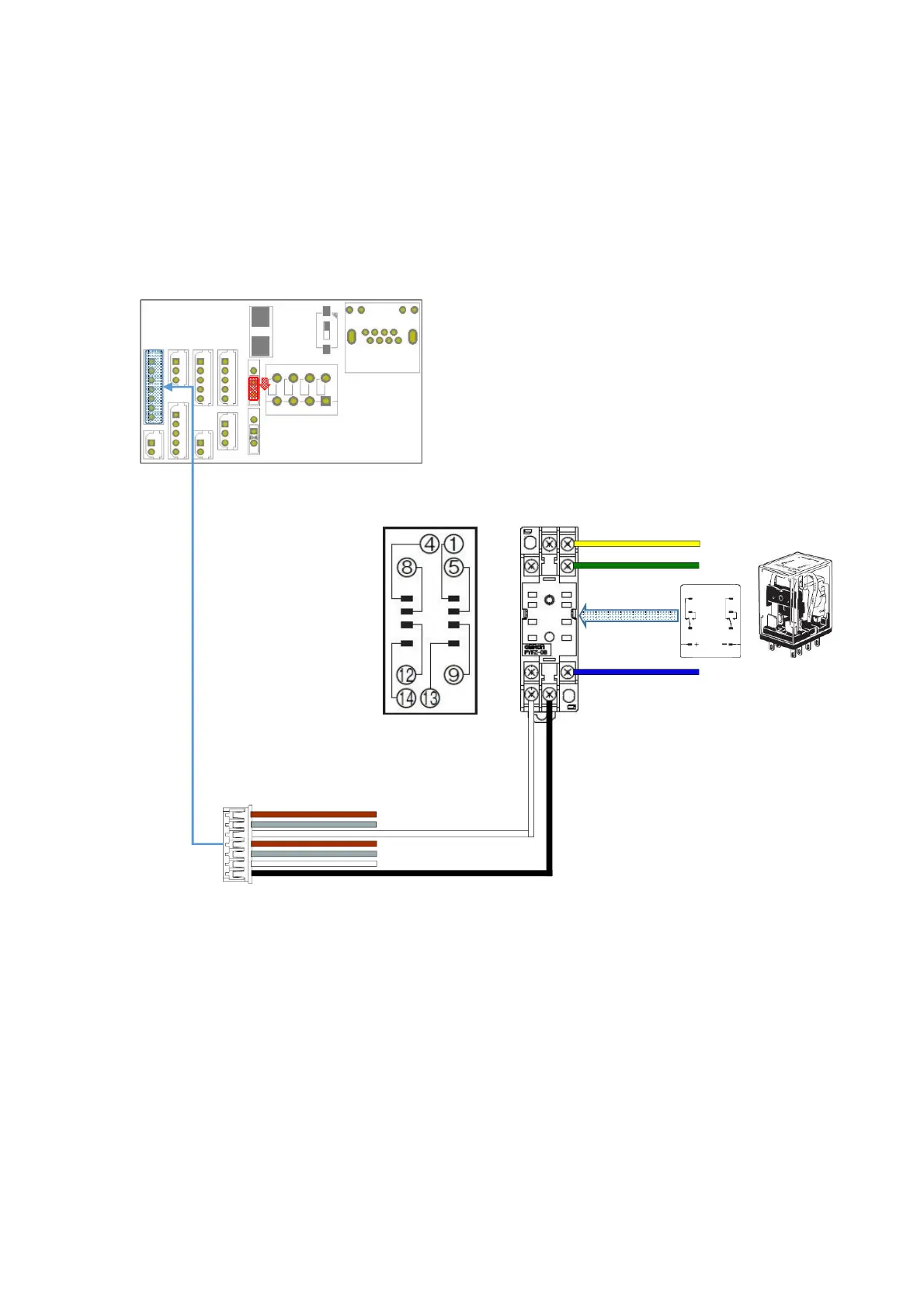

External Relay Connection
* The external relay connection for application to turnstile Gate, etc. is as shown in
the figure below.
* Depending on the UBio-X Face Premium input voltage, select and apply the relay
coil voltage either 12V relay or 24V relay.
