Union Community UBio-X Face Premium Installation Guide

Name Function Descriptions
State Input(5pin) Connect Inside Open/ Door Lock State Input Cable
Wiegand
In/Out(5pin)
Connect the Wiegand Input / Output Cable
RS-232(3pin) Reserved for R&D only
Lock Output(7pin) Connect the Lock Cable
Motor Lock(2pin) Connect the Motor Lock Cable
RS-232(3(5)pin)
Connector the RS-232 Cable for Barcode Reader or Receipt
Printer for Meal
5V Output(2pin) Connect the 5V power output for peripheral devices
FUSE Main Power FUSE
RS-485 Termination
Resistor Set SW
Set the RS-485 Termination Resistor
Ethernet Connect the Ethernet Cable
Input Power/RS-
485(4pin)
Connect the 15/24V Power Adapter & RS-485 Cable
Lock Power Set SW Set whether to supply power to the Lock
Warning Lamp(3pin) Connect the Warning Light Cable
Thermal Image
Camera(5pin)
Connect the Thermal Image Camera Interface Cable
Fingerprint
Sensor(5pin)
Connect the Fingerprint Sensor Interface Cable
Input Power/RS-485(4pin)
Lock Power Set SW
FUSE
RS-485 Termination
Resistor Set SW
Lock Output(7pin)
RS-232(3pin)
Warning Lamp(3pin)
Ethernet
Thermal Image
Camera(5pin)
Wiegand(5pin)
State Input(5pin)
Motor Lock(2pin)
RS-232(3(5)pin)
5V Output(2pin)
Fingerprint Sensor(5pin)
4

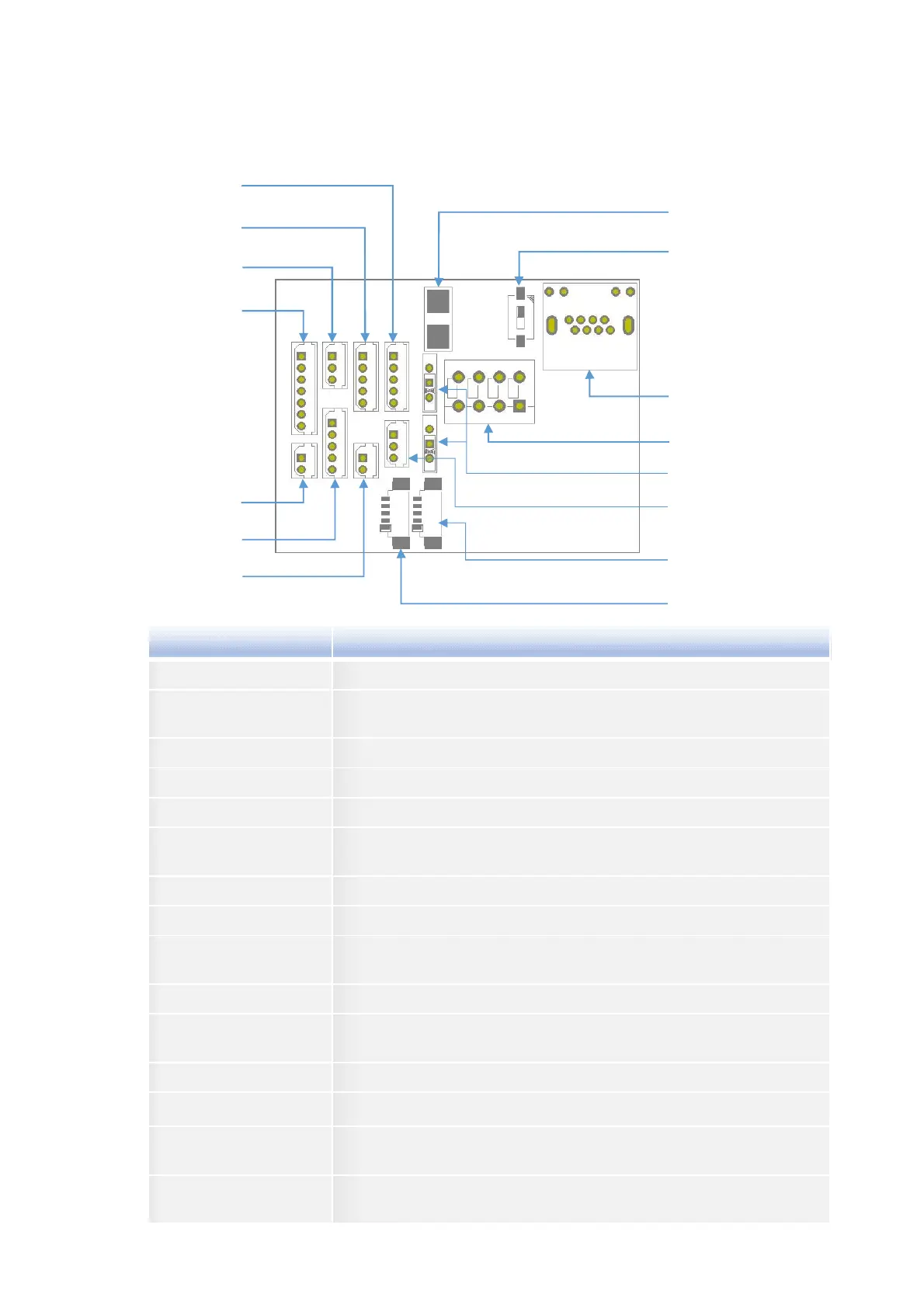

Rear Part Name & Functions
