UBio-X Face Premium User Guide 45
UNIONCOMMUNITY Co., Ltd.
Address: 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,
Seoul, Korea (zip code: 05836)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr

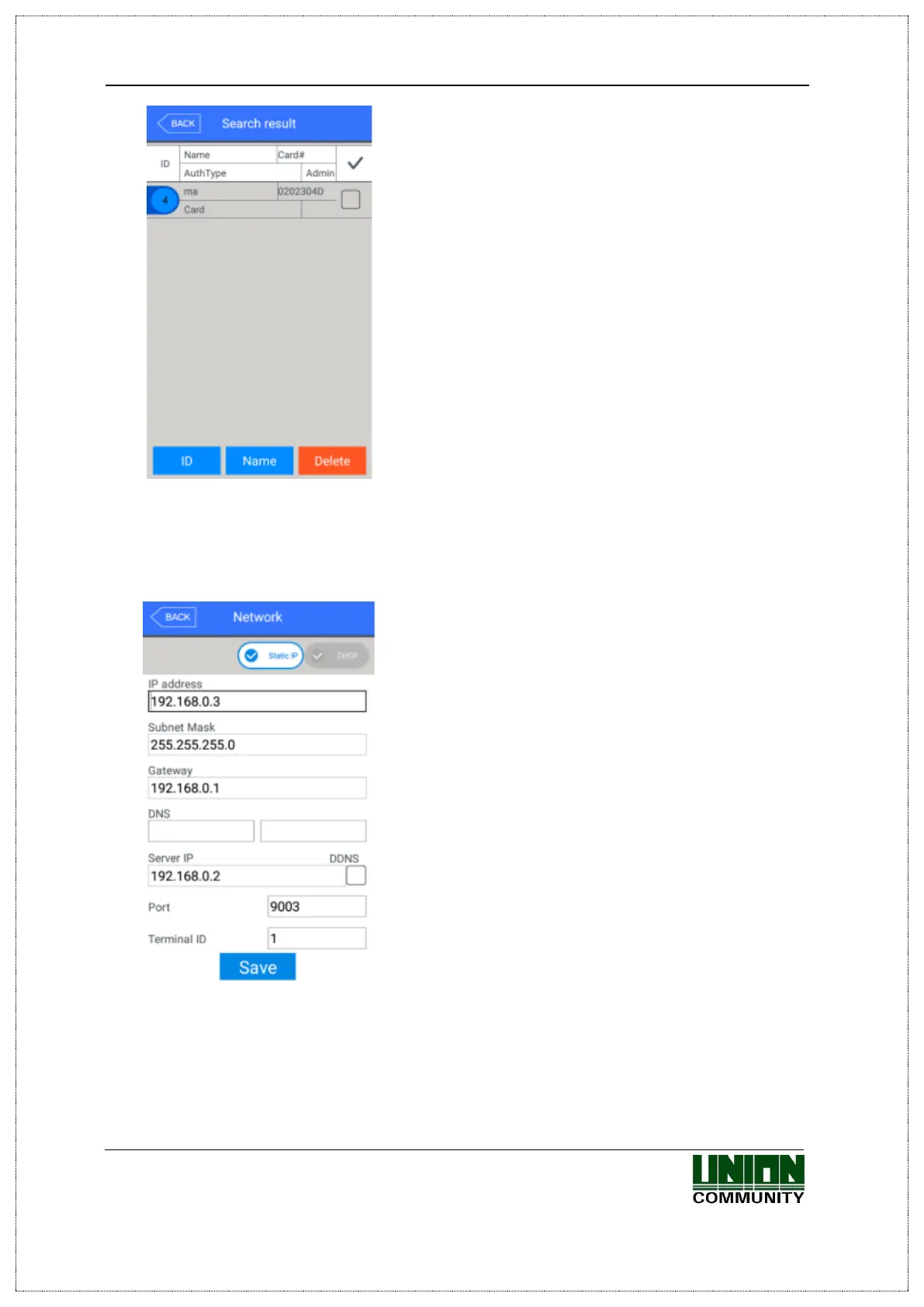

▶ [Name] : If you input the user name by clicking
[Name] button, the registered user list including
the characters is shown.
If you click [BACK] button in this window, you can
move to the ‘3.3. User management’ menu.
Ex) If you search ‘m’, all the users including ‘m’
are searched as the left picture.
3.4. Network setting
If you select [Network] in the main menu, the following window appears.
▶Basic setting: Same with the window at the left side.
Select the method [Static IP] if the static IP is
allocated from the connected network, and select
[DHCP] if the IP is allocated from the DHCP server in
the connected network.
If you selected [Static IP], set the IP address,
subnet mask, and gateway. And if you selected
[DHCP], you don’t have to set them.
In [Server IP Address], enter the server's IP
address.
However, if you are using DDNS provided by us, you
must check DDNS□ to enter the information you
received, and if your device is a [Static IP], you must
enter at least one DNS server address.
▶[Port] : The basic port value of the authentication server is ‘9003’, and if you change
the value, you should change the server program with the same value, so be cautious.
▶[Terminal ID] : : It is unique ID used by the terminal to distinguish the terminals and
the default value is ‘1’. It should be the same with the ID of the terminal registered,
and the characters can be up to 9 digits.
