Unitech MS340B User Manual
4
of 1
of 1 rating
67 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
6
© 2015 unitech Electronics Co., Ltd.
All rights reserved.
unitech is a registered trademar
k of unitech Electronics Co.,Ltd

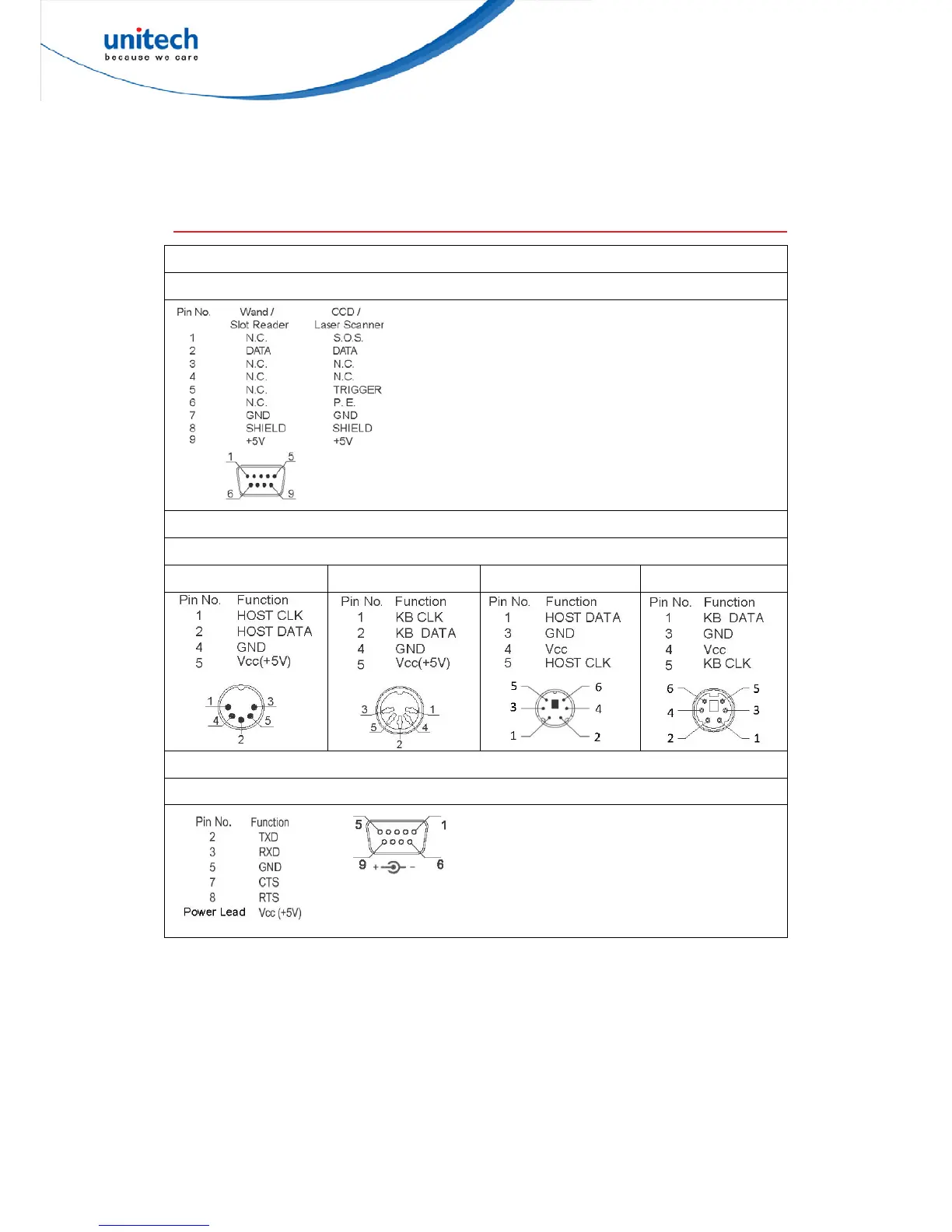

1.5 Pin
Assignment
A. Input Port for Mini Decoder
DB 9 Male
B. Output Port
1. PC Keyboard Output
DIN 5 Male
DIN 5 Female
MiniDIN 6 Male
MiniDIN 6 Female
2. RS232 Output
D
B
9
F
e
m
a
l
e
19
