Unitech MS910 User Manual

31
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
 Tel: + 886 2 89121122  Fax: +886 2 89121810  website: www.ute.com

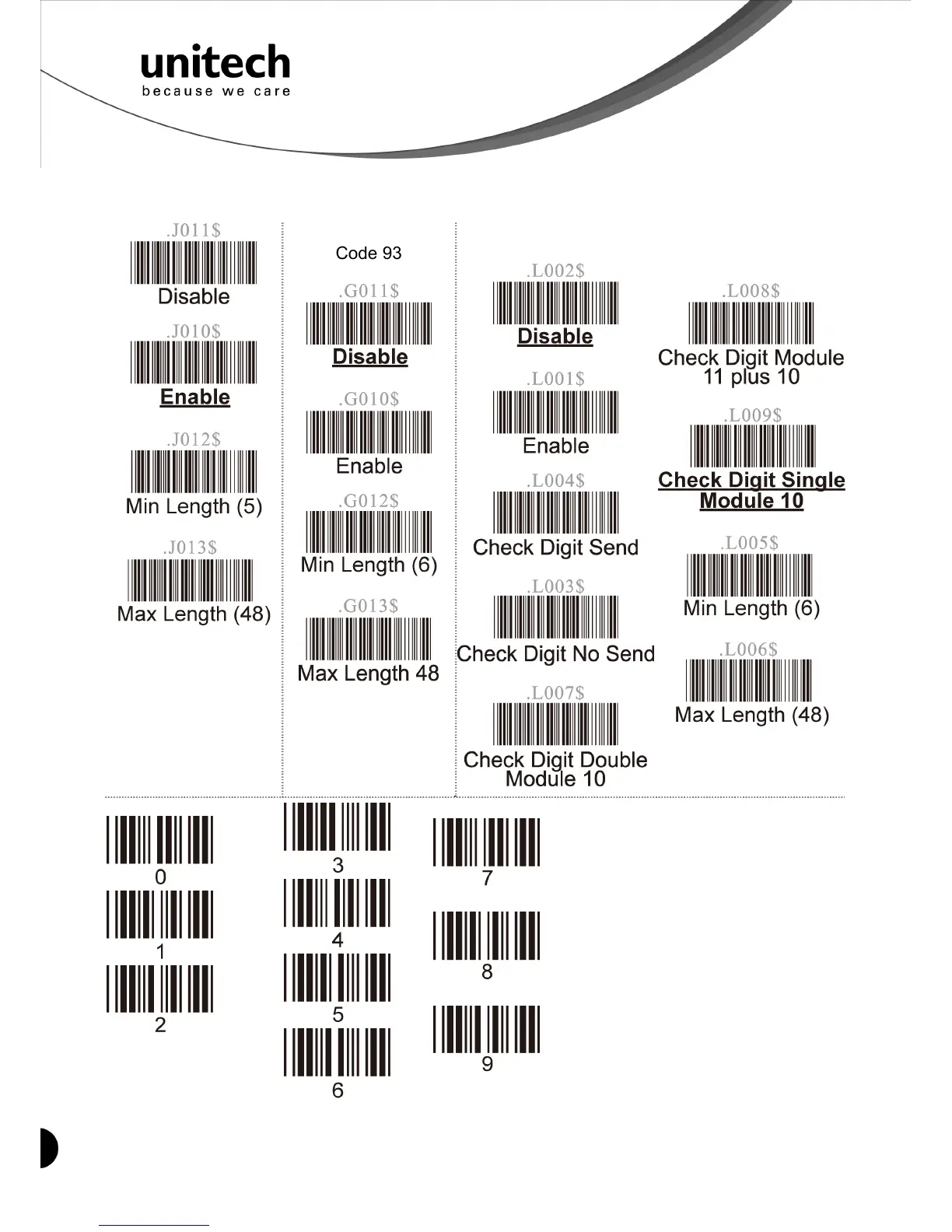

Code 128/ Code 93 / MSI Code Group 8
Code 128
Code 93
MSI / Plessey Code
SETTING PROCEDURE
MIN / MAX LENGTH
STEP 1 - Scan: MIN LENGTH/ MAX LENGTH
STEP 2 - Scan: Two digits from Appendix.
STEP 3 - Scan: MIN LENGTH/ MAX LENGTH
Please note that when Min Length and / or Max Length
are enabled, the scanner will only read bar codes that
fall into those length parameters. Bar codes shorter or
longer than specified will not be read. The default
lengths for these are indicated in parentheses under the
Min and Max bar codes for each symbology.

Unitech MS910 Specifications

General

Type	Handheld bar code reader
Wavelength	625 nm
Sensor type	CCD / CMOS
Scanner type	1D/2D
Read rate (max)	240 reads/s
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), MSI, Plessey, Telepen, U.P.C.
2D (matrix & stacked) barcodes supported	Compact Matrix Code, Data Matrix
Wireless range	10 m
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Certification	CE, FCC ClassB
Product color	Black, Blue
LED indicators	Yes
Housing material	Acrylonitrile butadiene styrene (ABS)
Cables included	USB
Battery voltage	3.7 V
Power consumption	150 mA
Power source type	Battery
Number of reads per charge	5000
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	65 mm
Width	24 mm
Height	18 mm
Weight	24.6 g
