Ensure there is enough space for cables and sufficient air circulation around the Control Box.
A minimum of 50 mm space around the air intake and outlets is recommended, and consideration
should be made to avoid re-circulating air.
For more information about the heat dissipation, see 8.3 Control Unit Heat Dissipationon page27.

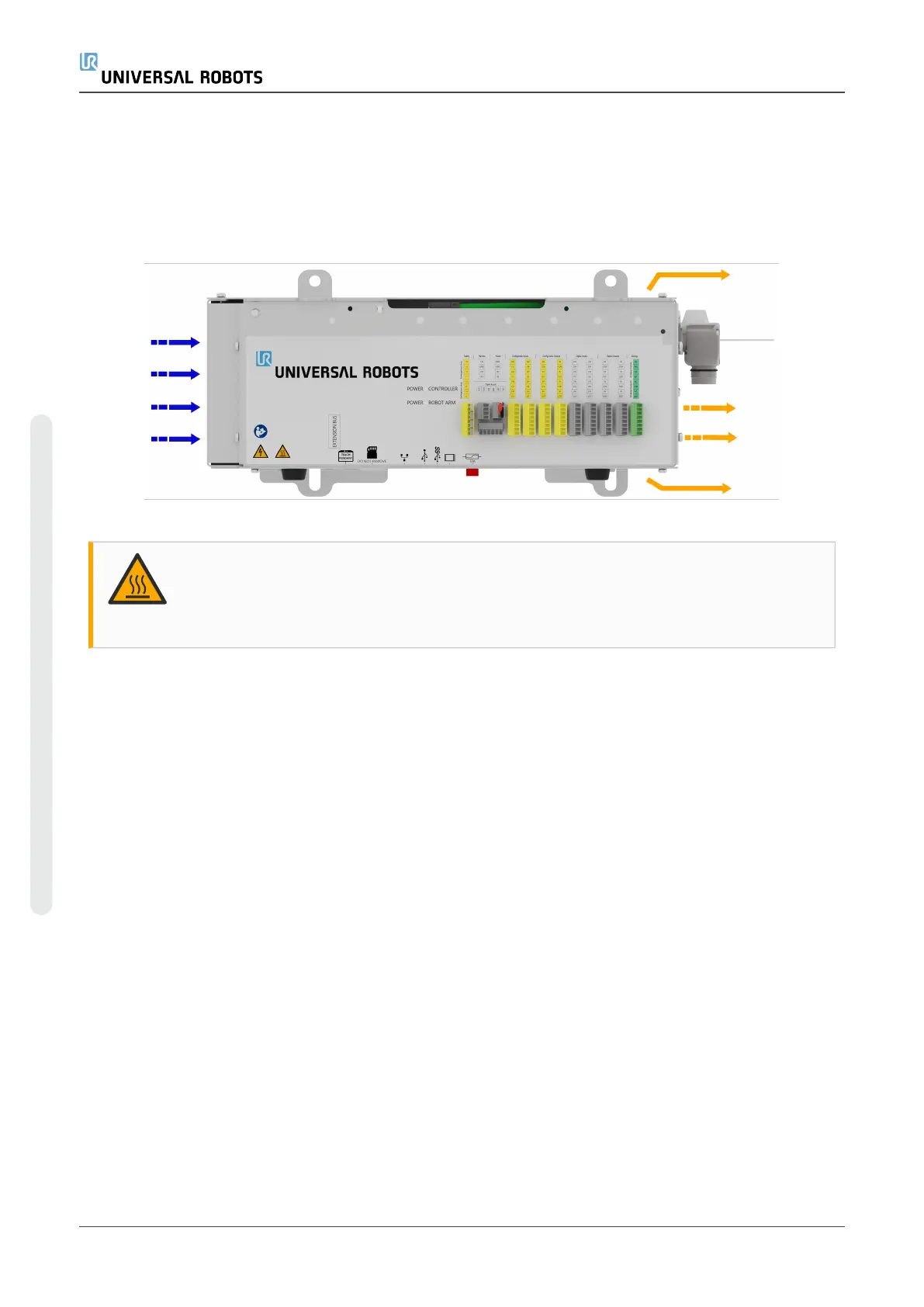

The following illustration shows the airflow.
WARNING: HOT SURFACE
Insufficient airflow, or re-circulating warm air, can cause the OEM Control Box to
overheat and shut down.
6.2.1. Grounding
The OEM Control Box casing is electrically connected to the ground pin of the power source
connector. Any conductive mounting surface must also be connected to the ground.
OEM Control Box Installation Guide
Copyright © 2019–2024 by UniversalRobotsA/S. All rights reserved.
