Univex 6509 User Manual

6509

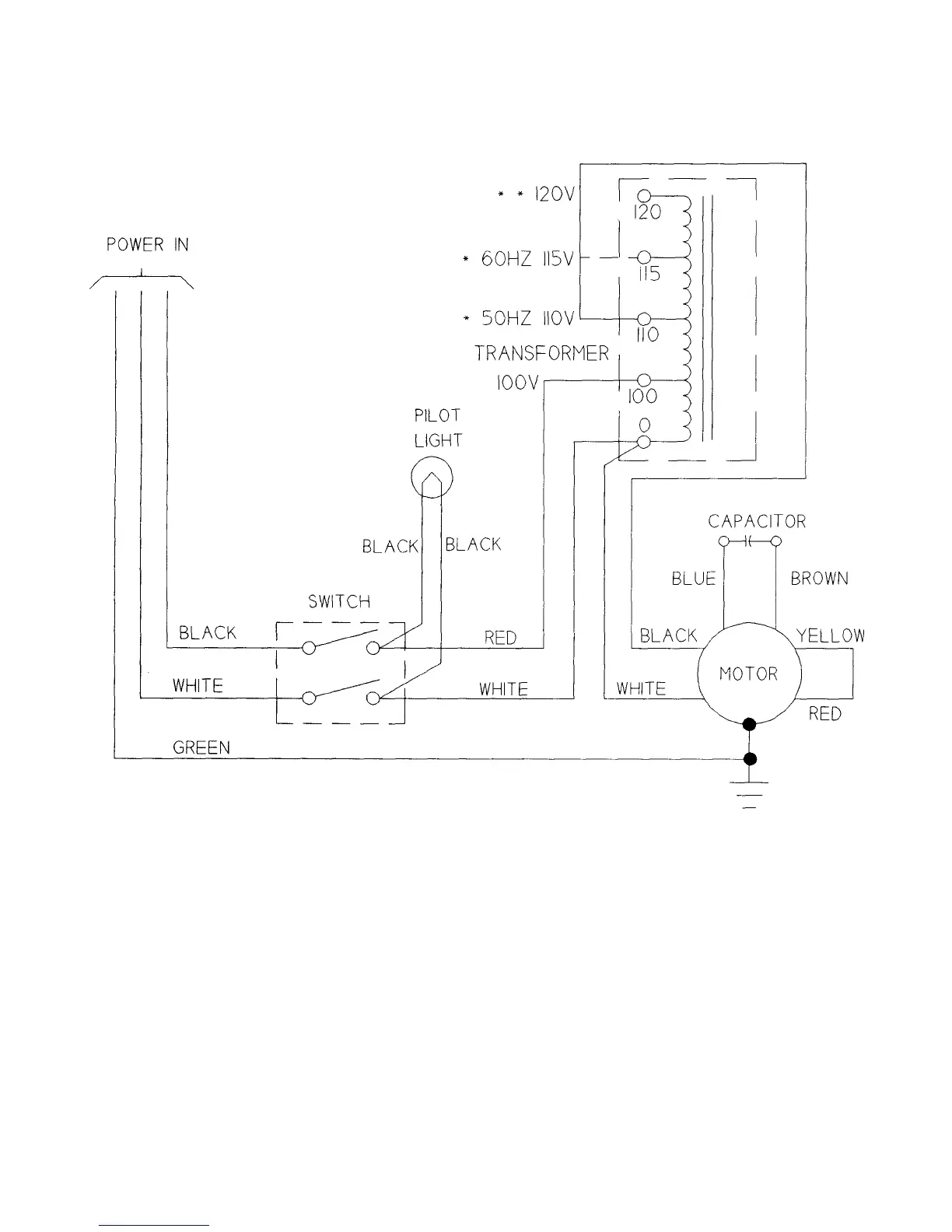

WIRING DIAGRAM
MODEL 6509, 100V, 50/60HZ, 1PH
FIGURE 6B
* CAUTION: Installations with 50HZ electrical supplies should have black motor lead connected to 110V output terminal ONLY.
Connection to higher voltage outputs could cause motor failure. The transformer has been wired at the factory for 50HZ operation at
110V output. If you have 60HZ electrical supply the black motor lead can be switched to 115V output terminal for optimal slicer
performance.
* * The black motor lead should ONLY be connected to 120V output when the supply voltage is consistently at 90V or less (50 or
60HZ).
IMPORTANT
Warning: Before making electrical connections, check the specifications on the data plate to assure they agree with those of your
electrical service.
Whenever cleaning or maintenance is being performed, DISCONNECT electrical cord.
PAGE 25
