Operation
8 Operating instructions ecoTEC plus 0020134822_01
4
4 Operation
4.1 Overview of the controls
1234
5

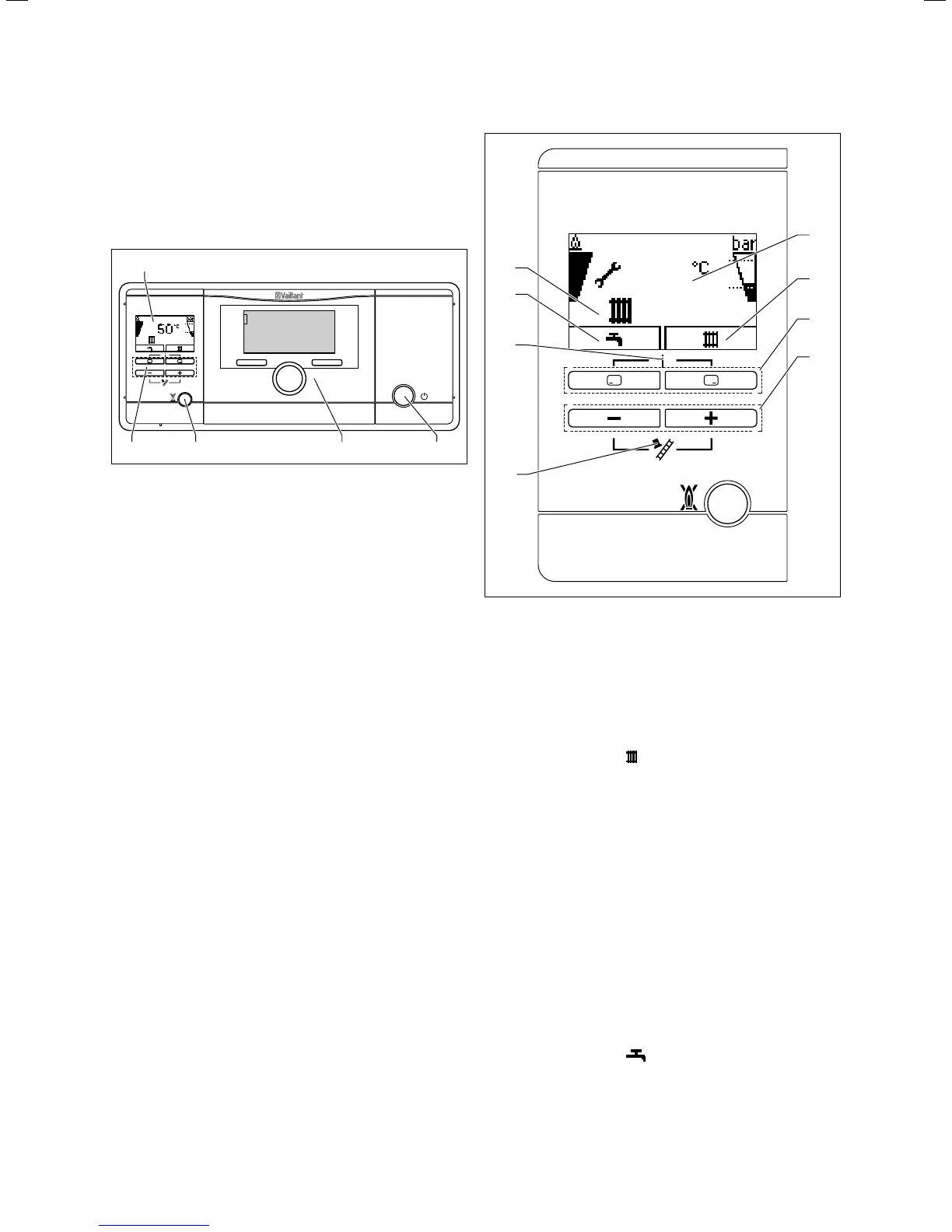

4.1 ecoTEC plus controls
1 On/off button for switching the boiler on or off
2 Controller (accessory)
The Digital Information and Analysis System
consists of:
3 Fault clearance key to clear certain faults
4 Operating buttons
5 Display
4.2 Digital Information and Analysis System
(DIA)
The ecoTEC plus boiler is equipped with a Digital Informa-
tion and Analysis System (DIA system). This consists of a
display showing symbols and plain text, along with 5 opera-
tion buttons. This system provides information on the oper-
ating status of your boiler and helps you deal with prob-
lems.
The display lights up,
– if you switch the boiler on or
– if you press a button for the DIA system when it is
switched on. At first, pressing this button does not trig-
ger any other function.
The light automatically switches off after one minute if you
do not press any button.
50
F. 0 1
1
2
3
4
8
7
6
5
4.2 DIA system with possible symbol displays
1 Display indicating the current heating flow tempera-
ture, the filling pressure of the heating installation,
the operating mode, a fault code or other additional
information in plain text
2 Display of the current configuration of the right-hand
selector button (after switching on the boiler and in
the basic display:
= heating temperature)
3 Left and right-hand selector buttons
Left-hand selector button: "Process water" for
selecting and calling up the water temperature.
Right-hand selector button: "Heating mode" for
s
electing and calling up information, such as the
heating temperature and water pressure in the
heating circuit, for example
4 Minus and plus button
5 Maximum output mode (for chimney sweeps only)
6 Access to the menu for additional information
7 Display of the current configuration of the left-hand
selector button (after switching on the boiler and in
the basic display:
= hot water temperature set-
ting)
8 Display of the symbols for the active operating status
