Vanderbilt CD30 Codoor User Manual

Mounting
13
Vanderbilt International (IRL) Ltd.
05.2016

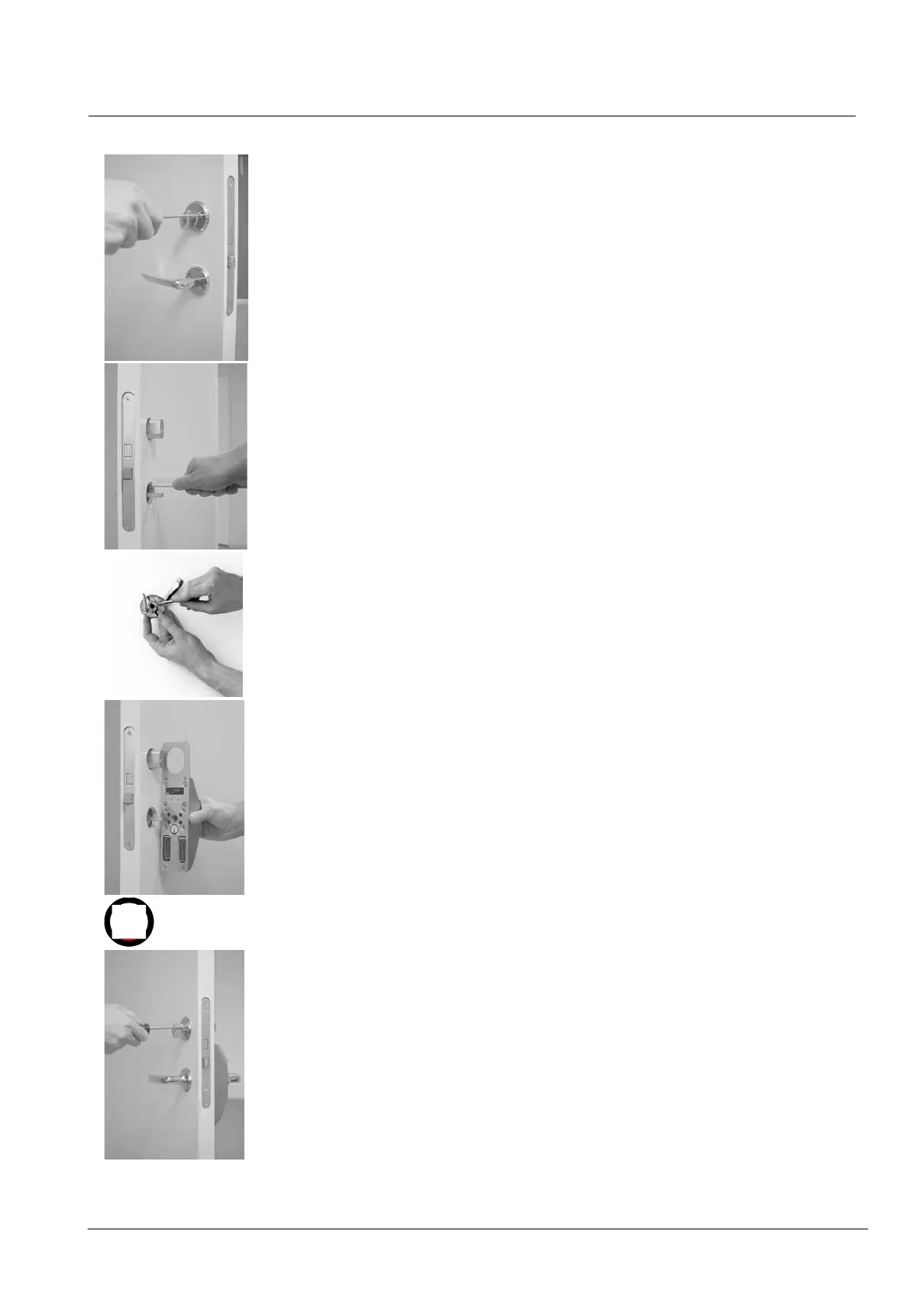

9.2 Fitting CD30 to the door
1. Check that the Administrator code has been set. See section 8 Change Ad-
ministrator code.
2. Make sure you have the following tools handy:
– Screwdriver for door handle and cylinder ring screws.
– Hacksaw for trimming lever handle spindle.
3. Remove the cylinder ring and door handle from the door by loosening the four
screws. See figure 1.
4. Ensure that the handle spindle does not project more than 20 mm on the
outside of the door. If the spindle is too long, push it through into the handle
on the inside. If this cannot be done, cut the spindle to the right length. See
figure 2.
5. Prepare the handle by extending the screws with the supplied extension
sleeves (M4 or M5). See figure 3.
6. Place the CD30 on the outside of the door with the handle attached, and pass
the lever handle spindle through the square hole. See figure 4.
7. Ensure that the red mark on the follower point downwards. See figure 5.
8. Tighten the four previously loosened screws to the nipples (the screws for the
handle first). These should be just firm. Over-tightening may distort the lock
structure so that it jams. See figure 6.
9. Test the mechanical function of the CD30. See section 9.2.1 Test mechanical
function of CD30.
1
2
3
4
5
6
