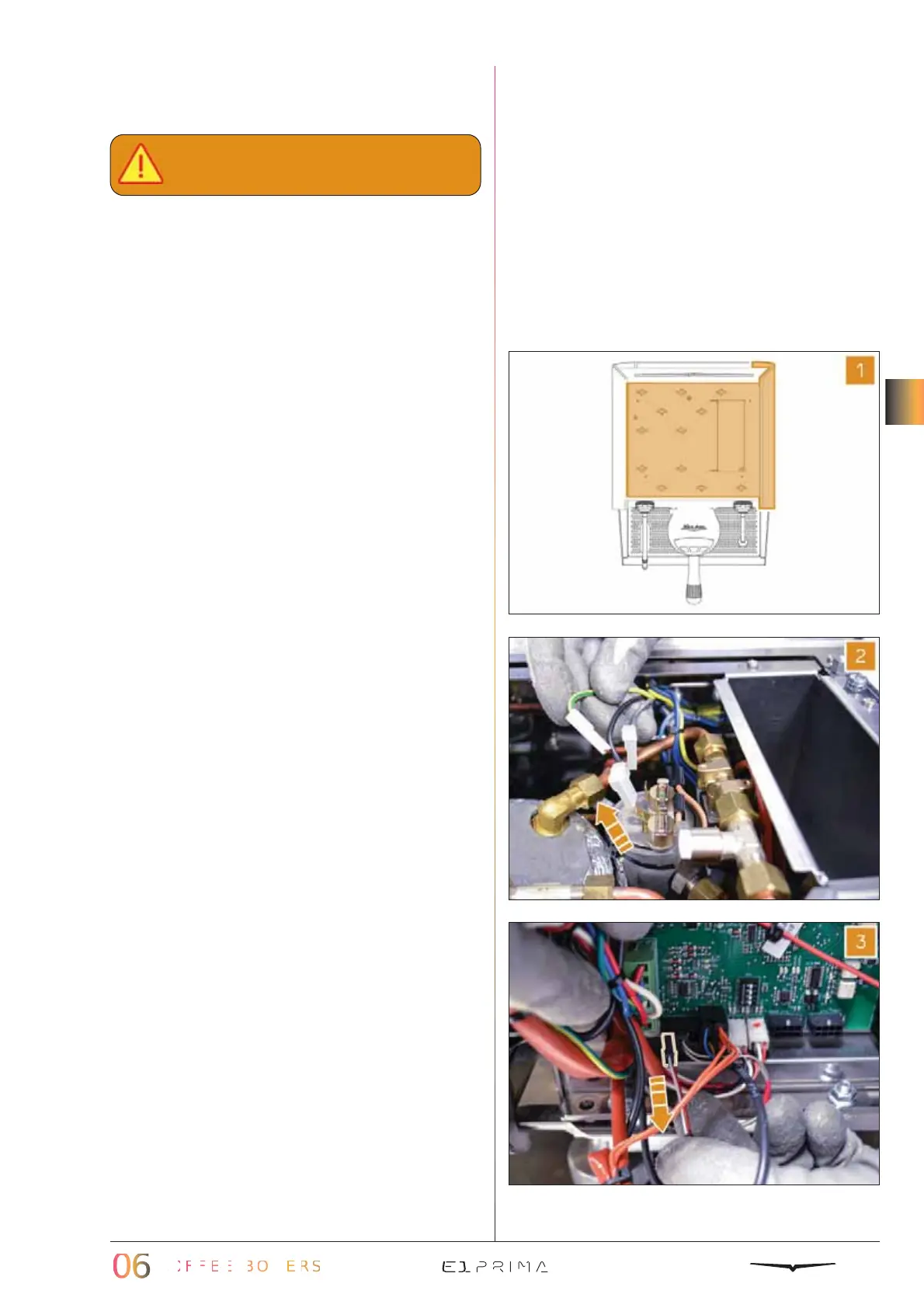

6.1 REMOVAL OF
THE COFFEE BOILER
WARNING
The coffee boiler contains just 0.14 litre
of water, therefore it is not necessary to
empty it when it is needed to remove
it or its components. If the machine
is hot, it is suggestible to reduce the
inner pressure of the coffee boiler, as
explained in paragraph 4.7.1.
Moreover, it is always a good idea
to place a cloth or absorbent paper
underneath the coffee boiler pipes to
avoid potential electrical damages.
To remove the coffee boiler, proceed as it
follows:
1
Remove the cup holder surface, the right
side panel and the water tank, as de-
scribed in chapter 3.
2
Disconnect the cables on the top of the
coffee boiler.
3
Disconnect the temperature probe from
the control unit.
11
11
04
04
11
11
05
05
11
11
06
06
06
