EAGLE ONE PRIMA | LIBRETTO ISTRUZIONI - USER HANDBOOK - MANUEL D’INSTRUCTIONS | 37
DATI PROGETTO DIRETTIVA PED 97/23/CE
VOLUME 1,5 l
TS 139°C
P.V.S. 2.5 Bar
PT 4 Bar
FLUIDO H2O
ELEMENTO Q.TÀ CODICE DESCRIZIONE MATERIALE
1 1 98031201 Flangia inferiore
2 1 98031201 Corpo del boiler INOX AISI 316L
3 1 98031201 Flangia superiore INOX AISI 316L
4 2 00080750 Vite prigioniera M6 x 25 INOX
5 1 00080800 Vite prigioniera M3 x 8 INOX
6 3 00081410 Vite prigioniera M6 x 20 INOX
12.3

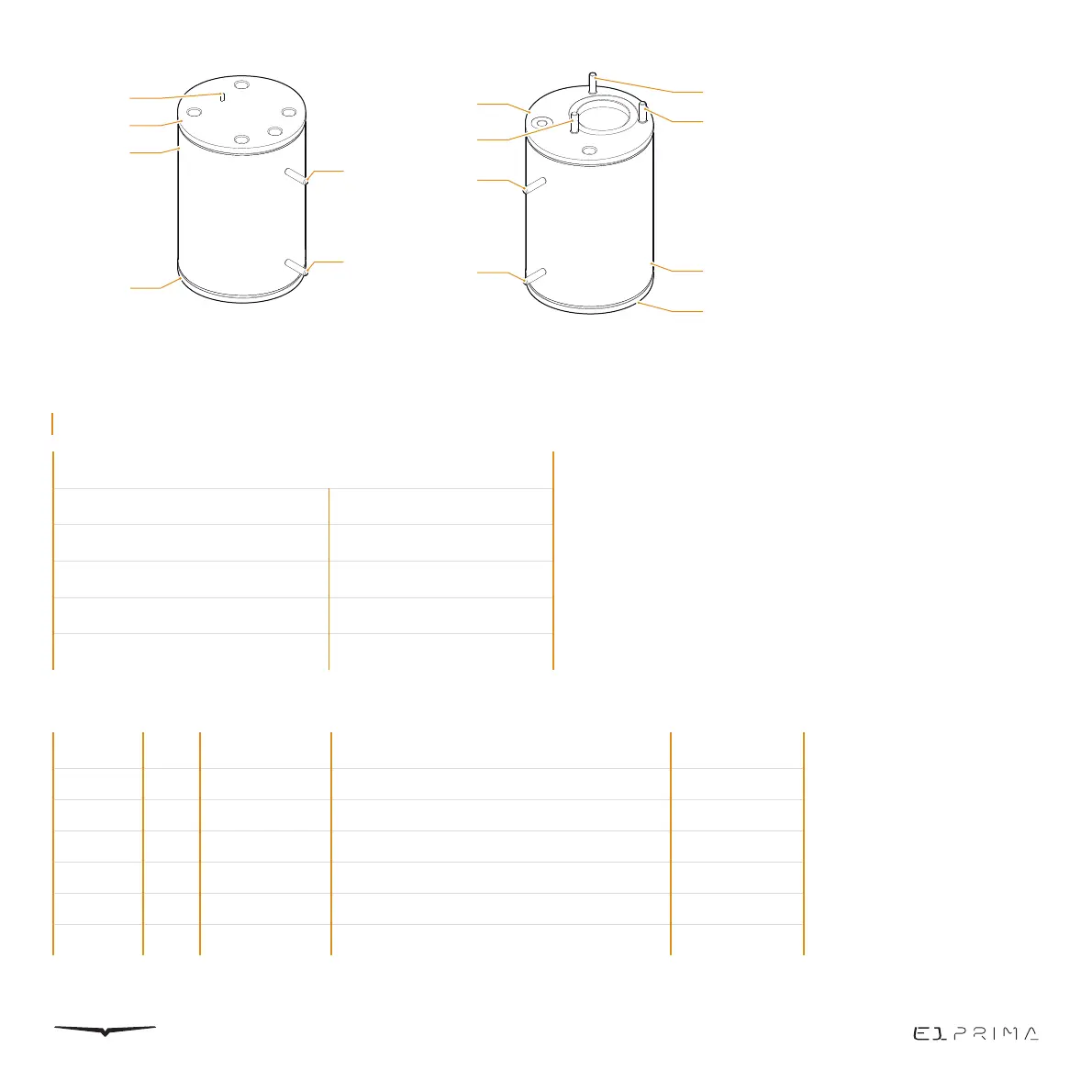

SCHEMA CALDAIA
5
3
2
1
4
1
6
4
4
4
3
2
6
6
