Wall mounting

Note:

• Installation must be carried out by qualified

personnel only. Incorrect assembly can

result in severe personal injury and property

damage (if you intend to install this product

yourself, you must check for installations such

as electrical wiring and plumbing that may

be buried inside the wall). It is the installer’s

responsibility to verify that the wall will safely

support the total load of the Soundbar and

wall brackets.

• Additional tools (not included) are required

for the installation.

• Do not overtighten screws.

• Keep this instruction manual for future

reference.

• Use an electronic stud finder to check the

wall type before drilling and mounting.

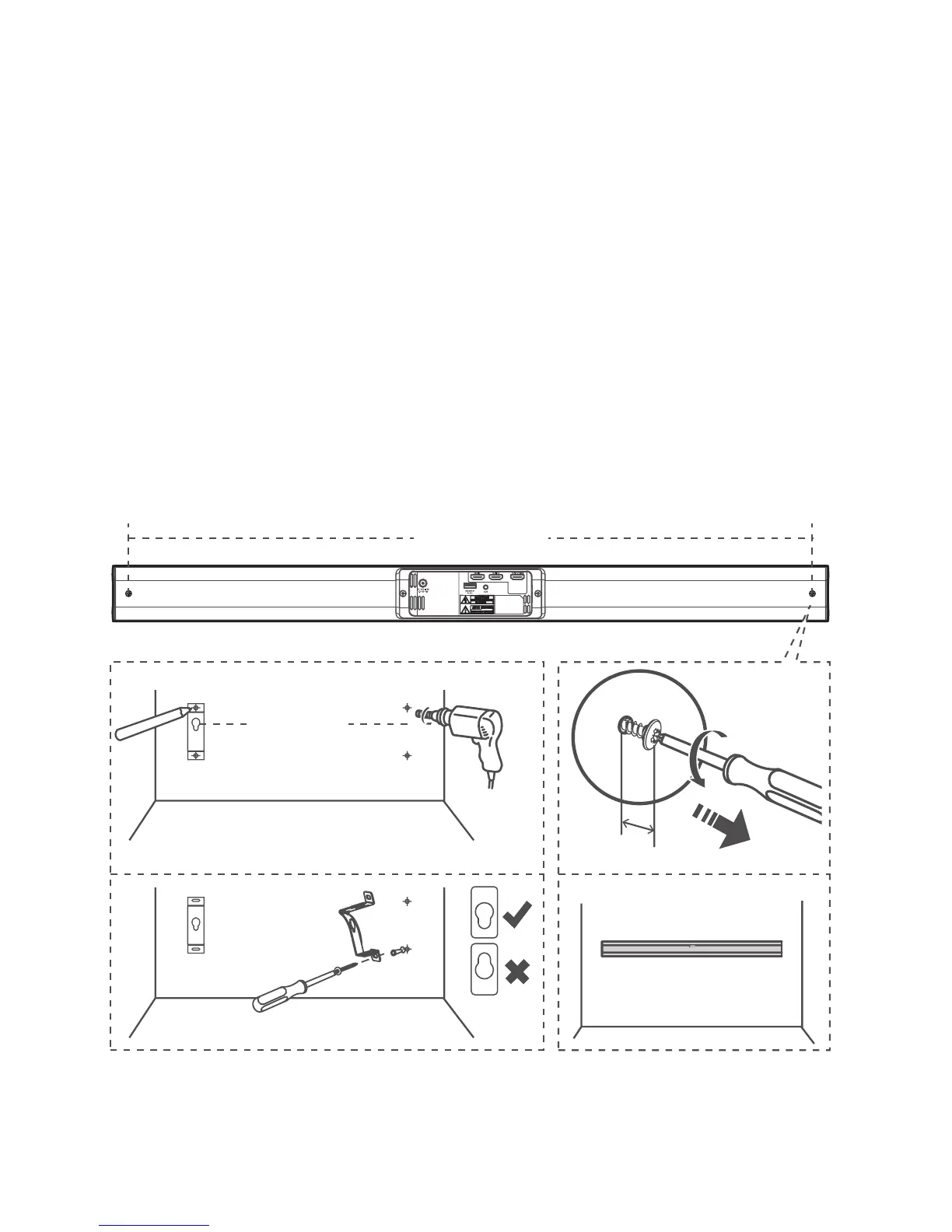

1. Drill 4 parallel holes (Ø 5.5-6 mm each

according to wall type) in the wall. The

distance between the holes should be

756 mm.

2. Firmly fix 1 dowel into each hole in the wall if

necessary. Tighten the wall mount brackets

on the wall with screws and screwdriver (not

included). Make sure that they are securely

installed.

3. Remove the screws at the back of the unit.

Install the wall mounting screws into the

back of the unit.

4. Lift the unit onto the wall mount brackets

and slot into place.

765mm

3mm
