Lubricating the X-Axis, Y-Axis and Z-Axis Leadscrews and Linear Rails
(ALL MODELS)
A light lubrication of the X, Y and Z-Axis leadscrews should be performed after every month of usage.
Use Teflon-Free Silicone lubricant spray only. Spray a light coating along the entire leadscrew. Note: A
nozzle extender attached to the aerosol spray can help facilitate this procedure and may eliminate the
need to remove the metal covers. DO NOT use any lubricant other than Teflon-Free Silicone, as it may
become sticky and cause a buildup that will cause mechanical failure.
The X and Z-Axis linear rails should be wiped down with a clean, dry cloth each week and a few drops
of machine oil (such as 3-in-1 Oil) should be applied to the rail surfaces. Spread the oil over the rails
using a cotton swap or your finger. Lubrication frequency will depend on usage and the types of
materials being engraved.

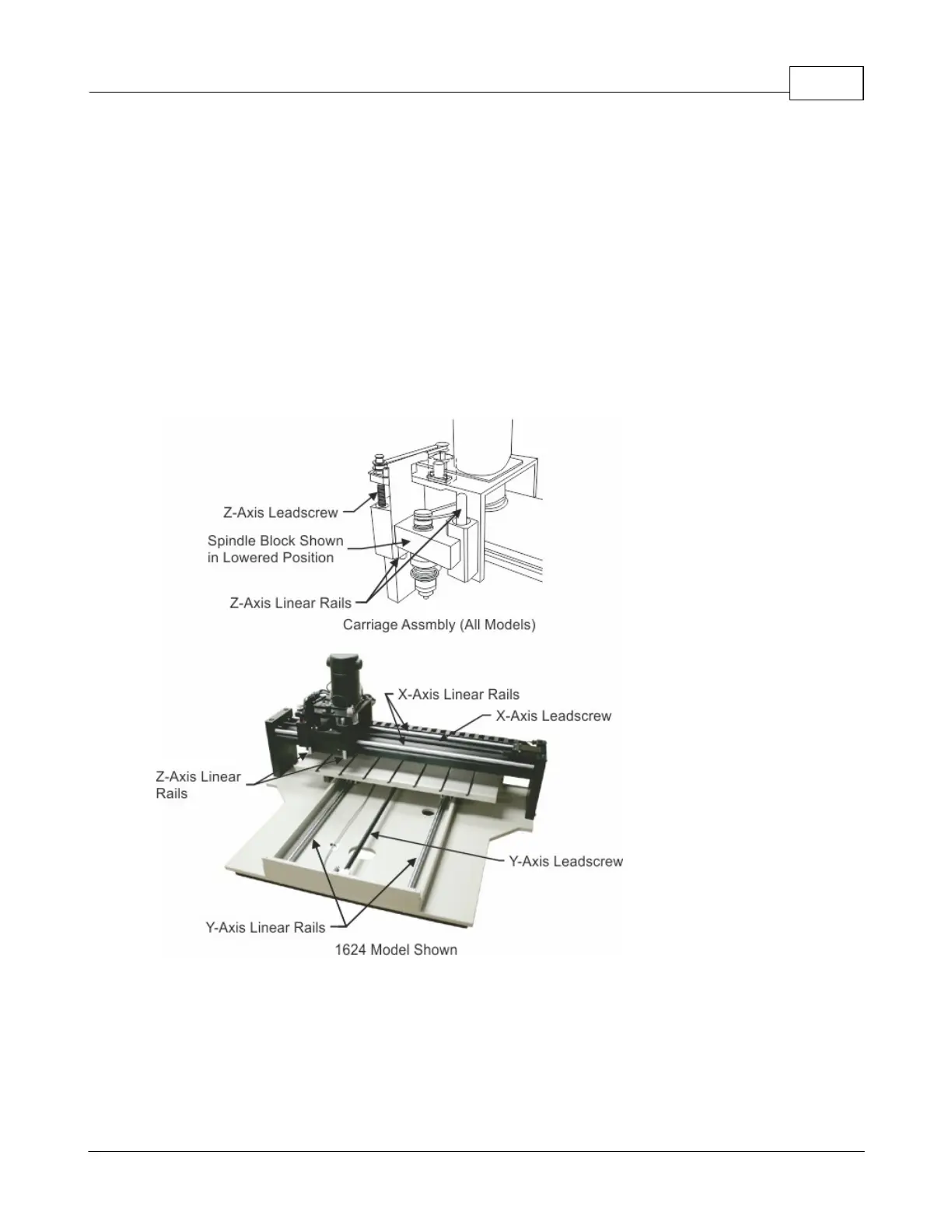

(Carriage and Gantry Covers Removed for Clarity)
The Y-Axis linear rails on the 16 Series machines are under a cover below the engraving table. These
linear rails should be wiped down with a clean, dry cloth every year and a few drops of machine oil
(such as 3-in-1 Oil) should be applied to the rail surfaces as per above..
