Vision 16 Series and 24 Series Engraver User Manual24
© 2013 Vision Engraving & Routing Systems

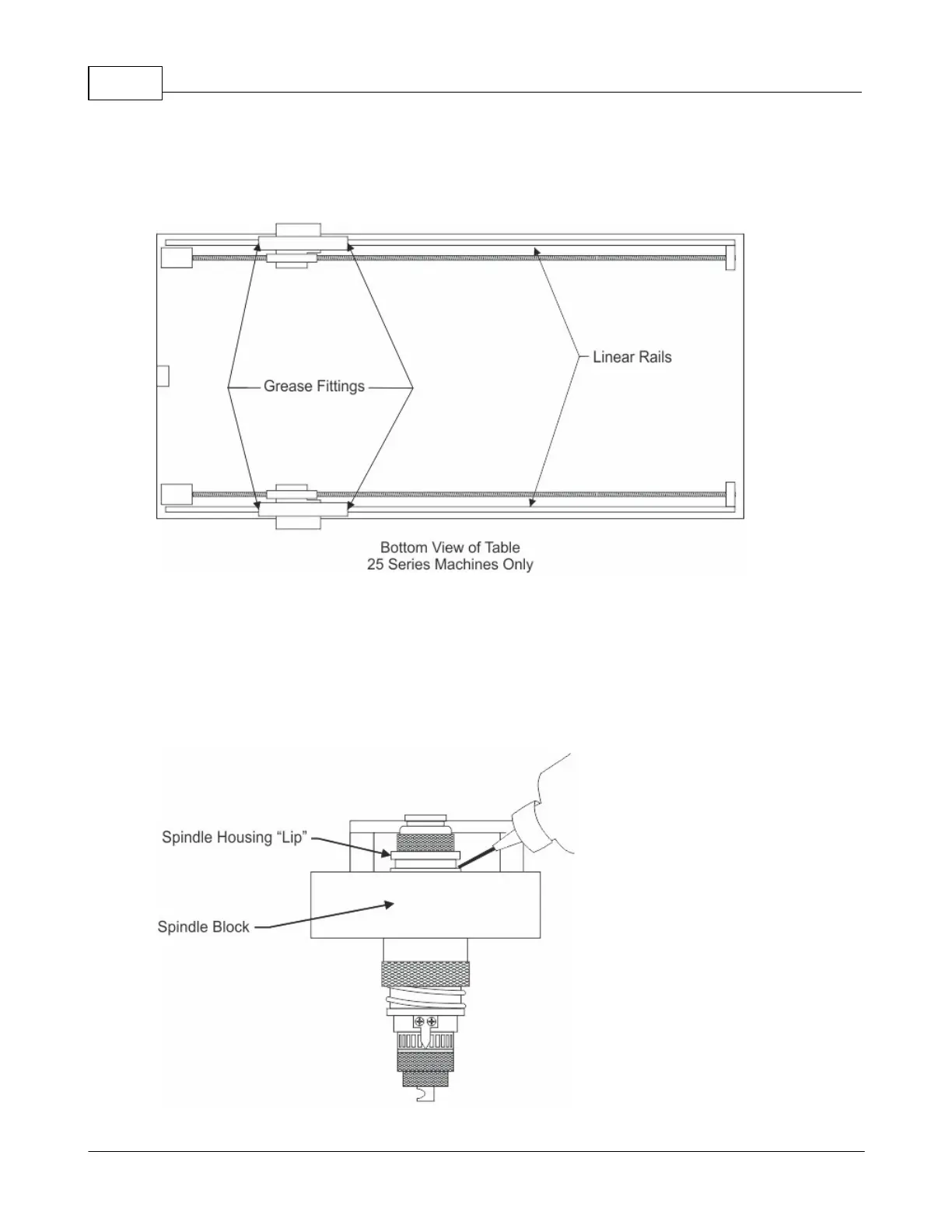

The Y-Axis linear rails on the 25 Series machines have grease fittings (shown below). Greasing of these
fittings should only be performed every year. Only 1/2 - 1 pump of grease is required. DO NOT apply
grease until grease comes out of the bearing seals. This will deform the seals and allow debris into the
bearings.
Spindle Housing Lubrication
The spindle assembly requires a monthly lubrication of the housing. Simply push the spindle up until
there is a 1/3” gap between the spindle block and the “lip” of the housing. Lubricate with
2 to 3 drops of 3 in 1 oil.
DO NOT OVER LUBRICATE! Never lubricate the spindle bearings! This will cause the spindle to
stick.
