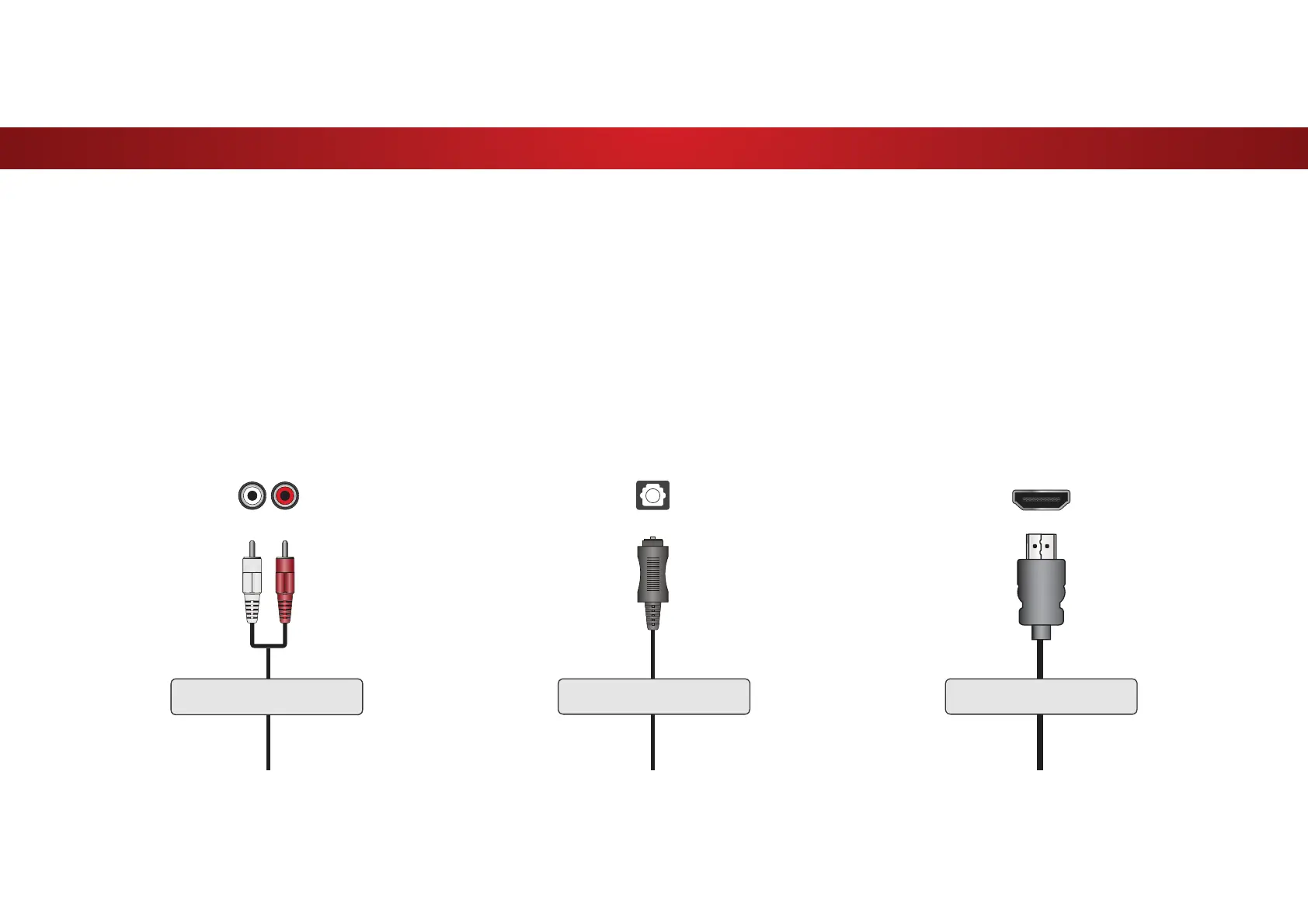

CONNECTING AN AUDIO DEVICE - AUDIO CABLE TYPES
RCA CABLE
RCA cables (or Composite cables) are the
traditional way of connecting your devices to your
audio device. Audio signals are sent over the red
and white connectors.
• Quality Stereo Connection
• 2.0 Channel
• Analog Connection
• Audio Signal Only
OPTICAL/SPDIF CABLE
Optical/SPDIF cables transmit audio signals as
pulses of light through a cable made of plastic
ȴEHUV $XGLR VLJQDOV DUH GLJLWDOO\ WUDQVPLWWHG
between devices.
• PCM Stream (Lossless)
• Dolby Digital 5.1 Channel
• DTS 5.1 Channel
• Digital Connection
• Audio Signal Only
HDMI CABLE
HDMI technology transmits crystal-clear digital
multi-channel surround audio through a single
HDMI cable. Audio Return Channel-enabled
(ARC) TVs allow audio to be sent over an already
connected HDMI cable, eliminating the need for
a separate audio cable. See Connecting an Audio
Device - ARC on page 17.
• ARC 2-way Communication
(Auto setup)
• PCM, DTS, Dolby Digital
• 2.0 - 5.1 Scaleable Lossless
Digital Audio Connection
• Audio and Video Signals
GOOD
L R
BETTER
Optical/SPDIF
BEST
HDMI
16

Vizio D55-D2 Specifications

General

Display diagonal	55 \
Display technology	LED
Native aspect ratio	16:9
Native refresh rate	120 Hz
LED backlighting type	Full-Array
Contrast ratio (dynamic)	5000000:1
Display number of colors	16.78 million colors
Ambient light sensor	Yes
Number of OSD languages	3
On Screen Display (OSD) languages	ENG, ESP, FRE
3D	No
RMS rated power	30 W
Number of speakers	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Remote control type	XRT122
Sustainability certificates	ENERGY STAR
Power consumption (standby)	1 W
Power consumption (typical)	40.32 W
Panel mounting interface	200 x 200 mm
Package depth	160.02 mm
Package width	1465.07 mm
Package height	829.06 mm
Package weight	19500 g

Weight and Dimensions

Depth (with stand)	249.94 mm
Width (with stand)	1240.03 mm
Height (with stand)	782.57 mm
Weight (with stand)	14200 g
Depth (without stand)	68.07 mm
Height (without stand)	722.63 mm
Weight (without stand)	13800 g
