60

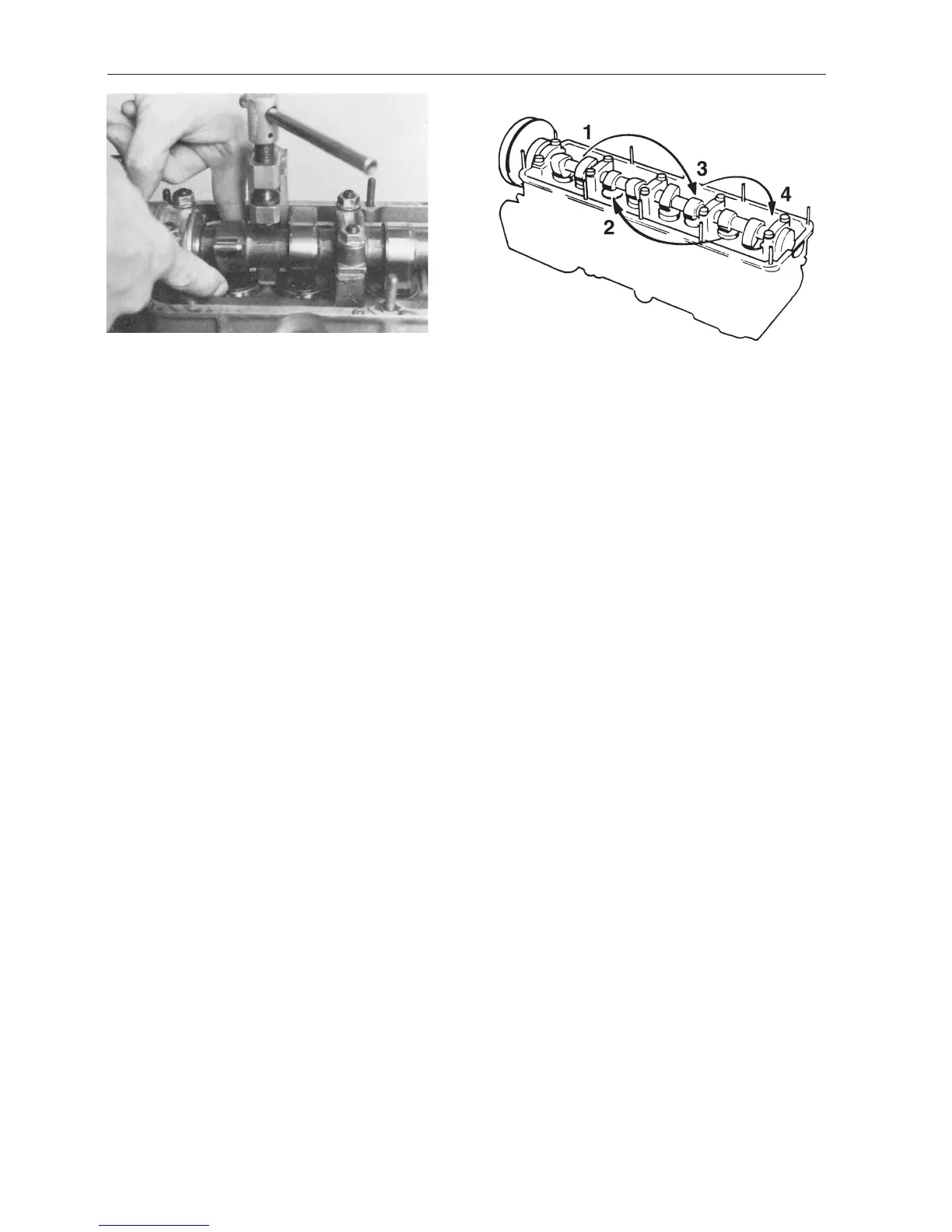

140. Oil the new washer and insert it with the mark-
ing facing downwards.
141. Remove the tool part no 9995022-2. Turn the
camshaft in position for ignition of number 3 cylinder
to fire. Measure the clearance with a feeler gauge
and remedy if necessary in accordance with the
above instructions. Repeat the procedure on number
4 and number 2 cylinders and in this order. Then
turn the camshaft a couple of turns and check the
clearances for all the valves.
Valve Adjustment Kit for 230,
250, AQ131, AQ151
Kit No 884516-4
The kit contains a shim assortment to provide as
large an adjustment range as possible. It can be
complemented if necessary by ordering from the
Volvo Penta Parts Department. The complete kit,
part no 884516-4 contains the following parts:
Part No: Qty: Designation: Thickness mm (inch)
463551 6 Adjustment shim 3.55 (0.13976")
463552 6 Adjustment shim 3.60 (0.14173")
463553 6 Adjustment shim 3.65 (0.14370")
463554 6 Adjustment shim 3.70 (0.14567")
463555 6 Adjustment shim 3.75 (0.14764")
463556 12 Adjustment shim 3.80 (0.14960")
463557 12 Adjustment shim 3.85 (0.15157")
463558 12 Adjustment shim 3.90 (0.15354")
463559 12 Adjustment shim 3.95 (0.15551")
463560 6 Adjustment shim 4.00 (0.15748")
463561 6 Adjustment shim 4.05 (0.15945")
463562 6 Adjustment shim 4.10 (0.16142")
463563 6 Adjustment shim 4.15 (0.16339")
463564 6 Adjustment shim 4.20 (0.16535")
834557 1 Index
834613 1 Tool box
9995022 1 Depressing tool
9995026 1 Pair of pliers
