94
Changing the breaker points 230, 251, AQ131,
AQ151

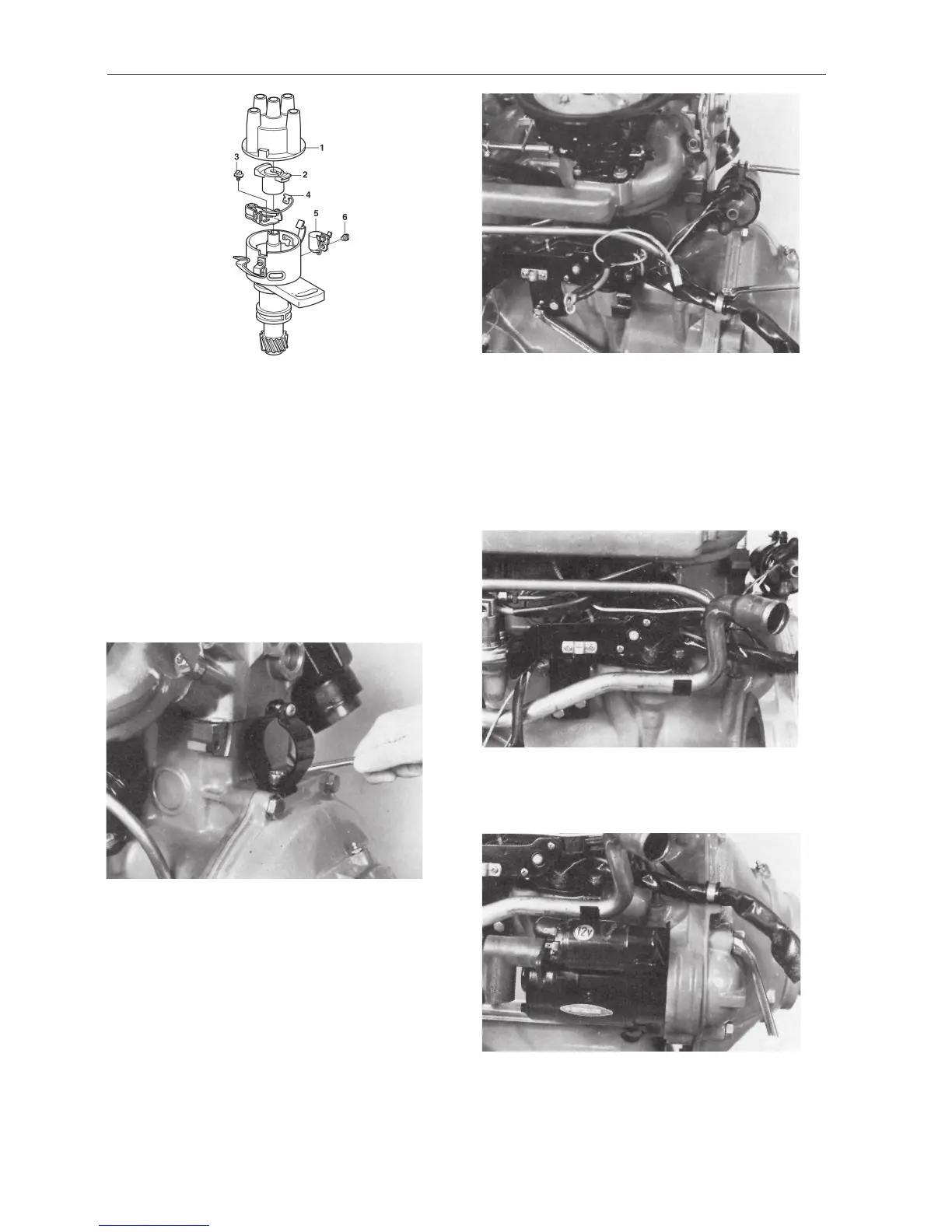

301. Remove the distributor cap (1) and the rotor
(2). Then loosen the screw (3) and the flat terminal
(4) and remove the breaker point set. Install a new
breaker point set. The contact gap should be 0.40
mm (0.01575"). At the same time replace the con-
denser (5) by loosening the screw (6). Tighten the
new condenser and connect the flat terminal. Push
on the rotor and install the distributor cap.
NOTE! During the test run, check the dwell angle
and adjust if necessary. See under “Technical Data”.
302. Install the bracket for the ignition coil on the en-
gine.
303. Install the fuse bracket and the wiring harness.
Clamp the wiring harness to the flywheel housing
and tighten the ignition coil to its bracket.
304. Install the cooling water pipe
305. Install the starter motor.
