22

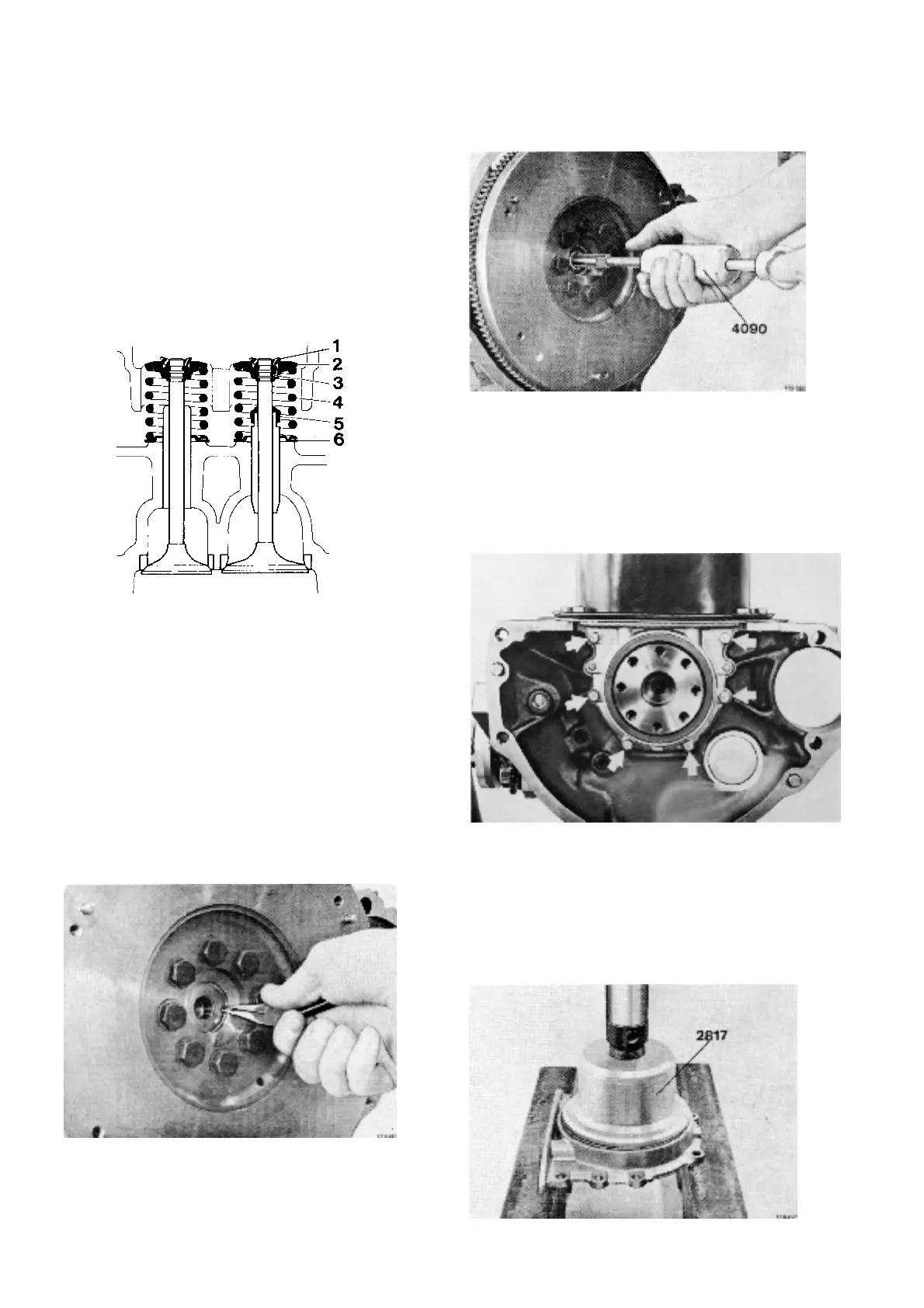

52. Refit the valves.
1. Rubber ring
2. Upper valve washer
3. Collets
4. Valve springs
5. Valve stem seal (inlet)
6. Lower valve spring washer
Then refit the spark plugs.
NOTE! Make sure that the spark plug thread
screws in correctly so that the thread in the
aluminium cylinder head is not damaged. The
tightening torque is: 25–30 Nm (2.5–3.0 kpm)
(18.4–22.1 lbf. ft.)
53. Remove the locking ring for the bearing on the in-
put shaft.
54. Remove the bearing for the input shaft. Use tool
999 4090. Remove the flywheel.
55. Remove the sealing flange. NOTE! Two screws
from the sump must also be removed.
56. Remove the seal from the sealing flange with tool
999 2817.
