47
INSTRUMENTPANEL
1.
Voltmeter
2.
Oljetrycksmätare
3.
Temperturmätare för
kylvatten
4.
Instrumentkort
5.
Tryckknapp
6.
Strömbrytare för instru-
mentbelysning
7.
Varvräknare
8.
Nyckelströmbrytare
9.
Alarm

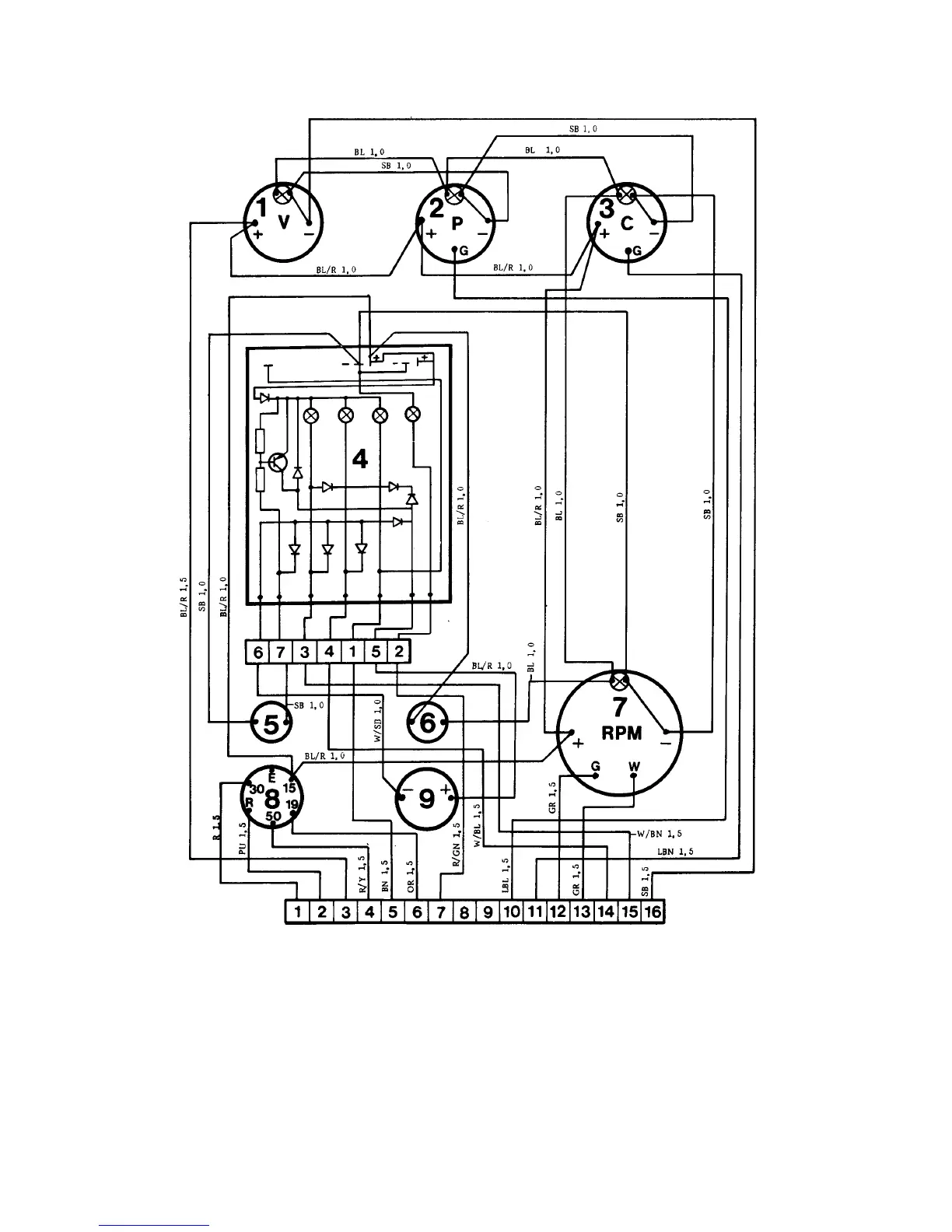

Wiring diagram
Elkopplingsschema
INSTRUMENT PANEL
1.
Voltmeter
2.
Oil pressure gauge
3.
Coolant temperature
gauge
4.
Printed circuit card
5.
Push button
6.
Switch for instrument
lighting
7.
Rev. counter
8.
Key switch
9.
Alarm
