Volvo Penta D1 Series User Manual

Adjusting the friction brake
The lever is fitted with a friction brake to allow
adjustment for easier or stiffer movement as required.
The friction brake only affects movement of the throttle
control lever.
1 Lift away the cover from the control. On side-
mounted controls the lever must be removed first.
2 Move the lever to the half throttle/astern position.

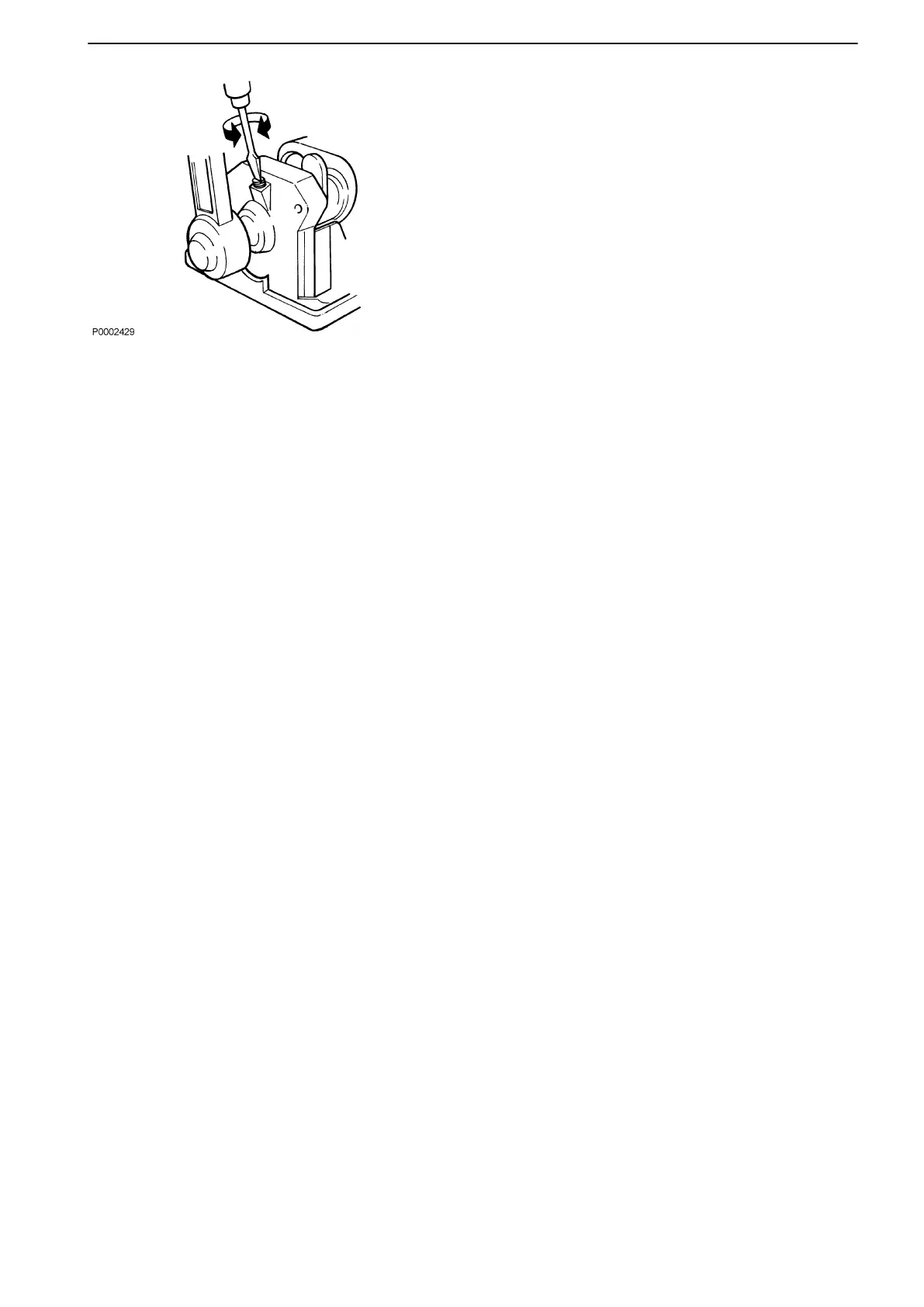

3 Adjust the friction brake by turning the screw
clockwise (+) for stiffer lever movement, and
counterclockwise (-) for easier movement.
4 Replace the cover and the lever.
Instruments and Controls
47711262 01-2019 © AB VOLVO PENTA 31

Volvo Penta D1 Series Specifications

General

Aspiration	Naturally aspirated
Engine Type	Diesel
Cooling System	Freshwater cooling (heat exchanger)
Engine Model	D1-30, D1-40
Emission Compliance	RCD II
Number of Cylinders	3
