Optional
ACP
Active Corrosion Protection System
Your boat may be equipped with a Volvo Penta active corrosion protection system (APCS). This system operates
with very little current drain from the boat’s electrical system. It keeps the voltage potential in the area around the
drive unit in a range that is not corrosive to aluminum. If you do not have an active corrosion protection system
already installed, you may purchase one from your authorized Volvo Penta dealer.
NOTICE! ACPS is designed for salt water applications only; using the system in fresh water–while harmless–will
not protect your sterndrive from corrosion. If you will be operating your boat in fresh water exclusively, you must
install magnesium anodes to adequately protect your sterndrive.
22251

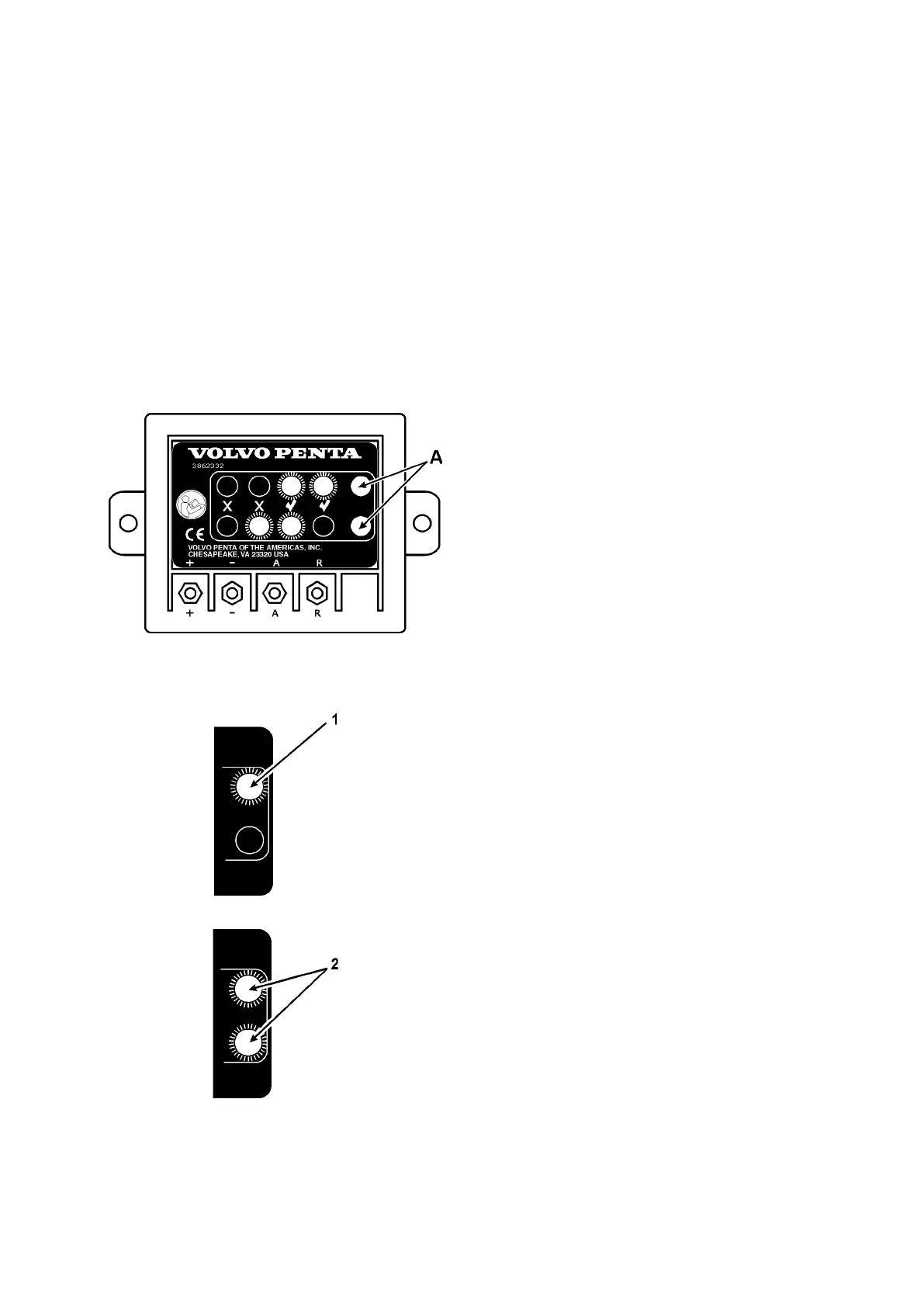

The protection system’s control box has both red and
green LED indicator lights A. The lights will indicate the
amount of protection that the unit is providing to protect
the sterndrive and transom shield.
NOTICE! The active corrosion protection system is
designed to adequately protect one drive unit from gal-
vanic corrosion under normal operating conditions.
This system will not provide protection from stray cur-
rents emitted by a malfunctioning AC power source on
your boat, the pier, or other boats in close proximity to
yours. Although the zinc sacrificial anodes will last
much longer with this system, they must still be
cleaned and checked for material condition periodi-
cally.
22863-1
1. The green LED 1 indicates the unit is adequately
protected.
22863-2
2. If the green and red LEDs 2 are illuminated, the
drive is protected but the system is drawing power
(between 3 to 150 mA) to protect the drive unit.
Check the conditions and solutions listed below.
47701898 12-2010 59
