Display

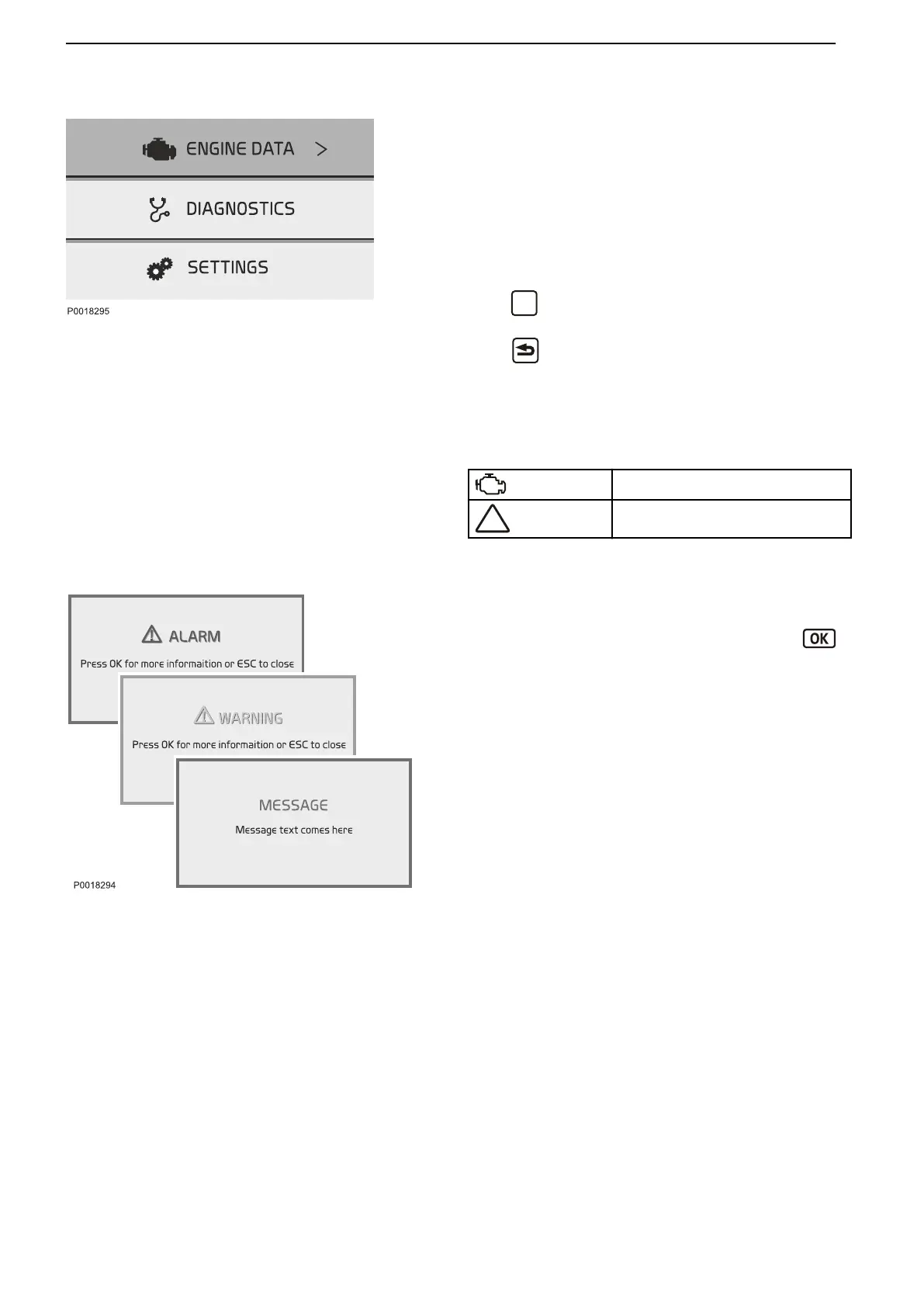

The DCU II basic view shows three main menus.
•
ENGINE DATA (ENGINE DATA), shows current
engine data.
•
DIAGNOSTICS (DIAGNOSTICS), shows active
fault codes.
•
SETTINGS (SETTINGS), shows display and engine
settings.
Press
to proceed in the submenus and scroll using
the panel arrow buttons.
Press to return to previous menu.
Status bar
The status bar with symbols for active malfunctions is
shown in the top right of the display.
Emission related malfunction
EMS system malfunction
Alarms and messages
Messages to the operator are of three types, color
coded according to degree of severity.
When a message is shown on the display, press
to reach the diagnostic menu to get more information
regarding registered faults and instructions for
remedial actions.
•
ALARM (ALARM), red text, the system has
detected a serious fault — Volvo Penta
recommends to immediately contact a qualified
workshop .
•
VARNING (WARNING), yellow text, the system has
detected a fault — Volvo Penta recommends to
contact a qualified workshop as soon as possible.
•
MEDDELANDE (MESSAGE), blue text, non-critical
engine message for the operator.
Instruments and Controls
34 47710925 01-2019 © AB VOLVO PENTA
