DU (Display Unit)
TAD1640VE-B, TAD1641VE-B, TAD1642VE-B,
TAD1643VE, TAD1650GE, TAD1650VE,
TAD1651GE, TWD1643GE, TWD1652GE,
TWD1653GE

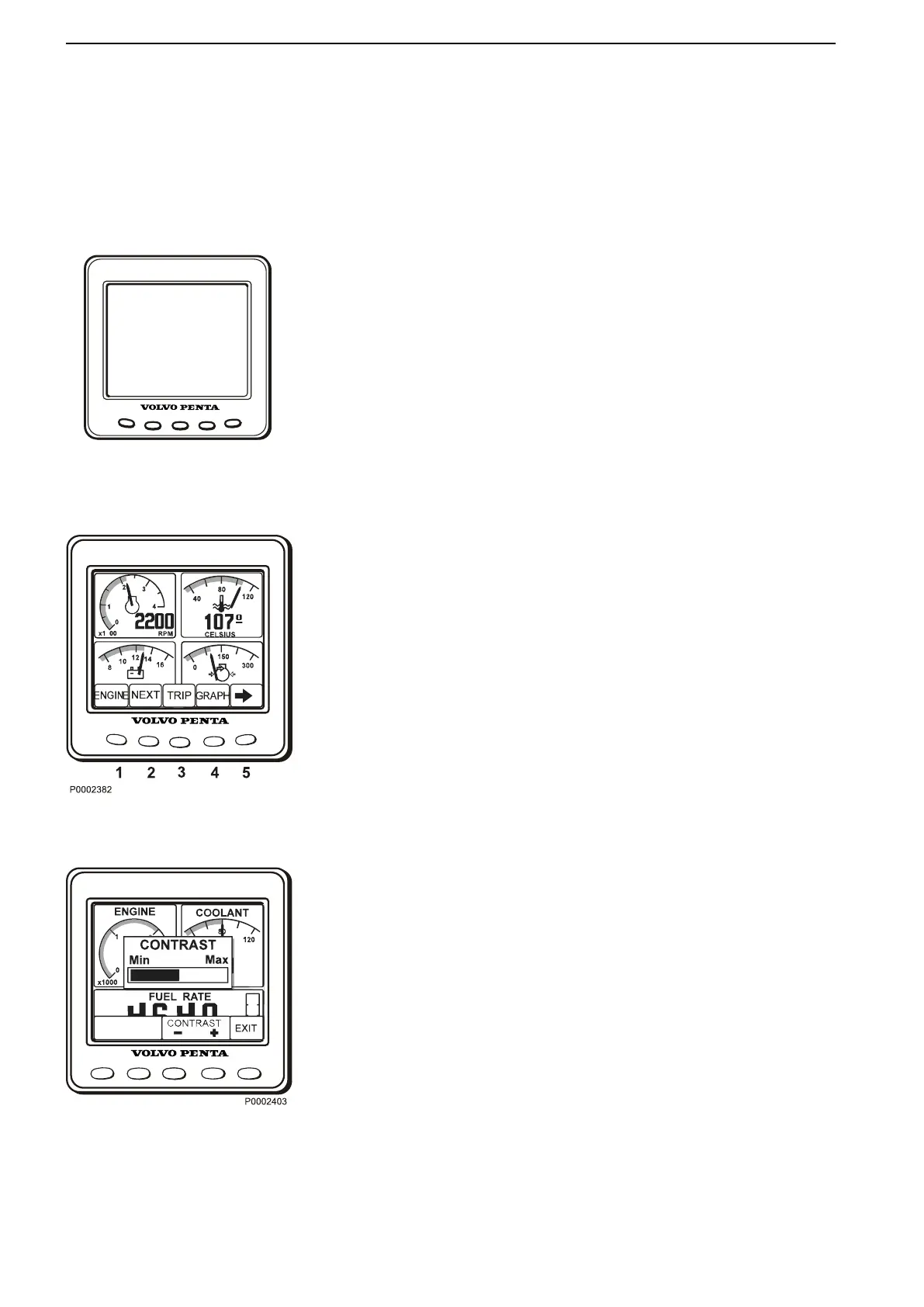

The DU is an computerized instrument panel which
shows engine working values on an LCD screen. In the
display it is possible to show multiple windows with
different information, i. g. engine rpm, coolant
temperature, fuel consumption and fault messages.
At start up, the display performs a self-test. If an
constant signal is heard, the system has discovered a
malfunction. The display will work but may act in an
unexpected way.
The DU is connected between the engine control unit
and the CIU or DCU.
Display modes
Press any of button 1–4 to view the function menu for
the buttons, apperaring in the lower part of the display.
To leave the menu, wait a few seconds or press button
5 (EXIT).
1 Engine
2 Multi
3 Trip
4 Graph
5 Exit
Contrast
In the display modes Engine, Trip and Graph, it is
possible to adjust the contrast.
Press button 5 outside the menu and then + (button 4)
or – (button 3) to adjust the contrast.
Instruments and Controls
32 47711296 01-2019 © AB VOLVO PENTA
