7
Aquamatic
engines
Presentation
The engines described in this instruction book are six-cylinder, in-line marine diesel engines with direct fuel injection and
fresh water cooling and equipped with a turbo-compressor and after-cooler for the intake air.
Type designations
Inboard
engines
Locating of
number plate
AQD70C
AQD70D
TAMD60A
TAMD60B
TAMD70C
TAMD70D
Engine: On the block above
the injection pump.
TAMD60: On the block in
front of the oil filters.
Reverse gear: On top
Drive 750: On the up-
per gear housing, port
side.

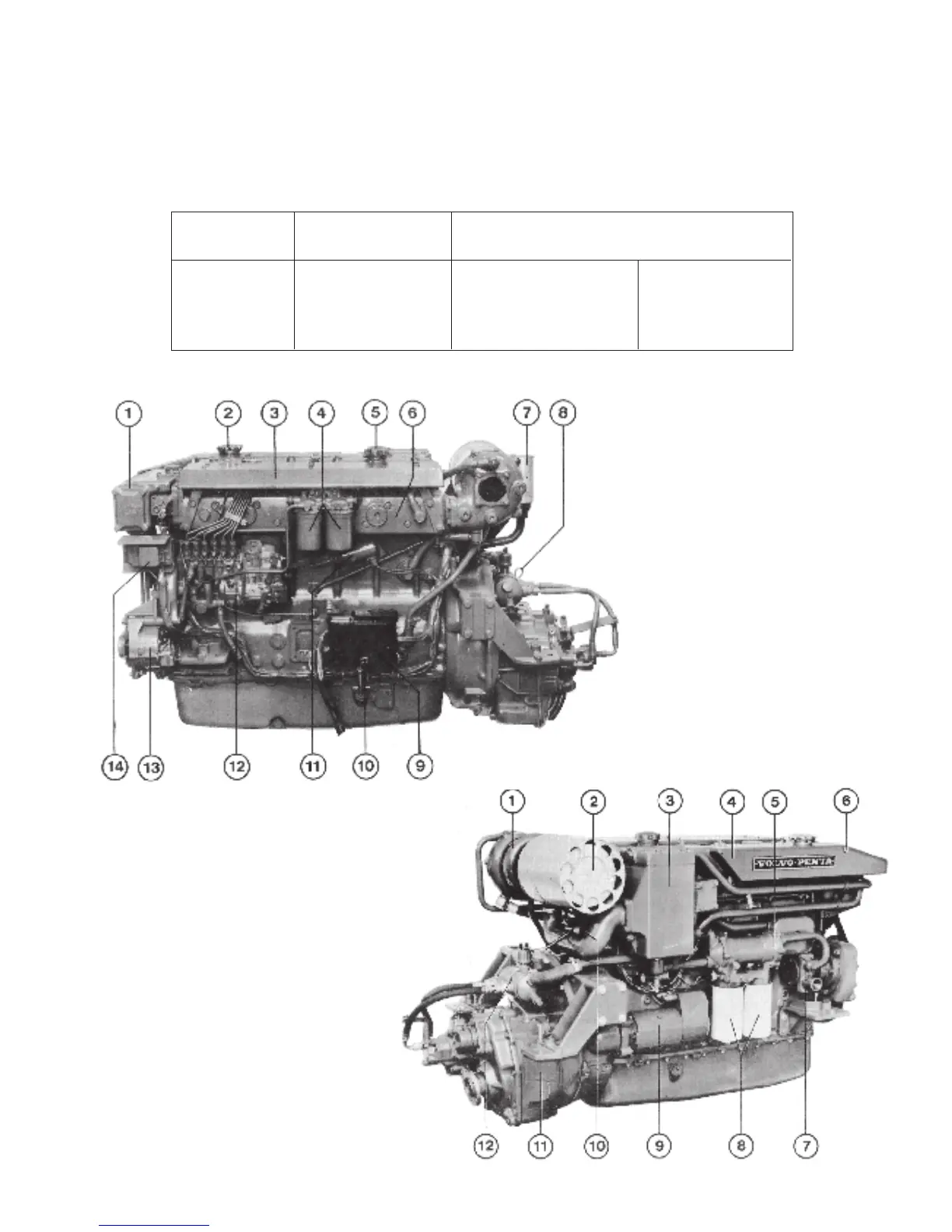

Fig. 1 Engine TAMD60B
1. Heat-exchanger
2. Coolant filler cap
3. Protecting plate
4. Fuel fine filters
5. Engine oil filler cap
6. Liquid cooled exhaust manifold
7. Filter, crankcase ventilation
8. Oil dipstick, reverse gear
9. Electric connection box with
fuses
10. Oil dipstick, engine
11. Stop solenoid
12. Injection pump
13. Alternator
14. Charging regulator
Fig. 2. Engine TAMD60A
1. Turbo-compressor
2. Air cleaner
3. After-cooler
4. Expansion tank (cooling system)
5. Oil cooler for engine
6. Connection for expansion vessel (extra
equipment)
7. Seawater pump
8. Lubricating oil filters
9. Starter motor
10. Outlet, crankcase ventilation
11. Reverse gear TD MG502
12. Oil cooler for reverse gear
