Repair Procedures BPU 2440/2950 Repair
wc_tx000329gb.fm 44

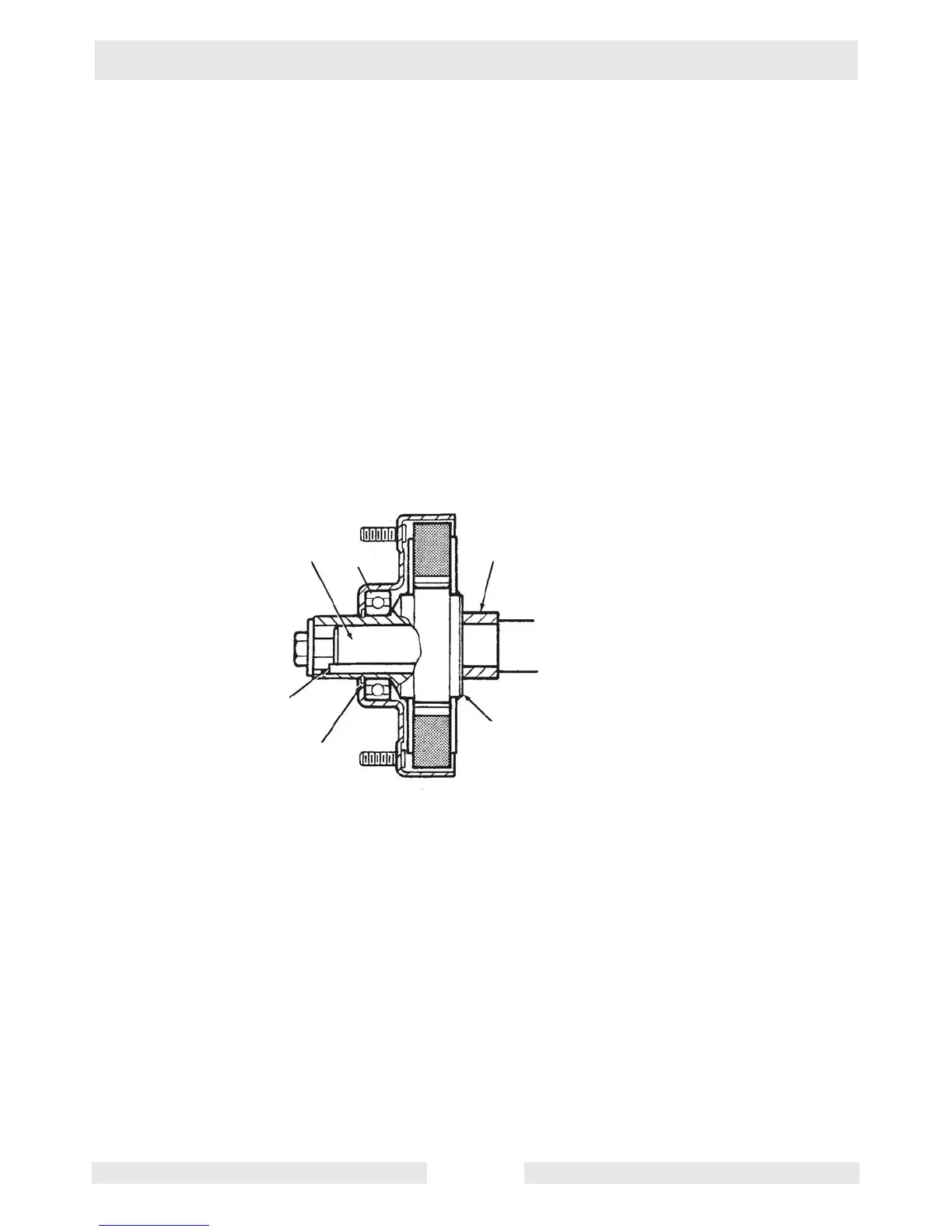

5.12 Servicing the Clutch
See graphic: wc_gr001470
The engine clutch is keyed (a) to the engine drive shaft (b) and secured
using a washer and hex screw. To replace clutch shoes or springs:
5.12.1 Remove snap ring (c) that secures bearing (d) to hub (e).
5.12.2 Pry behind clutch drum and rap center bolt with rubber mallet until the
drum and bearing are free from hub. It is not necessary to remove
clutch hub when replacing the clutch shoes or springs.
Although clutch hub is keyed to shaft, it may bind tightly due to rust and
corrosion, making it difficult to remove. When installing a new clutch,
clean engine drive shaft and coat it with anti-seize lubricating
compound before before installing the new clutch.
Note:
Model 2440A also includes spacer (f).
a
c
b
d
f
e
wc_gr001470
