5.15 Engine Replacement—Robin

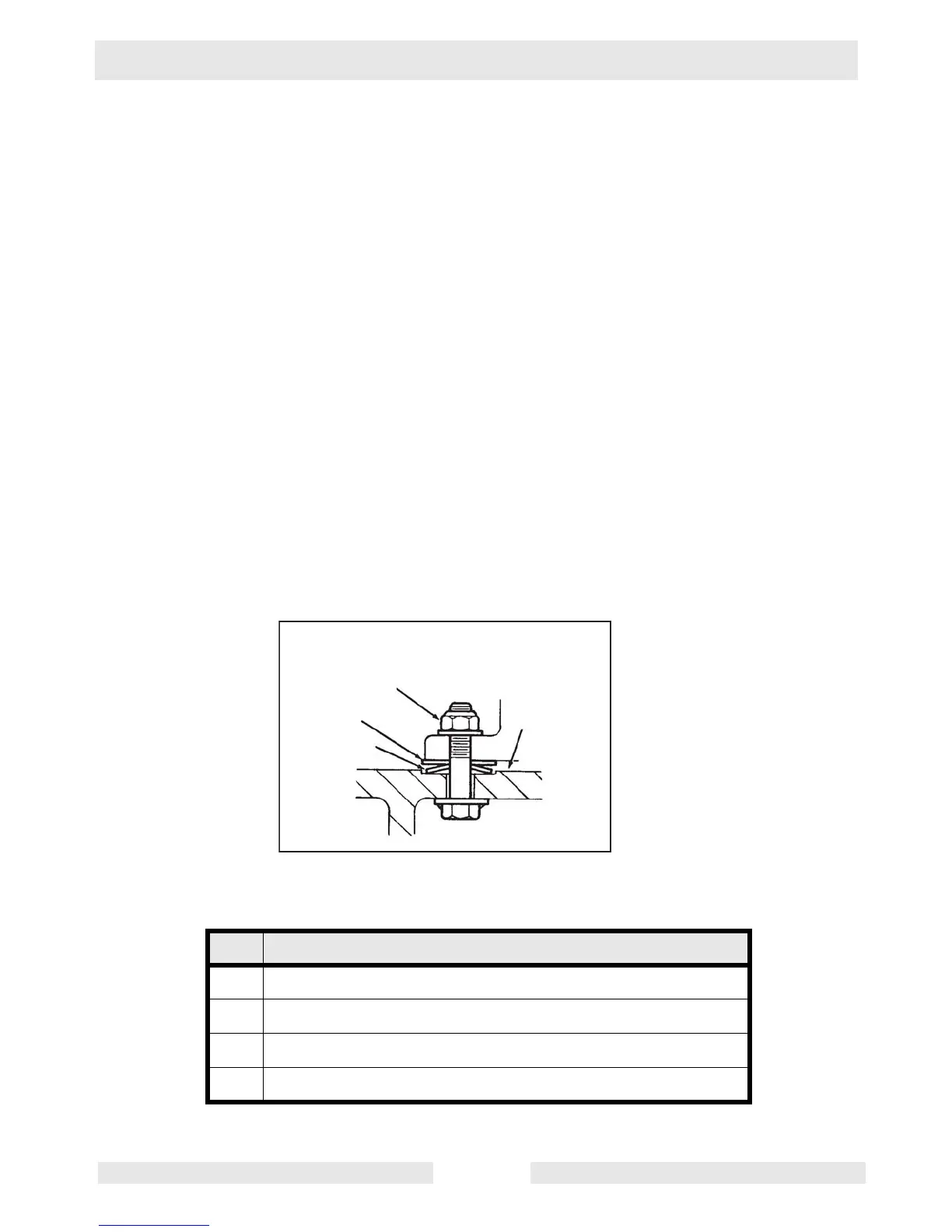

See graphic: wc_gr001472
The engine hardware is designed to provide clearance between the
engine crankcase and the upper console. Any contact between the
console and the engine may stress the engine block. There should be
a small air gap between the engine and plate after hardware has been
tightened.
5.15.1 Place the cupped washer and flat washer as shown.
5.15.2 Using an appropriate hoist or crane, place the engine on the upper
mass and secure the engine with the four mounting bolts. Torque the
bolts to 38 ft.lbs (50 Nm).
5.15.3 On older models, secure the beltguard to the engine using the four
mounting bolts.
On newer models, secure the beltguard to the baseplate using the four
M10x25 mounting bolts.
5.15.4 Coat engine drive shaft with anti-seize and re-install drive belt, pulley,
and clutch onto drive shaft.
5.15.5 Re-install tubular frame to upper mass.
Ref. Note
1. Torque nut to 38 ft.lbs (50 Nm).
2. Check for air gap after assembly.
3. Cupped washer
4. Flat washer
1
2
3
4
wc_gr001472
