Engine and Upper Machine Components Repair
28 wc_tx001546gb.fm
4.2 Replacing the Throttle Control (2-stroke models, 2010 and later)
Requirements
• Machine shut down and cool
• Torque wrench
Removal

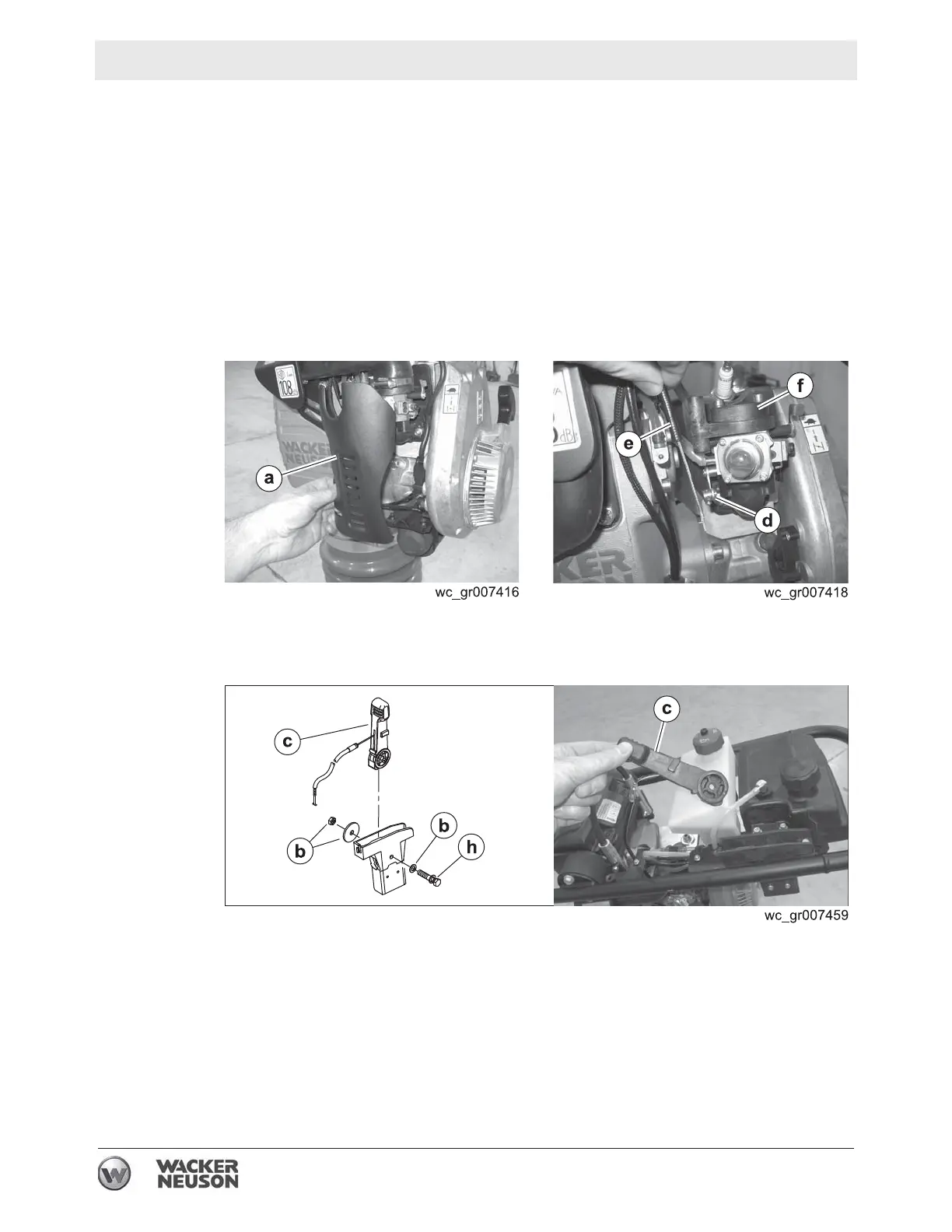

Perform the procedure below to remove the throttle control.
4.2.1 Remove the silencing cover. See topic Removing the Silencing Cover.
4.2.2 Remove the carburetor guard (a).
4.2.3 Loosen the swivel
(d) and slide the throttle cable and casing (e) from
the carburetor adapter (f).
4.2.4 Remove the bolt (h) and hardware (b).
4.2.5 Remove the throttle control
(c) from the machine.
Result
The throttle control has now been removed.
