4.6 Replacing the Stop Switch (4-stroke models, 2010 and later)
Requirements
• Machine shut down and cool
• Torque wrench
Removal
Perform the procedure below to remove the stop switch.
4.6.1 Remove the silencing cover. See topic Replacing the Silencing Cover.
4.6.2 Remove the throttle control. See topic Replacing the Throttle Control.

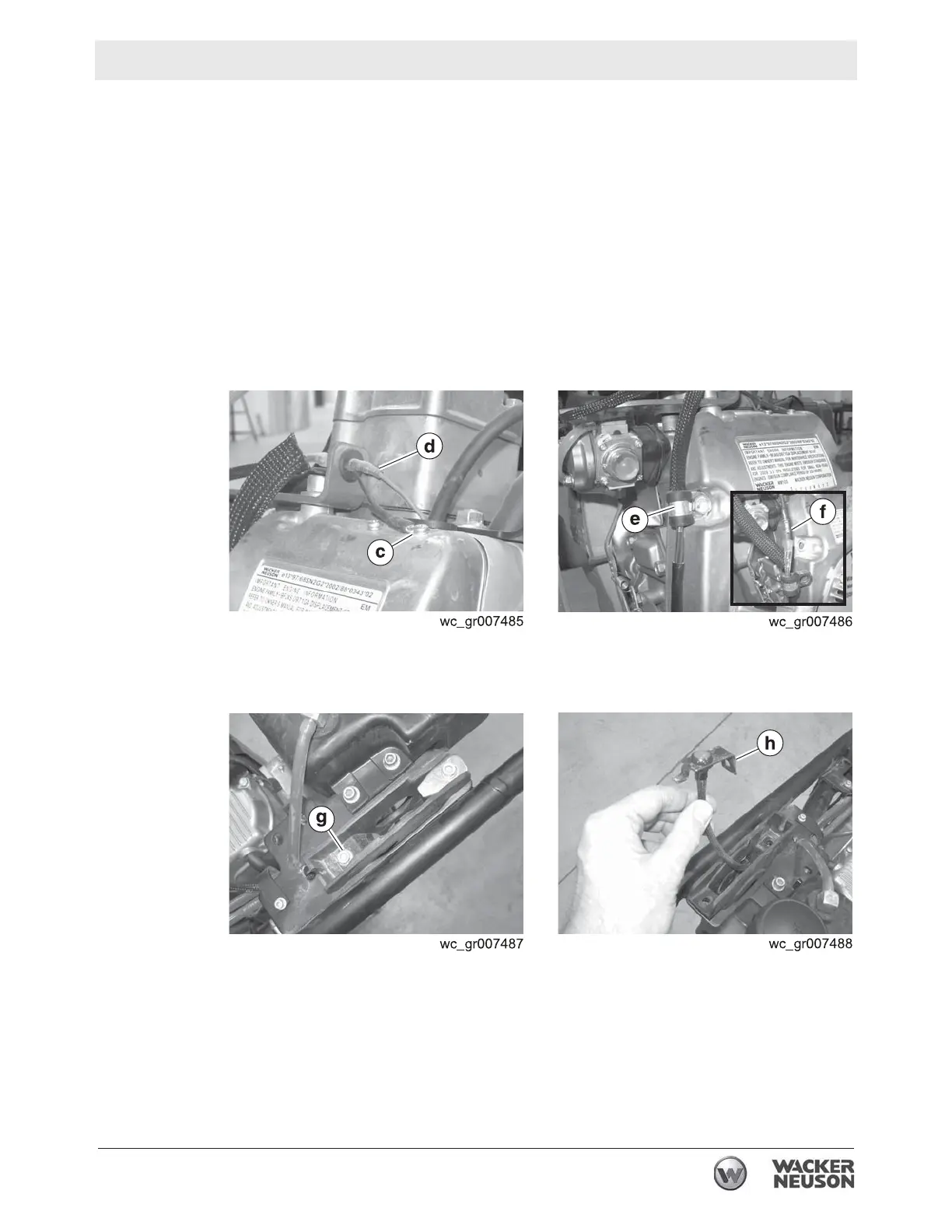

4.6.3 Disconnect the wiring
(c and d) from the engine.
4.6.4 Remove the clamp
(e). Disconnect the wiring connector (f).
4.6.5 Remove the screw (g) that holds the stop switch and remove the stop
switch
(h) from the throttle control bracket.
Result
The removal procedure is now complete.
Installation
Perform the procedure below to install the stop switch.
