6 Components and operator's controls
100_0201_cp_0001.fm 15
6 Components and operator's controls

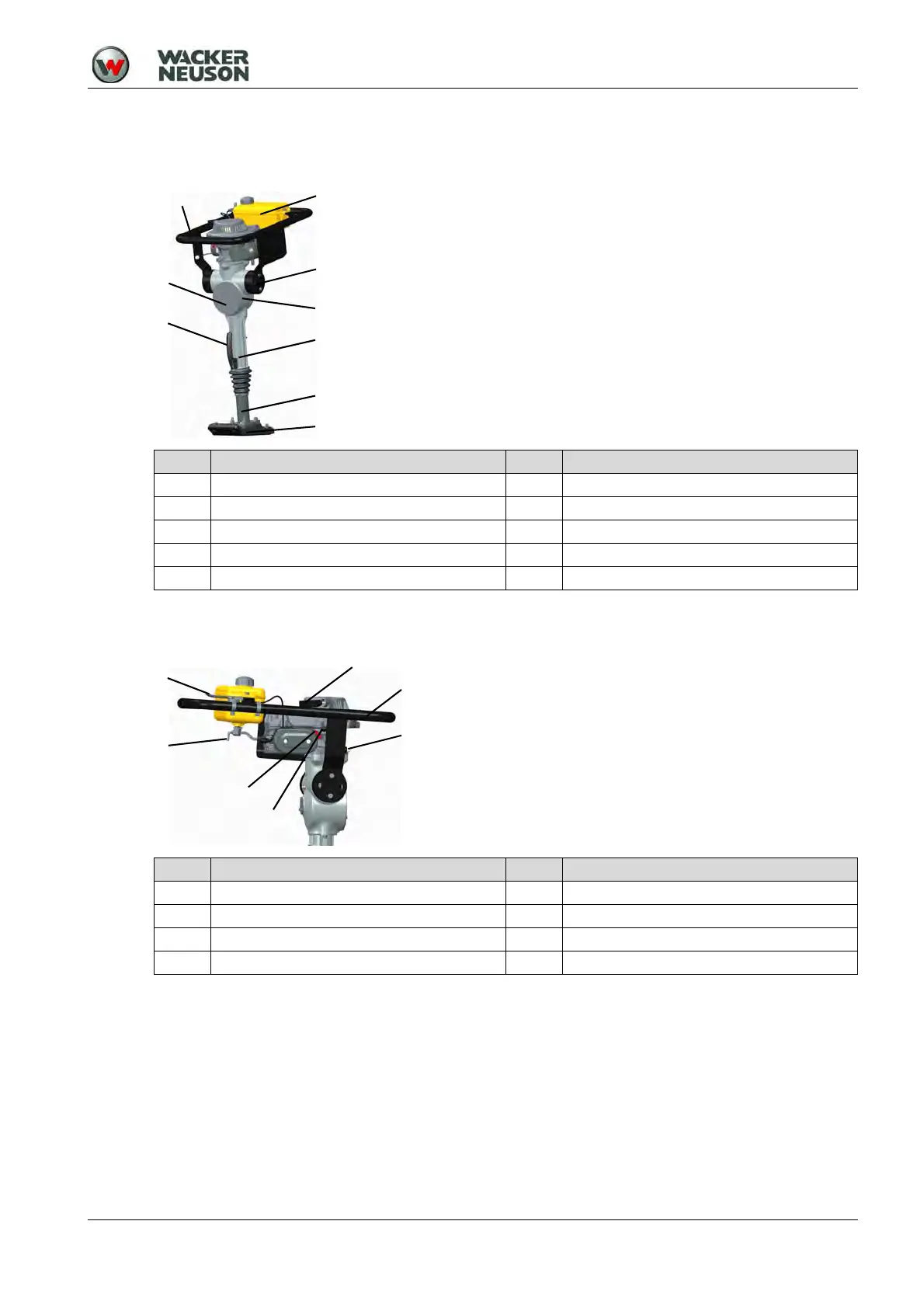

6.1 Components
6.2 Operator's controls
Handle
The handle makes it easier to work in a slanting position.
Choke
Additionally activate the choke when the engine is hot or cold to enrich the fuel-air mixture.
Fuel pump bellows
The fuel pump bellows serves to fill the fuel lines and the carburetor after the machine has not been used
for a longer period of time. The integrated return line prevents too much fuel from getting into the
carburetor when pumping occurs too frequently.
Item Designation Item Designation
1 Control handle 6 Ramming system
2 Handle 7 Ramming shoe
3 Vibration damper 8 Fuel tank
4 Guide cylinder 9 Nameplate
5Crankcase
Item Designation Item Designation
1 Control handle 5 Fuel pump bellows
2 Fuel cock 6 Choke
3 Gas throttle lever 7 Off switch
4 Starter rope
1
2
3
4
5
6
7
8
9
1
2
4
3
5
6
7
