6 Components and operator's controls
100_0202_cp_0006.fm 19
6 Components and operator's controls

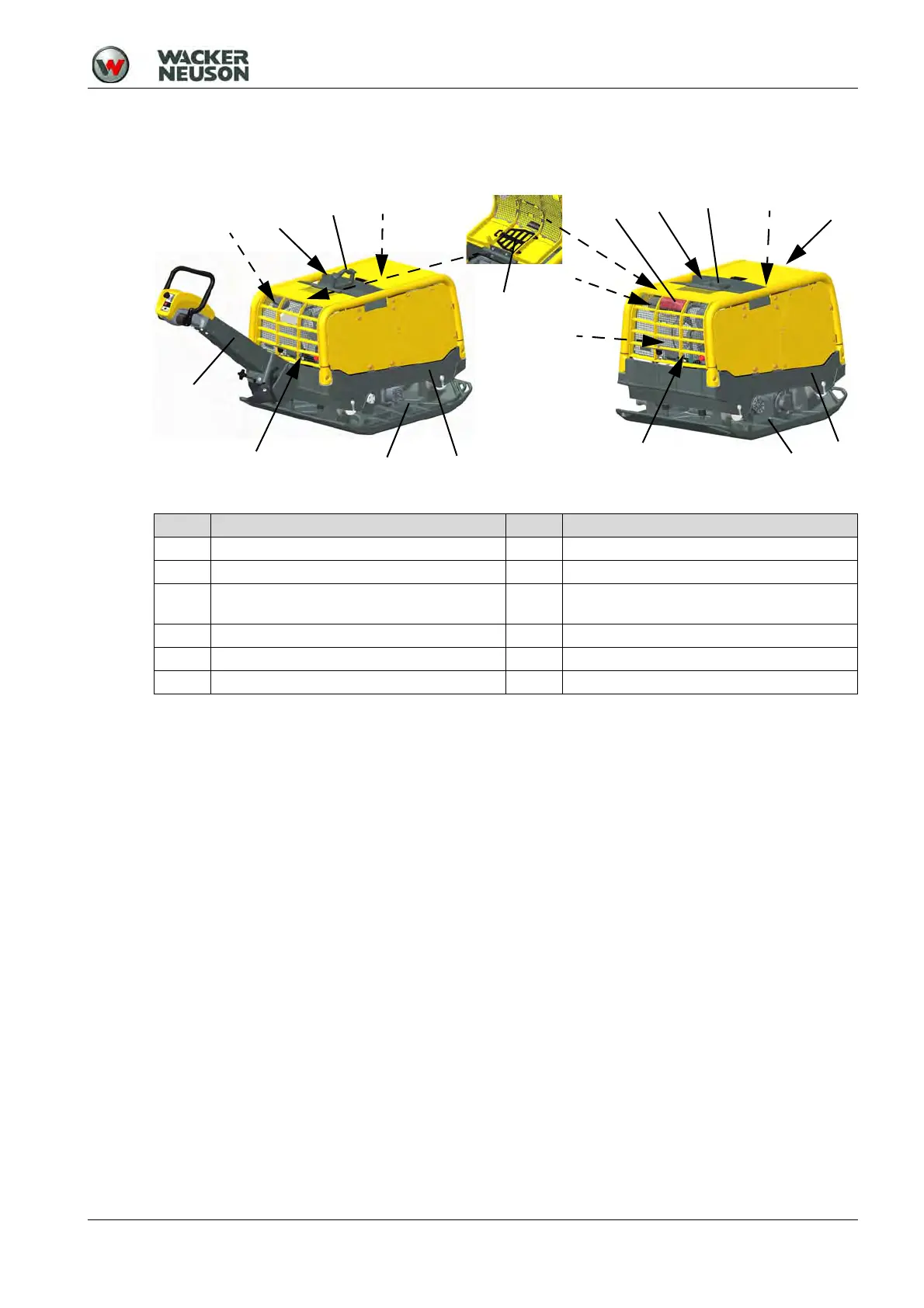

6.1 Components
Center pole
The center pole can be adjusted to the optimum working height.
Central lifting point
The central lifting point is used to lift the machine. When the overall height is a deciding factor, the central
lifting points can be folded.
Receiving units
On the remote controlled machine, there are two receiving units (front and rear) with integrated status
display. Depending on the position of the operator, the front or rear receiving unit receives the
commands of the remote controller via infrared signal.
The integrated status display uses lights and flashing signals to indicate the current operating status of
the machine.
To better distinguish between the front and rear of the machine, the receiving units have different colors.
Eyelet for padlock
The rear protective hood features a lug for attaching a padlock. The machine is thus protected against
unauthorized opening of the rear protective hood as well as unauthorized operation.
Bracket for remote control and charging cable
The bracket is used to store and charge the remote control unit as well as to protect it against damage
and theft.
Bracket for operator's manual
The bracket is used to store the operator's manual.
Item Designation Item Designation
1 Drive motor 7 Eyelet for padlock
2 Upper mass 8 Receiving units
3 Base plate 9 Bracket for remote control and charging
cable
4 Center pole 10 Bracket for operator's manual
5 Fuel tank 11 Nameplate
6 Central lifting point
2
3
1
5
6
7
11
4
1
2
3
5
6
7
8
8
9
11
10
