8.4.4 Read the Compatec display unit (optional)
This display roughly indicates the progress of the compaction.
The number of LEDs lit is proportional to the soil density, more illuminated LEDs corresponds to a
higher soil density.
8.5 Decommissioning
8.5.1 Decommissioning the machine (center pole)
NOTICE
The functionality of the machine protection installation is integrated. See the chapter
Machine protection installation.
NOTICE
The brightness of the LED automatically adjusts to the light conditions of the working area.
NOTICE
It is possible to detect non-compactable material if the spot is longer than one meter.
In the case of abrupt change from high to low-compacted soil (or vice versa), there is a
slow increase or decrease of the LEDs.
NOTICE
The LED bar utilization of the Compatec display unit is tailored to soils that can be
compacted easily. A soil density that is well beyond the achievable values of soils that can
be compacted easily is signaled by the flashing of all LEDs.
NOTICE
If the machine is operated in reduced power mode
Preselected using the slow/fast rocker switch or button.
Overload setting in the configuration menu.
No LEDs of the Compatec display unit are illuminated.

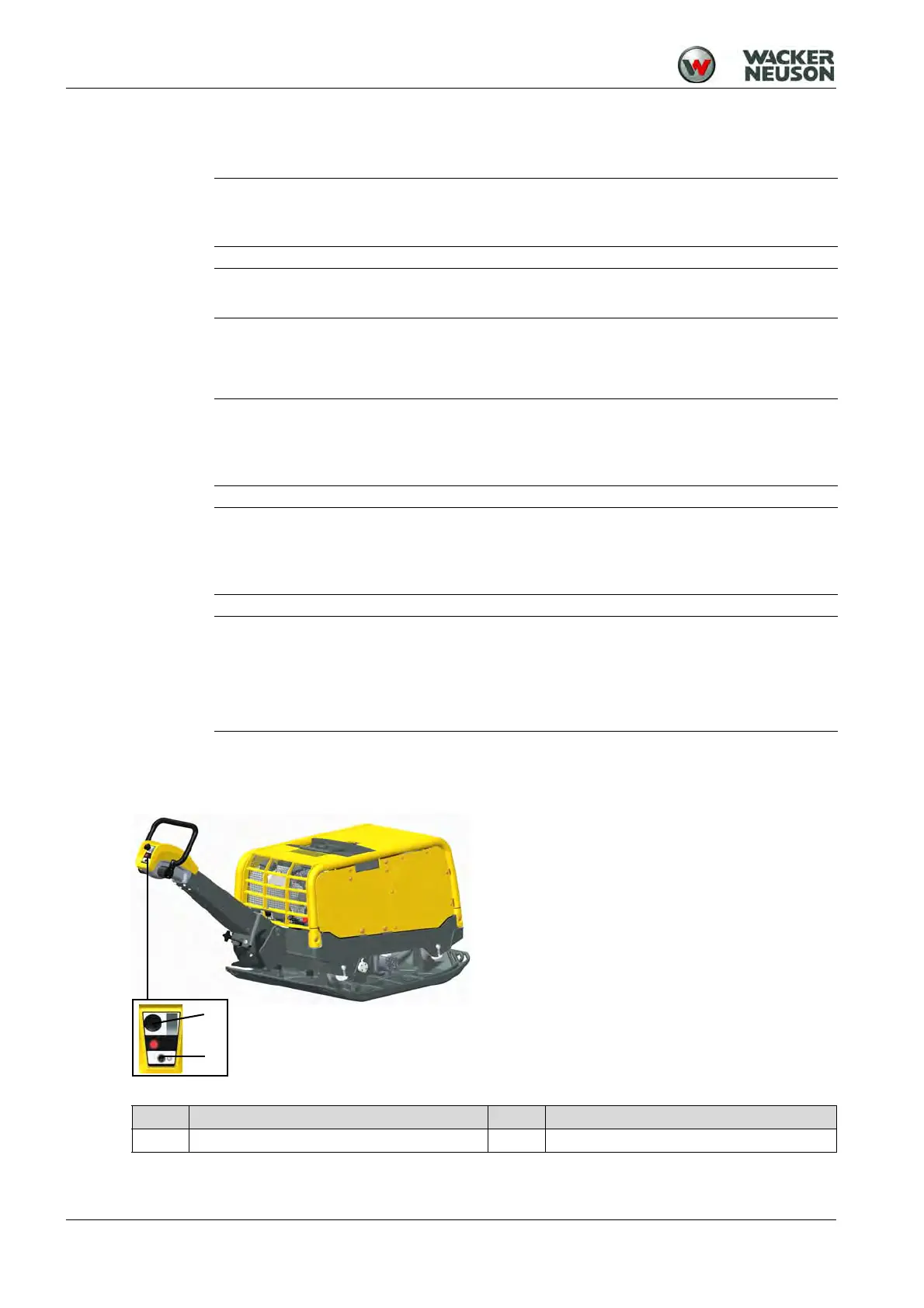

Item Designation Item Designation
1 Vibratory rammer 2 Start button
