CLEANING THE AIR VALVE TUBE
REPLACING THE FILTER
MAINTENANCE
14
EN
tention
Before every use, you should inspect the air lter
in the turbine to see if it is excessively dirty. If it
is dirty, follow these steps to replace it.
Never operate your unit without the air lters.
Dirt could be sucked in and interfere with the
function of the unit.

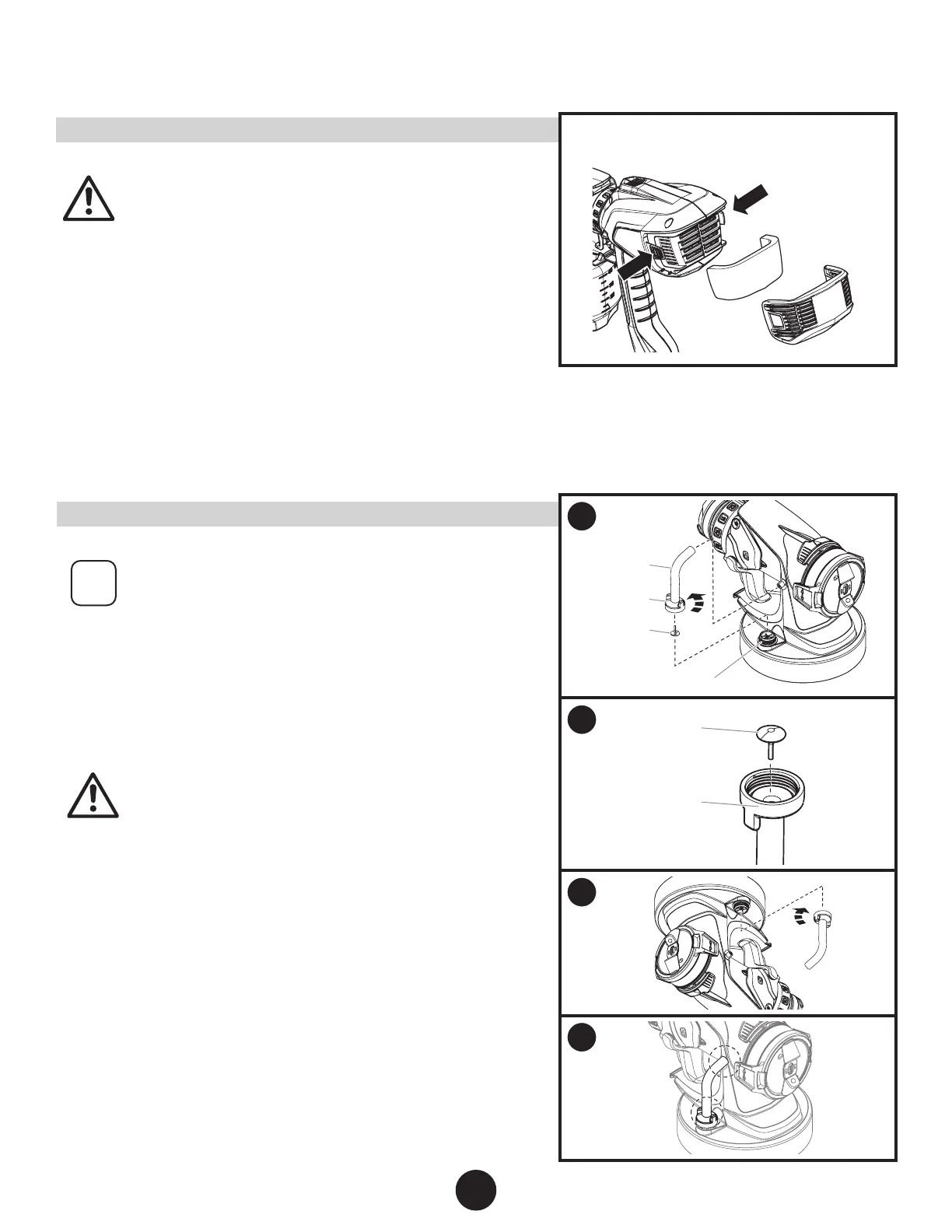

1. Press the tabs at the rear of the turbine. Slide the rear housing
o of the back of the turbine.
2. Remove the dirty lter from the turbine and replace with a new
one. The smooth side of the air lter must be placed toward
the turbine.
Secure the cover back onto the turbine.
If spray material ever enters the air valve tube,
follow the steps below.
1. Pull the air tube (a) at the top from the nozzle. Screw o the
valve cover (b).
Remove the valve seal (c). Clean all the parts carefully. Make
sure to remove any material from valve seal housing area (d).
The air tube and valve seal (c) are only solvent-
resistant to a limited extent. Do not immerse in
solvent, only wipe.
2. Place the valve seal (c) in the valve cover (b) with the pin facing
into the tube. Installing the valve seal into the valve cover will
be much easier if the valve cover is inverted.
3. Turn the nozzle upside down and screw on the valve cover
(with valve seal inside) from underneath. Turning the nozzle
upside down will prevent the valve seal from falling out of the
valve cover during reinstallation.
4. Place the air tube on the valve cover and on the nipple at the
nozzle.
