Maintenance

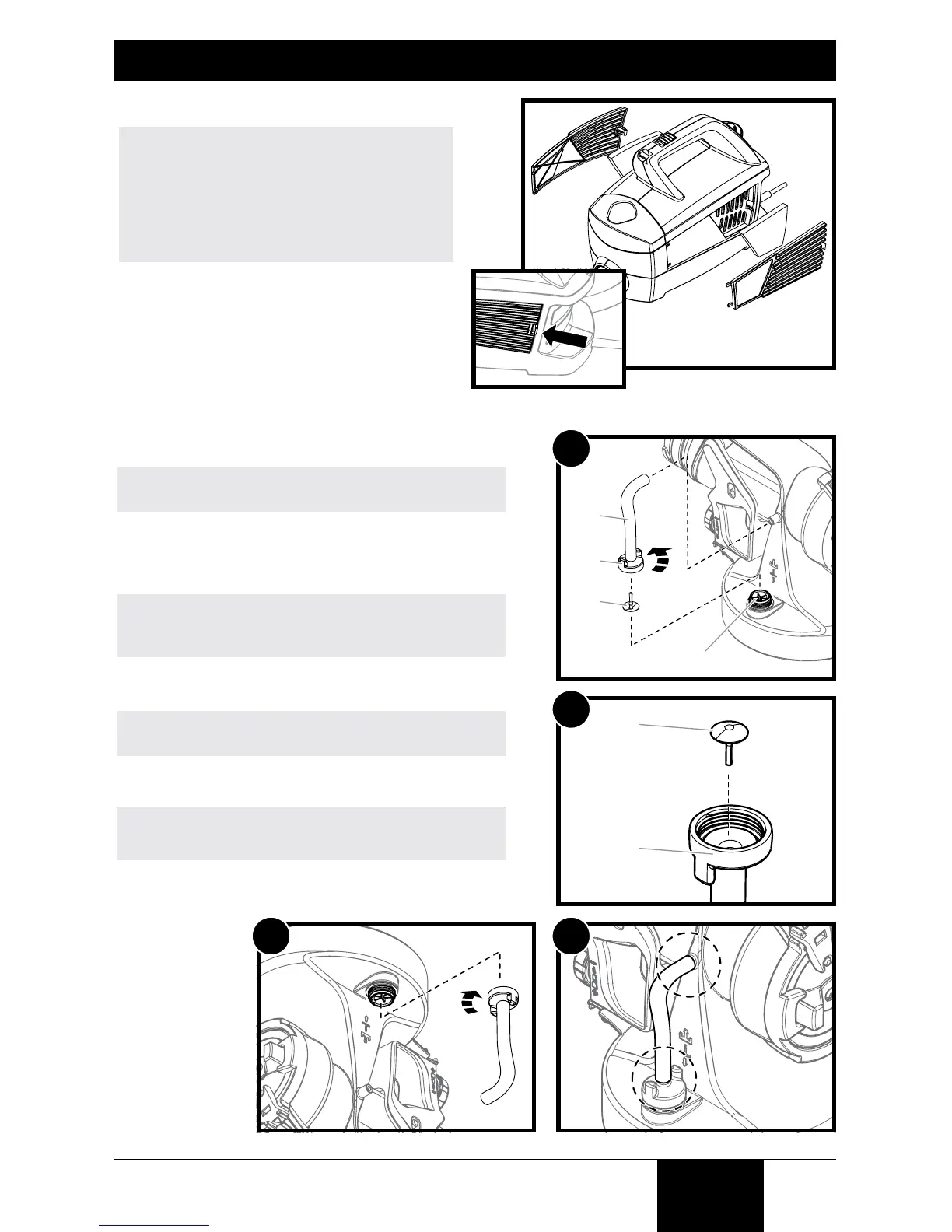

Cleaning the Filters:
IMPORTANT: Before every use, you should
inspect the air lters in the turbine to see if it
is excessively dirty. If it is dirty, follow these
steps to replace it.
IMPORTANT: Never operate your unit
without the air lters. Dirt could be sucked in
and interfere with the function of the unit.
1. Press the tabs on each side of the turbine to
remove the lter covers.
2. Remove the dirty lters from the turbine and
replace with new ones. The smooth side of the
air lter must be placed toward the turbine.
Secure the covers back onto the turbine.
Cleaning the Air Valve Tube
Note: If paint has entered the air tube, proceed as
follows.
1. Pull the air tube (a) at the top from the nozzle. Screw
o the valve cover (b). Remove the valve seal (c).
Clean all the parts carefully. Make sure to remove any
material from valve seal housing area (d).
IMPORTANT: The air tube and valve seal (c) are only
solvent-resistant to a limited extent. Do not immerse
in solvent, only wipe.
2. Place the valve seal (c) in the valve cover (b) with the
pin facing into the tube.
Note: Installing the valve seal into the valve cover will
be much easier if the valve cover is inverted.
3. Turn the nozzle upside down and screw on the valve
cover (with valve seal inside) from underneath.
Note: Turning the nozzle upside down will prevent
the valve seal from falling out of the valve cover during
reinstallation.
4. Place the air tube on the valve cover and on the nipple
at the nozzle.
