Cleaning the unit (shutting down)

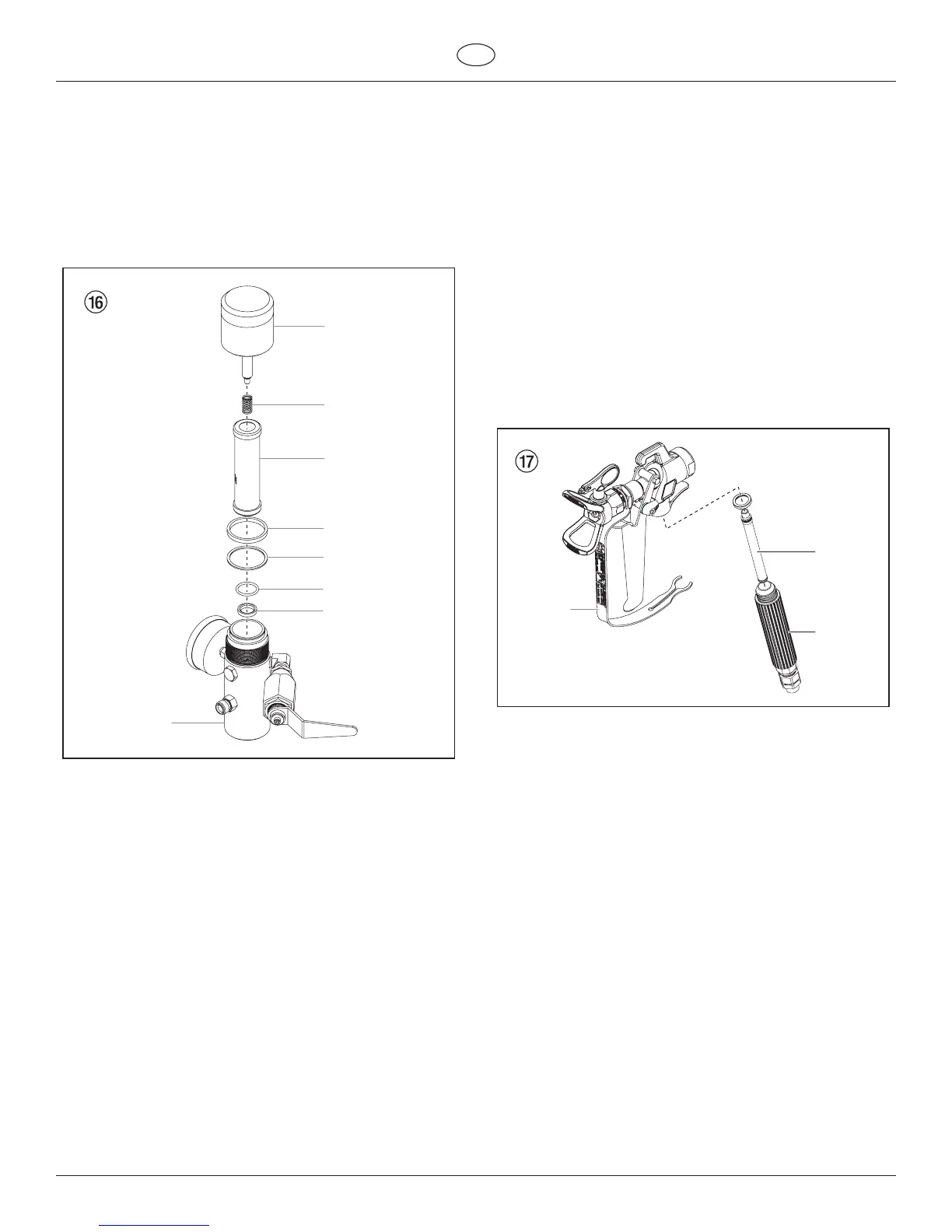

Assembly
1. Insert valve seat (7) with the ball seat surface facing up
into the housing (8).
2. Insert O-ring (6) into the housing (8).
 3. Insertltercartridge(3).
4. Place thin seal (5) on threaded section of housing (8).
5. Place thick seal (4) on top of thin seal (5).
6. Slide pressure spring (2) onto housing cover pin (2).
7. Screw on housing cover (1) and tighten by hand.
1
2
3
4
5
6
7
8
8.4 Cleaning Airless spray gun
– Rinse Airless spray gun with an appropriate cleaning
agent.
– Clean tip thoroughly with appropriate cleaning agent so
that no coating material residue remains.
– Thoroughly clean the outside of the Airless spray gun.
Intake lter in Airless spray gun
Dismounting (g. 17)
1. Pull protective guard (1) forward vigorously.
2. Screw handle (2) out of the gun housing. Remove intake
lter(3).
 3. Intakeltercongestedordefective–replace.
Mounting
 1. Placeintakelter(3)withthelongconeintothegun
housing.
2. Screw handle (2) into the gun housing and tight en.
3. Snap in protective guard (1).
