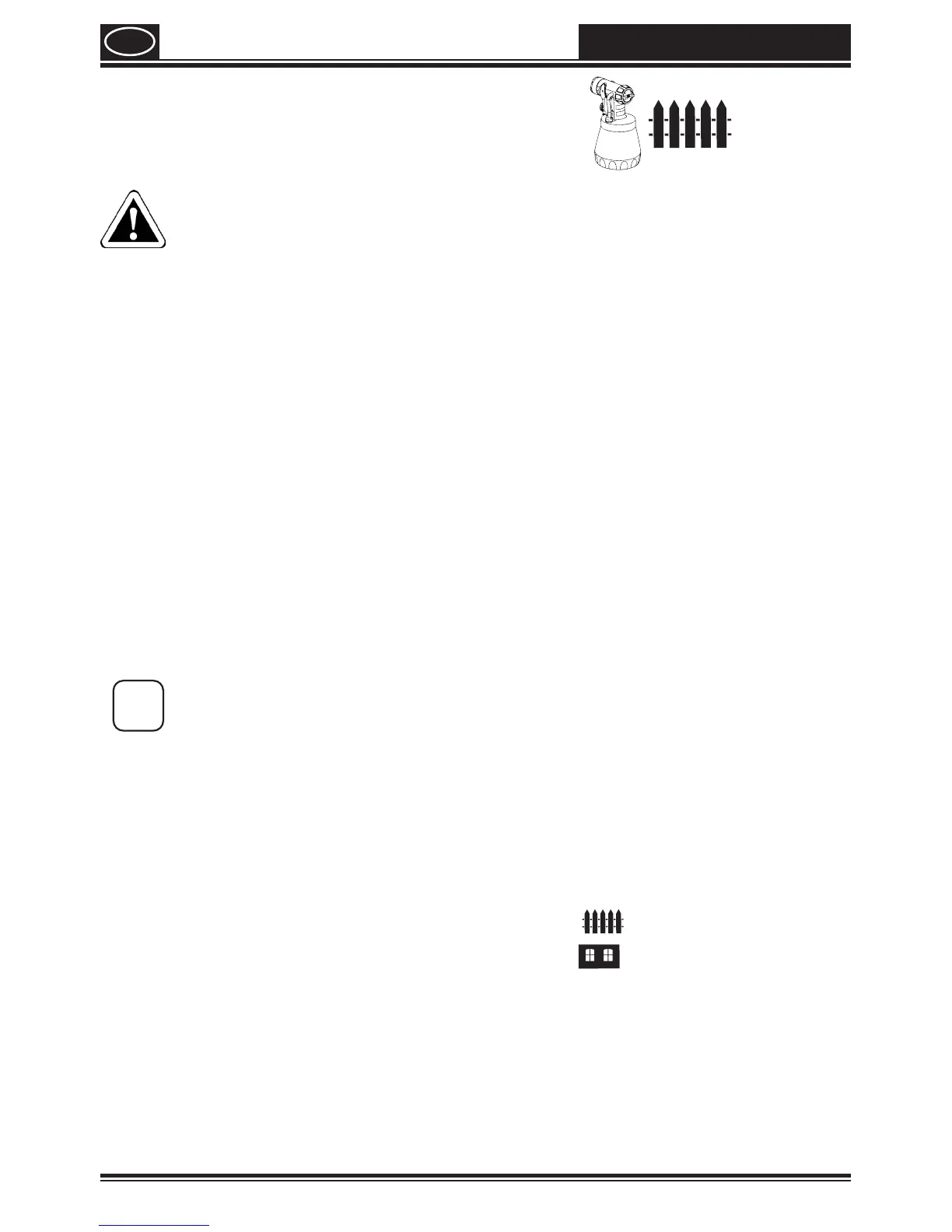

12. Selecting the Spray Setting
(Standard spray attachment)
WARNING! Danger of injury! Never pull the trigger guard while adjusting
the air cap.
With the union nut (g. 6, 1) slightly unscrewed, turn the air cap (2) to the desired
spraysetting position (arrow). Then tighten the union nut.
Fig. 7 A = vertical at jet
for horizontal surfaces
Fig. 7 B = horizontal at jet
for vertical surfaces
Fig. 7 C = circular jet
for corners, edges and hard-to-reach surfaces
13. Adjusting the Material Volume (Fig. 8)
Set the material volume by turning the regulator on the trigger guard of the spray gun.
lower material volume turn anti-clockwise (-)
higher material volume turn clockwise (+)
14. Setting the Amount of Air (Fig. 9)
i
Depending on the viscosity of the material to be sprayed and the nish of
the object to be coated, it may be advisable to vary the amount of air. Very
low viscosity materials, such as watery glazes do not have to be atomised
with the maximum amount of air. In this case it is advisable to reduce
the amount of air and thus minimize the spray vapour.
This also applies for the use of the Detail and Corner&Reach spray attachment
(accessory).
Turn the air quantity regulator (g. 9.1) to the required position.
thin paint
Wood & Metal
thick paint (e.g. interior wall paint)
Wall & Ceiling
