Weiss
Enginering
Ltd.
DSP501/DSP502
roomy
sound
scape,
similar
to
loudspeaker
reproduction
in
a
room.
The
Crossfeed
Headphone
plugin
allows
adjusting
the
Amount
level
between
0
and
100
in
order
to
achieve
your
preferential
setting.
A
higher
Amount
results
in
stronger
impact
of
the
plugin’s
effect
on
the
played
back
audio.
See
section
4.8
for
further
details
about
this
plugin.

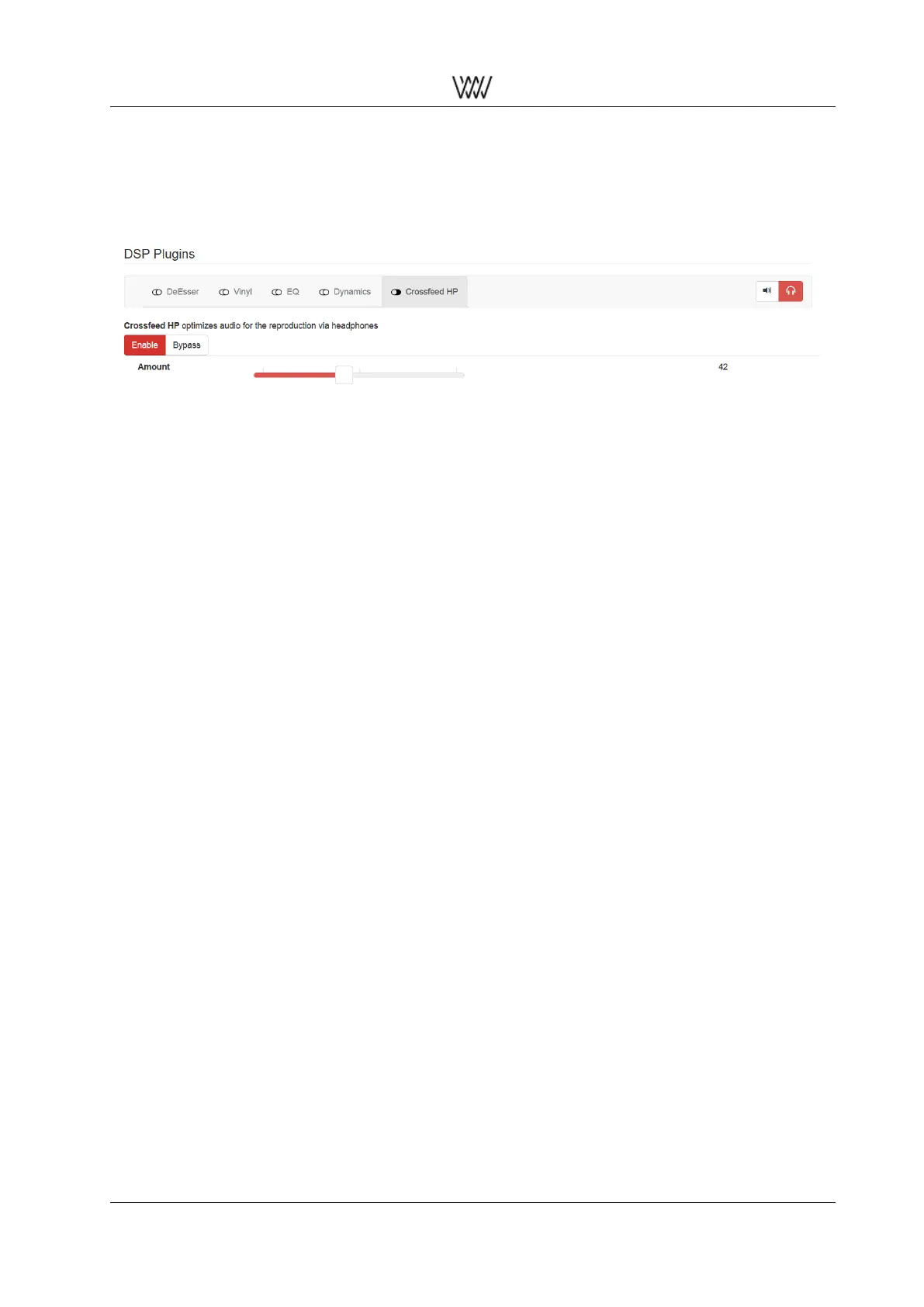

Figure
13:
Crossfeed
HP
plugin
User
Manual
and
15
White
Papers
16
18
Table of Contents
Table of Contents
2
The DSP501
3
The DSP501/DSP502 Overview
3
The DSP502
3
The Three Interfaces
4
The LCD
4
The IR Remote Control
5
The Web Interface
5
Basic Introduction
5
IR Remote Control
5
Web Interface Overview
6
Active Output
7
Essing
7
Esser Plugin
7
The Vinyl Emulator
8
Vinyl Plugin
8
Equalizer Plugin
9
The Equalizer (EQ)
9
Room EQ Plugin
10
The Room Equalizer
10
Headphone EQ
14
Loudness EQ
14
Headphone EQ Plugin
14
Dynamics Adaption
15
Loudness EQ Plugin
15
XTC Plugin
16
Crossfeed Headphone
16
The Crosstalk Cancellation (XTC)
16
Crossfeed HP Plugin
17
Snapshot Storage
18
Snapshots Maintenance
18
Global Presets
19
Saving a New Snapshot
19
Global Preset Composer Matrix
19
Firmware Update
20
Firmware Update/ Download
20
M/S Control
20
Technical Specification
21
Engineering Drawings of the DSP501, DSP502 and the IR Remote Control
21
Signal Processing Algorithms
23
The Weiss Parametric Equalizer (EQ)
23
EQ Peak and Notch Filters
23
Low Shelf and High Shelf Filter
23
Low Pass and High Pass Filter Scheme
24
Instruments' Spectral Treatment Overview
24
The Weiss Room Equalizer
25
The Weiss Crosstalk Cancellation (XTC)
25
Dummy Head Microphone
25
The Weiss Vinyl Emulator
26
XTC Scheme
26
Block Diagramm of the Weiss Vinyl Emulator
27
Digital Level Control and Dithering
28
Image Processing: Original (Left), Quantized Without Dithering (Middle), Quantized with Dither
29
The Weiss Dynamics Adaption
29
Dynamics Adaption Plugin
29
Block Diagram of the Weiss Loudness Normalization
30
Visualization of Relation between Dynamic Level and Normalization Level
30
The Weiss De-Esser
31
Comparing Different Settings of the Dynamic Level, (Pink Floyd, Wish You Were Here, Live)
31
Block Diagramm of the Weiss De-Esser Plugin
32
Comparing Different Settings of the De-Esser User Parameter: A) Original; B) Amount -12 Db
32
Comparing Different Settings of the De-Esser User Parameter: C) Amount 0 Db; B) Amount 9 Db
33
The Weiss Crossfeed Headphone Algorithm
34
The Weiss Headphone Equalizer
35
Fictive Example of a Headphone Frequency Response Measurement (Red) and Its Correlated
35
The Schwede Loudness EQ
36
The Weiss M/S Control
36
Contact Information
37
List of Figures
38
