Welch Allyn PanOptic 11820 User Manual

5
Set-up Instructions

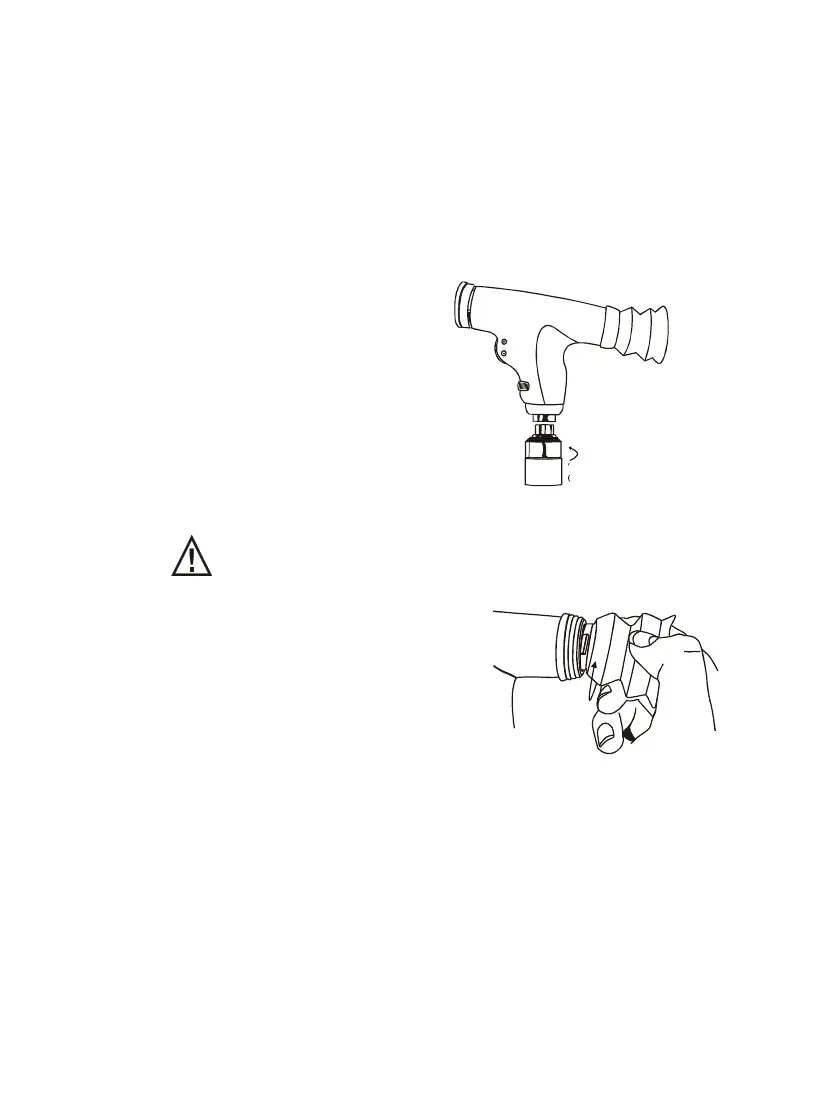

Attaching the
PanOptic
Ophthalmoscope head to a
Welch Allyn Power Source
Align cutouts in the PanOptic Ophthalmoscope base with lugs on
power source. (The PanOptic Ophthalmoscope fits all 3.5v Welch
Allyn power sources.) Push in slightly and turn 90 degrees.
Attaching the Patient Eyecup to
PanOptic
Use only PanOptic Patient Eyecups (part number 118092)
with this product.
Insert eyecup into the patient’s side
of the instrument. Push and twist in
one motion until you feel the two
“lock” together.
See “Accessory and Replacement
Parts List” on page 19 to reorder new
PanOptic Patient Eyecups.
TURN HANDLE
COUNTER-
CLOCKWISE
TWIST
