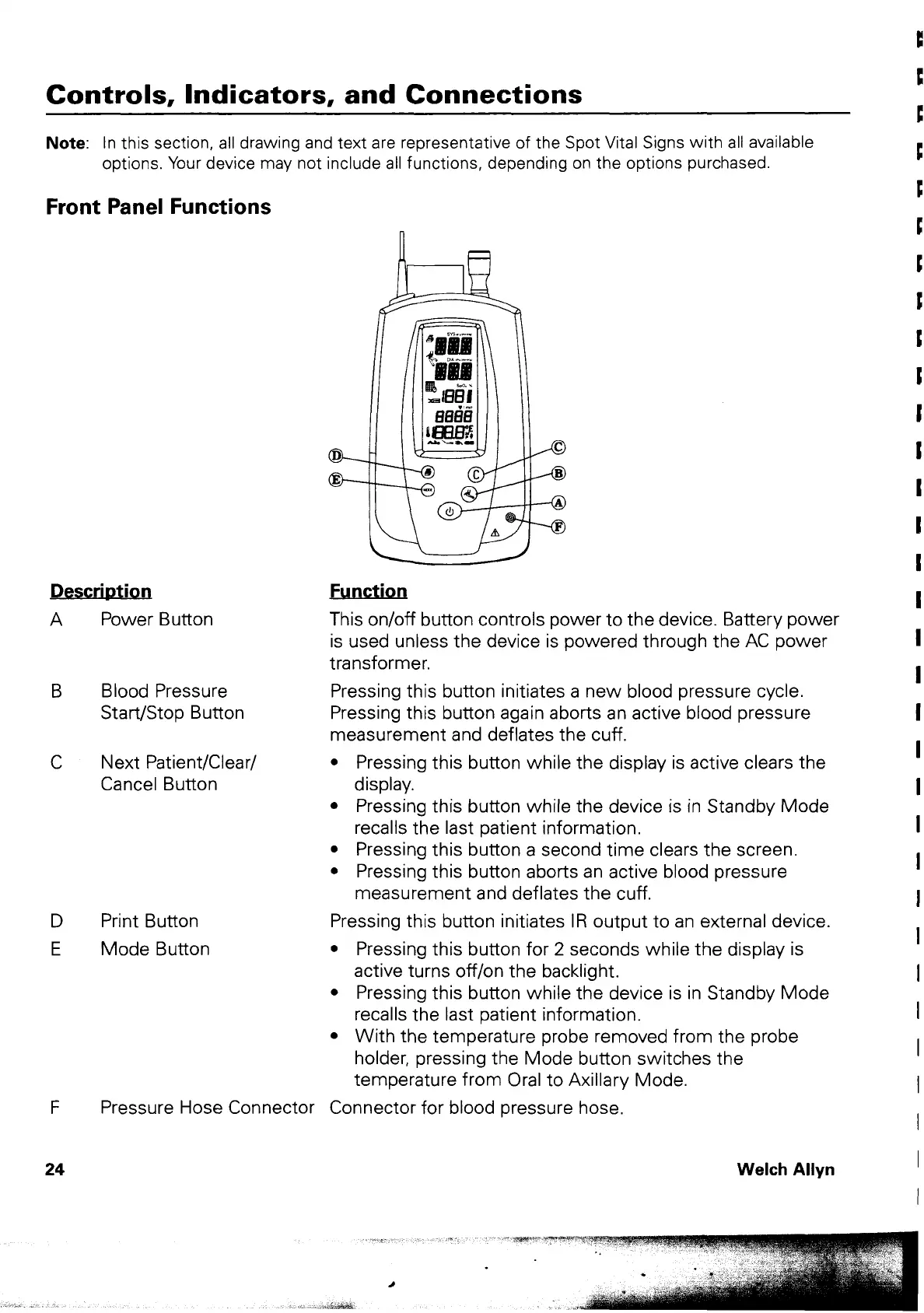

Controls, Indicators, and Connections
Note: In this section, all drawing and text are representative of the Spot Vital Signs with ali available
options. Your device may not include all functions, depending on the options purchased.
Front Panel Functions
Description
A Power Button This on/off button controls power to the device. Battery power
is used unless the device is powered through the AC power
transformer.
B Blood Pressure Pressing this button initiates a new blood pressure cycle.
Start/Stop Button Pressing this button again aborts an active blood pressure
measurement and deflates the cuff.
C Next Patient/Clear/ e Pressing this button while the display is active clears the
Cancel Button display.
e Pressing this button while the device is in Standby Mode
recalis the last patient information. |
Pressing this button a second time clears the screen. |
Pressing this button aborts an active blood pressure
measurement and deflates the cuff. |
D Print Button Pressing this button initiates IR output to an external device. |
E Mode Button e Pressing this button for 2 seconds while the display is
active turns off/on the backlight. |
e Pressing this button while the device is in Standby Mode
recalls the last patient information. |
e With the temperature probe removed from the probe |
holder, pressing the Mode button switches the
temperature from Oral to Axillary Mode. |
F Pressure Hose Connector Connector for blood pressure hose.
