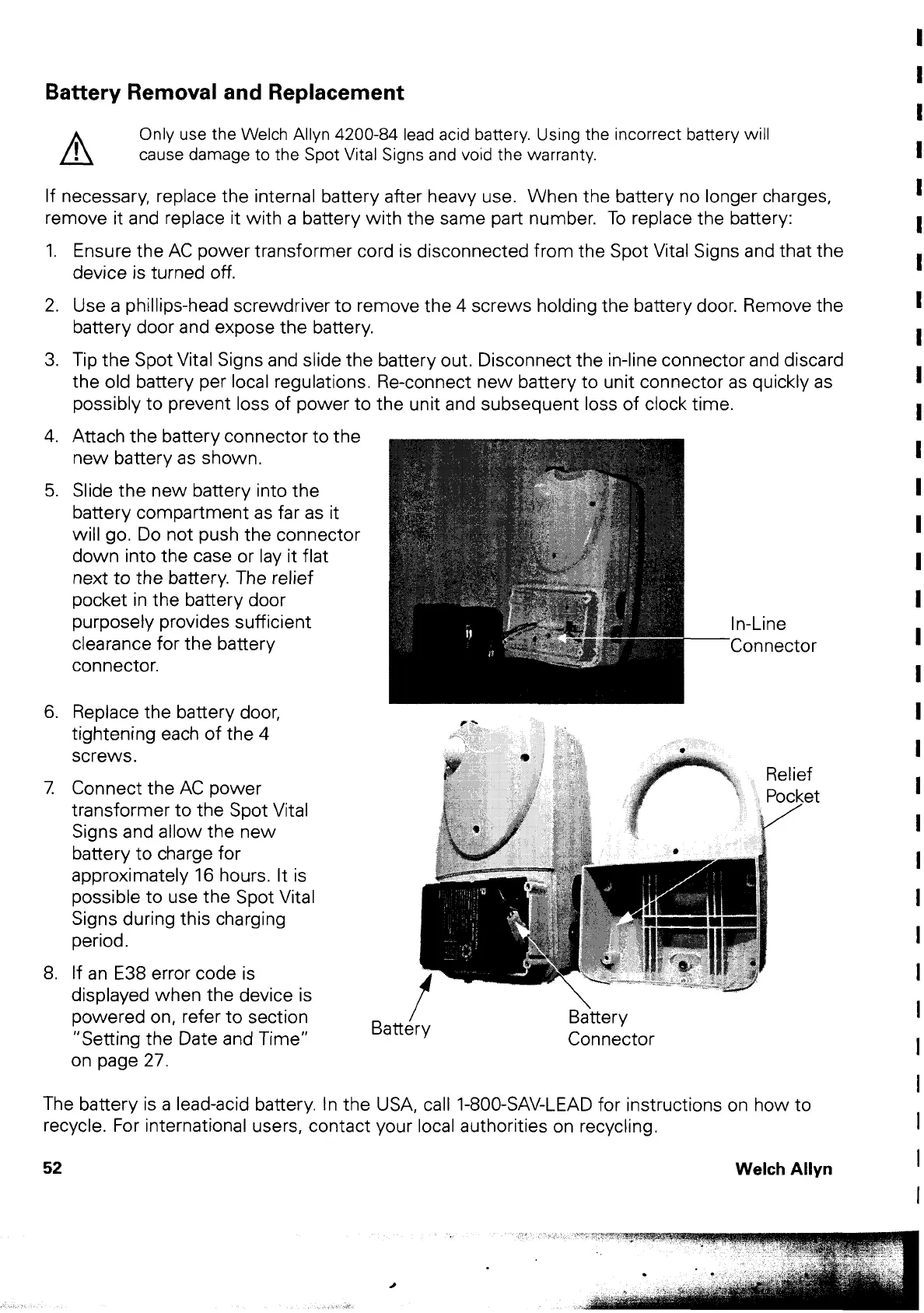

Battery
Removal
and
Replacement
Only
use
the
Welch
Allyn
4200-84
lead
acid
battery.
Using
the
incorrect
battery
will
A
cause
damage
to
the
Spot
Vital
Signs
and
void
the
warranty.
If
necessary,
replace
the
internal
battery
after
heavy
use.
When
the
battery
no
longer
charges,
remove
it
and
replace
it
with
a
battery
with
the
same
part
number.
To
replace
the
battery:
1.
Ensure
the
AC
power
transformer
cord
is
disconnected
from
the
Spot
Vital
Signs and
that
the
device
is
turned
off.
2.
Usea
phillips-head
screwdriver
to
remove
the
4
screws
holding
the
battery
door.
Remove
the
battery
door
and
expose
the
battery.
3.
Tip
the
Spot
Vital
Signs
and
slide
the
battery
out.
Disconnect
the
in-line
connector
and
discard
the
old
battery
per
local
regulations.
Re-connect
new
battery
to
unit
connector
as
quickly
as
possibly
to
prevent
loss
of
power
to
the
unit
and
subsequent
loss
of
clock
time.
4.
Attach
the
battery
connector
to
the
new
battery
as
shown.
5.
Slide
the
new
battery
into
the
battery
compartment
as
far
as
it
will
go.
Do
not
push
the
connector
down
into
the
case
or
lay
it
flat
next
to
the
battery.
The
relief
pocket
in
the
battery
door
purposely
provides
sufficient
clearance
for
the
battery
connector.
In-Line
Connector
6.
Replace
the
battery
door,
tightening
each
of
the
4
Screws.
Relief
Pocket
7.
Connect
the
AC
power
transformer
to
the
Spot
Vital
Signs
and
allow
the
new
battery
to
charge
for
approximately
16
hours.
It
is
possible
to
use
the
Spot
Vital
Signs
during
this
charging
period.
8.
If
an
E38
error
code
is
displayed
when
the
device
is
powered
on,
refer
to
section
“Setting
the
Date
and
Time”
on
page
27.
Battery
|
Battery
Connector
|
The
battery
is a
lead-acid
battery.
In
the
USA,
call
1-800-SAV-LEAD
for
instructions
on
how
to
recycle.
For
international
users,
contact
your
local
authorities
on
recycling.
|
52
Welch
Allyn
