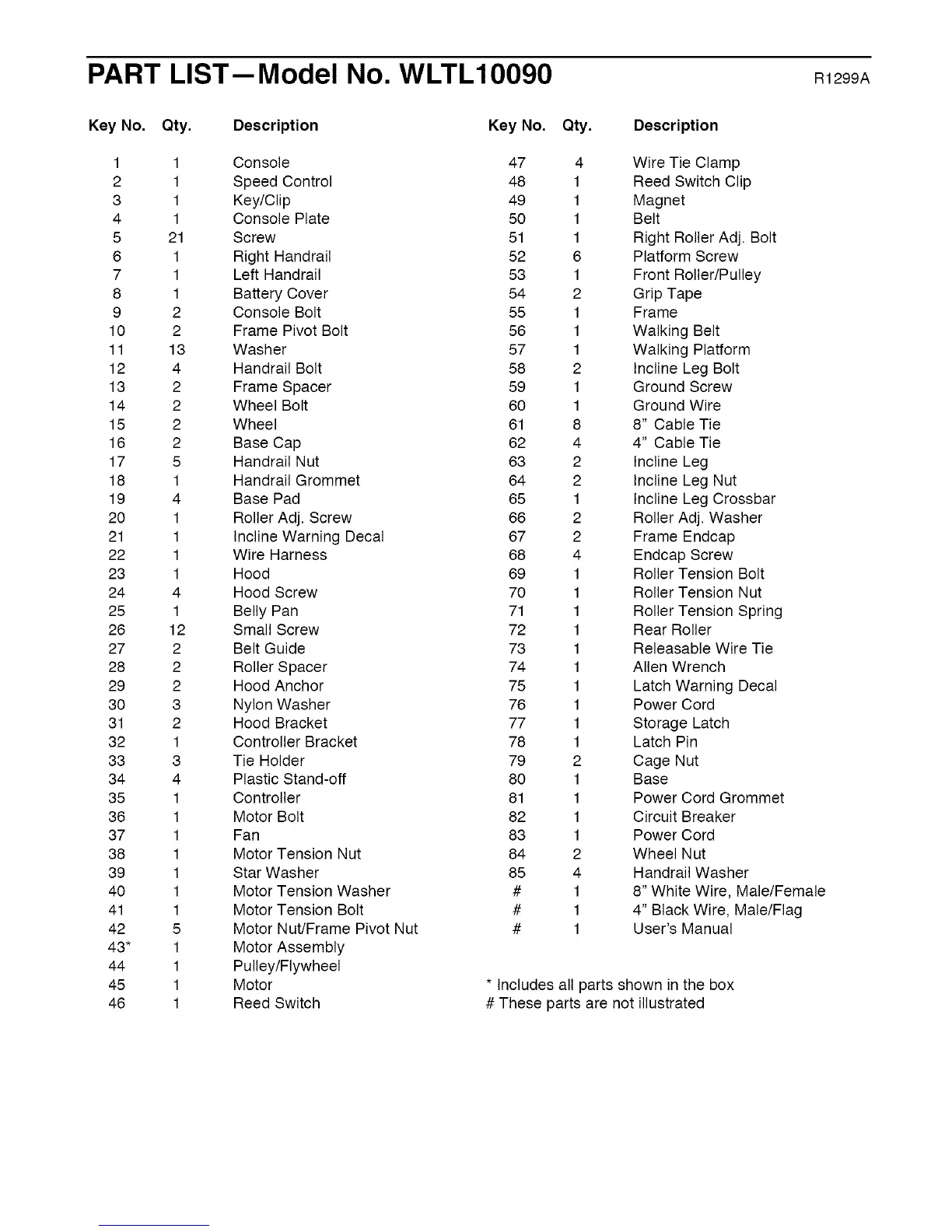

PART LIST-- Model No. WLTL10090 Rt299A
Key No, Qty, Description Key No,
1 1 Console 47
2 1 Speed Control 48
3 1 Key/Clip 49
4 1 Console Plate 50
5 21 Screw 51
6 1 Right Handrail 52
7 1 Left Handrail 53
8 1 Battery Cover 54
9 2 Console Bolt 55
10 2 Frame Pivot Bolt 56
11 13 Washer 57
12 4 Handrail Bolt 58
13 2 Frame Spacer 59
14 2 Wheel Bolt 60
15 2 Wheel 61
16 2 Base Cap 62
17 5 Handrail Nut 63
18 1 Handrail Grommet 64
19 4 Base Pad 65
20 1 Roller Adj. Screw 66
21 1 Incline Warning Decal 67
22 1 Wire Harness 68
23 1 Hood 69
24 4 Hood Screw 70
25 1 Belly Pan 71
26 12 Small Screw 72
27 2 Belt Guide 73
28 2 Roller Spacer 74
29 2 Hood Anchor 75
30 3 Nylon Washer 76
31 2 Hood Bracket 77
32 1 Controller Bracket 78
33 3 Tie Holder 79
34 4 Plastic Stand-off 80
35 1 Controller 81
36 1 Motor Bolt 82
37 1 Fan 83
38 1 Motor Tension Nut 84
39 1 Star Washer 85
40 1 Motor Tension Washer #
41 1 Motor Tension Bolt #
42 5 Motor Nut/Frame Pivot Nut #
43* 1 Motor Assembly
44 1 Pulley/Flywheel
45 1 Motor
46 1 Reed Switch
Qty, Description
4 Wire Tie Clamp
1 Reed Switch Clip
1 Magnet
1 Belt
1 Right Roller Adj. Bolt
6 Platform Screw
1 Front Roller/Pulley
2 Grip Tape
1 Frame
1 Walking Belt
1 Walking Platform
2 Incline Leg Bolt
1 Ground Screw
1 Ground Wire
8 8" Cable Tie
4 4" Cable Tie
2 Incline Leg
2 Incline Leg Nut
1 Incline Leg Crossbar
2 Roller Adj. Washer
2 Frame Endcap
4 Endcap Screw
1 Roller Tension Bolt
1 Roller Tension Nut
1 Roller Tension Spring
1 Rear Roller
1 Releasable Wire Tie
1 Allen Wrench
1 Latch Warning Decal
1 Power Cord
1 Storage Latch
1 Latch Pin
2 Cage Nut
1 Base
1 Power Cord Grommet
1 Circuit Breaker
1 Power Cord
2 Wheel Nut
4 Handrail Washer
1 8" White Wire, Male/Female
1 4" Black Wire, Male/Flag
1 User's Manual
* Includes all parts shown in the box
# These parts are not illustrated
