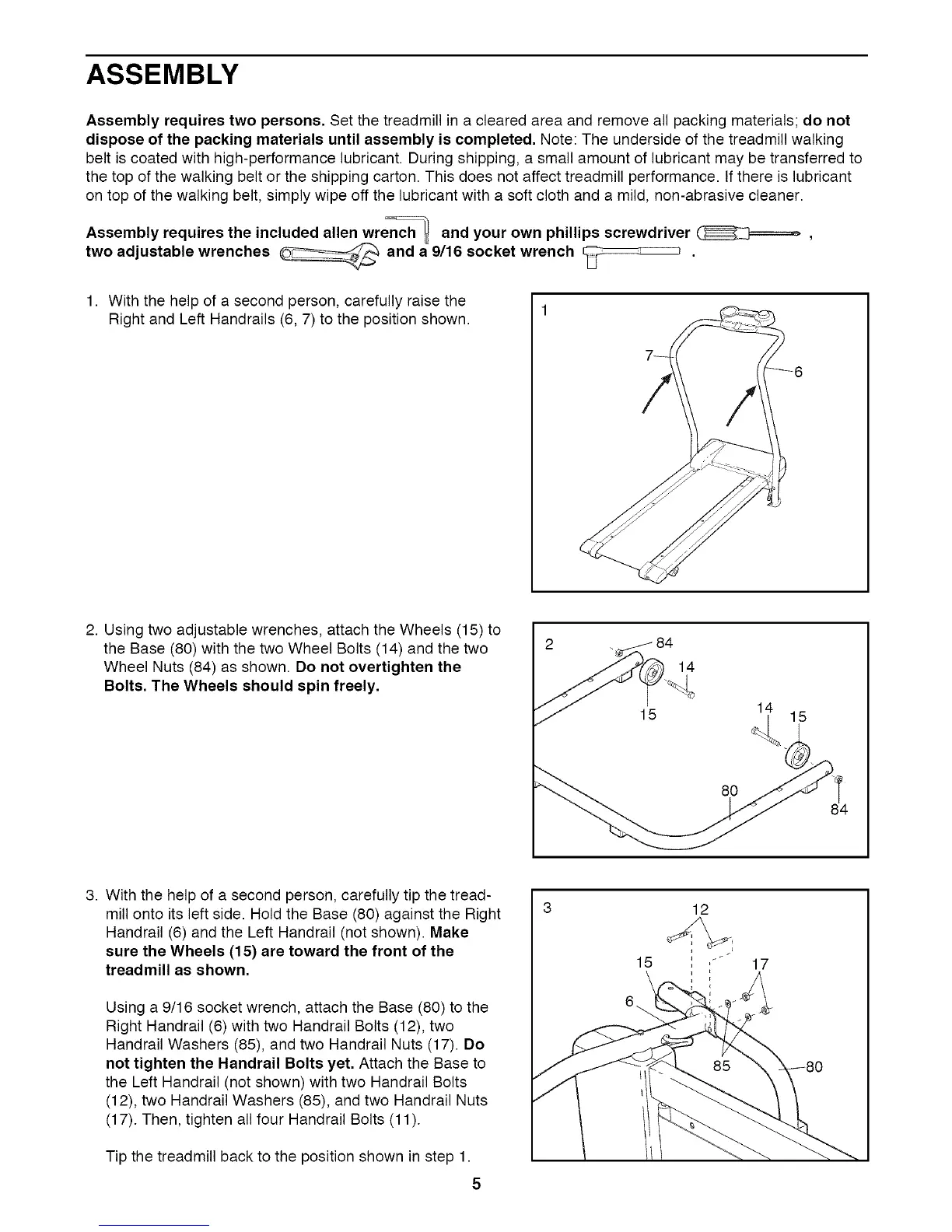

ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to
the top of the walking belt or the shipping carton. This does not affect treadmill performance. If there is lubricant
on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wre_ and your own phillips screwdriver (_ ,
two adjustable wrenches _---_/_ and a 9/16 socket wrench _
LJ
With the help of a second person, carefully raise the
Right and Left Handrails (6, 7) to the position shown.
2. Using two adjustable wrenches, attach the Wheels (15) to
the Base (80) with the two Wheel Bolts (14) and the two
Wheel Nuts (84) as shown. Do not overtighten the
Bolts, The Wheels should spin freely,
84
15
14
8O
14
15
84
3. With the help of a second person, carefully tip the tread-
mill onto its left side. Hold the Base (80) against the Right
Handrail (6) and the Left Handrail (not shown). Make
sure the Wheels (15) are toward the front of the
treadmill as shown,
Using a 9/16 socket wrench, attach the Base (80) to the
Right Handrail (6) with two Handrail Bolts (12), two
Handrail Washers (85), and two Handrail Nuts (17). Do
not tighten the Handrail Bolts yet. Attach the Base to
the Left Handrail (not shown) with two Handrail Bolts
(12), two Handrail Washers (85), and two Handrail Nuts
(17). Then, tighten all four Handrail Bolts (11).
Tip the treadmill back to the position shown in step 1.
5
12
17
To Next Page
