3-8
Disassembly and Reassembly
Service Manual

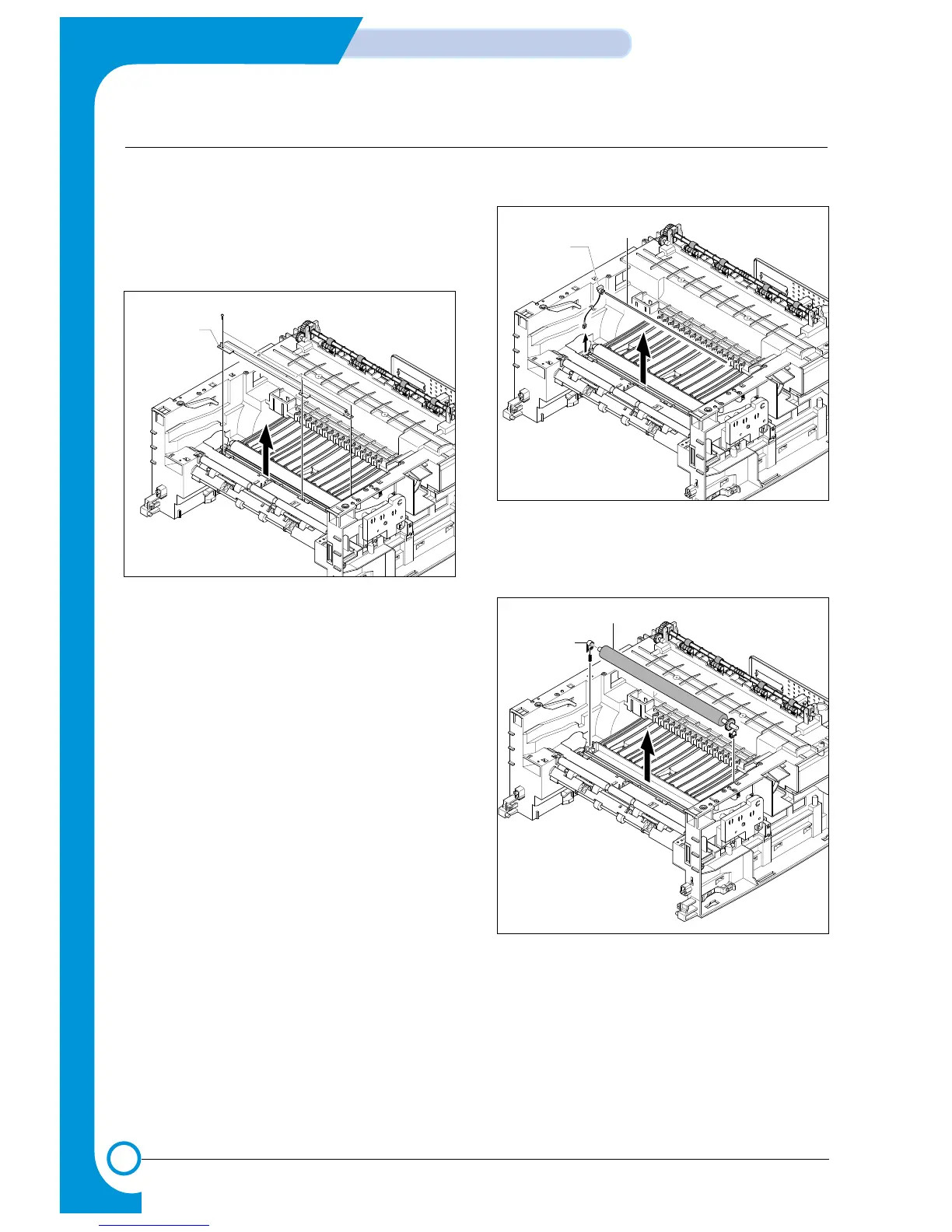

3.11 Transfer Roller
1. Before you remove the Fuser, you should
remove:
- Top Cover(see page 3-2)
- LSU(see page 3-4)
2. Remove three screws and take the Transfer
Earth out.
3. Unplug the PTL Holder Connector, then remove
the PTL Holder and PTL Lens, as shown below.
4. Unlatch the Bush and remove it. Then lift the
Transfer Roller out, as shown below.
To Next Page
