Xerox PHASER 3435 Service Manual

Repairs and Adjustments
4-48 5/08 Phaser 3435
3. To remove the MP Pick Up Assembly, first lift the notch attached to the left side Stopper so
that it's slide the right to left from the Shaft, then left side Idler slid the right to left from the
Shaft and take out the MP Pick Up Assembly, as shown below.

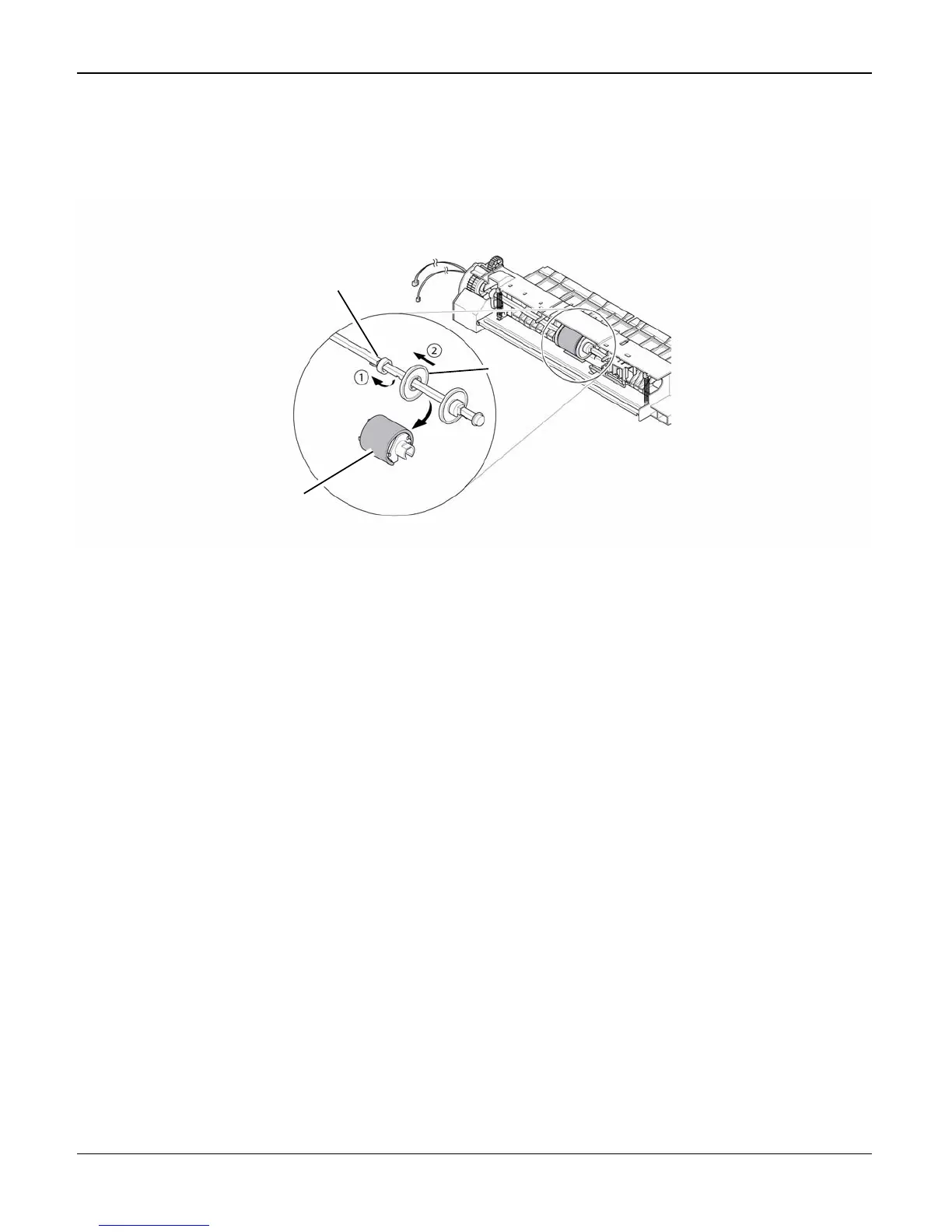

Figure 2
Idler
Stopper
MP pick up assembly
MPF housing

Xerox PHASER 3435 Specifications

General

Color	No
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Internal memory	64 MB
Sound power level (standby)	25 dB
Total input capacity	300 sheets
Total output capacity	150 sheets
Maximum input capacity	550 sheets
Media weight (tray 1)	60 - 163 gsm
Paper tray media types	Envelopes
Non-ISO print media sizes	Executive (184 x 267mm), index card, Letter (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Network ready	Yes
Authentication method	IP filtering, 802.1x
Power consumption (active)	526 W
Maximum operating temperature range (T-T)	10 - 32 °C
Maximum duty cycle	80000 pages per month
Power consumption (standby)	36 W
Power consumption (PowerSave)	11 W
Operating temperature (T-T)	50 - 90 °F
Operating relative humidity (H-H)	20 - 80 %
Certification	CB Report (IEC 60950-1/EN 60950-1), Certified to UL 60950-1/CSA 60950-1-03, 1st Edition, CE Marked, EMC Directive 2004/108/EC, FCC Part 15, Class B, Low Voltage Directive 2006/95/EC, R&TTE Directive 1999/5/EC, RoHS Directive 2002/95/EC
